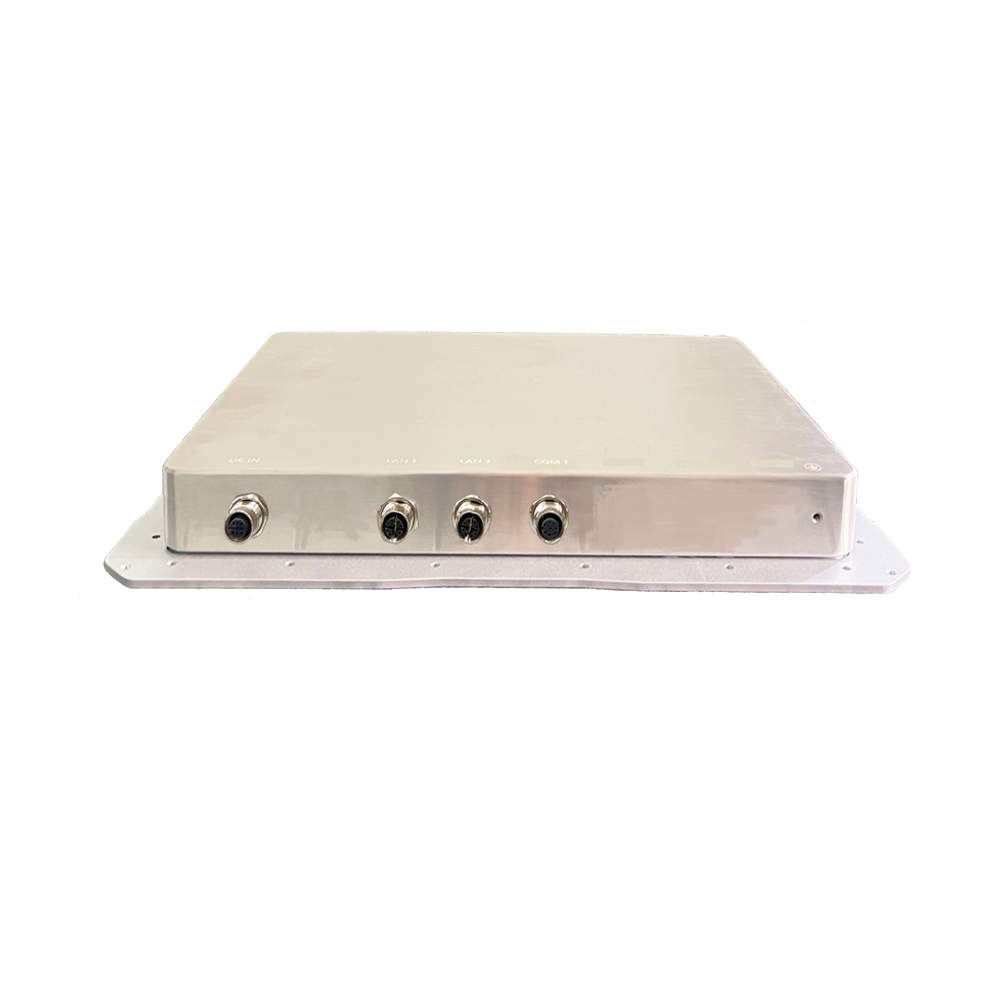

All-around IP67 Rating Protect Dust and WaterFull Stainless Steel Enclosure with SUS 304Supports 1 x VGA by M12 ConnectorTouch Interface: 1 x USB and 1 x COM by M12 ConnectorSupports 9~48V DC Power Input by M12 Connector-10°C ~ 60°C Operating TemperatureFood & Beverage ProcessingPharmaceutical & Medical IndustryHospitality & Catering ServiceChemical Critical EnvironmentAnimal Feed Production Facility |
Model |
WVM-2100 |
|
|
Video Interface |
VGA |
1 x VGA, Max Resolution 1920 x 1200 (M12 Connector) |
|
Touch Interface |
USB |
1 x USB2.0 (M12 Connector) |
|
Serial Port |
2 x RS232 (M12 Connector) |
|
|
Power |
Power Supply Voltage |
9~48V DC Power Input |
|
Power Connector Type |
M12 Connector |
|
|
Power Adapter (Optional) |
AC/DC 12V/5A 60W Power Adapter |
|
|
Protection |
Over Voltage Protection (OVP) up to 52V Over Current Protection (OCP) up to 20A Reverser Voltage Protection (RVP) up to -48V |
|
|
Environment |
Operating Temperature |
-10°C~60°C |
|
Storage Temperature |
-20°C~70°C |
|
|
Humidity |
10%~80%, Non-condensing |
|
|
Vibration |
1.5Grms, 5-500Hz, 3Axis |
|
|
Shock |
20Grms, Half-sine 11ms |
|
|
General |
Certification |
CE/FCC Class A |
|
Ingress Protection |
IP67 Full System |
|
|
Thermal Dissipation |
Fanless System |
|
|
Material |
SUS 304 Stainless Steel |
|
|
Dimensions (W x D x H) |
371 x 286 x 44mm |
|
|
Net Weight |
3.16Kg |
|
Ordering Information
| Part No. | Description |
| WVM-2100 |
Stainless Steel Video Module, M12 connectors for 1 x VGA, 1 x USB Touch Interface, 1 x COM Touch Interface, DC 9~48V |
Packing List
| Description | |
| 1x WVM-2100 |
Optional Items
Part No.
Description
APW-60M12V-01
12V, 60W, 5A, 5-pin M12 Connector (US)
APW-60M12V-02
12V, 60W, 5A, 5-pin M12 Connector (EU)
AKT-VGA2M12-M
M12 Connector to Touch Cable, 2m
AKT-TOU2M12
M12 Connector to Touch Cable, 2m
