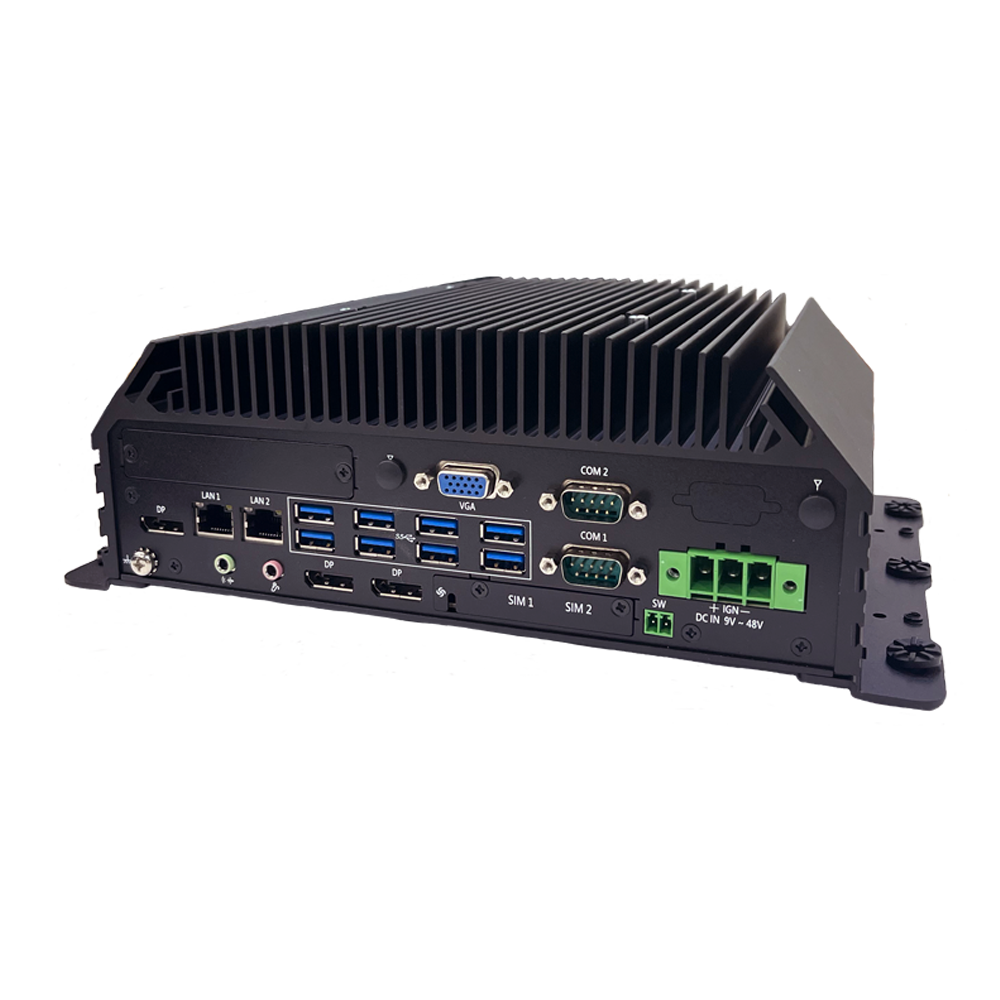

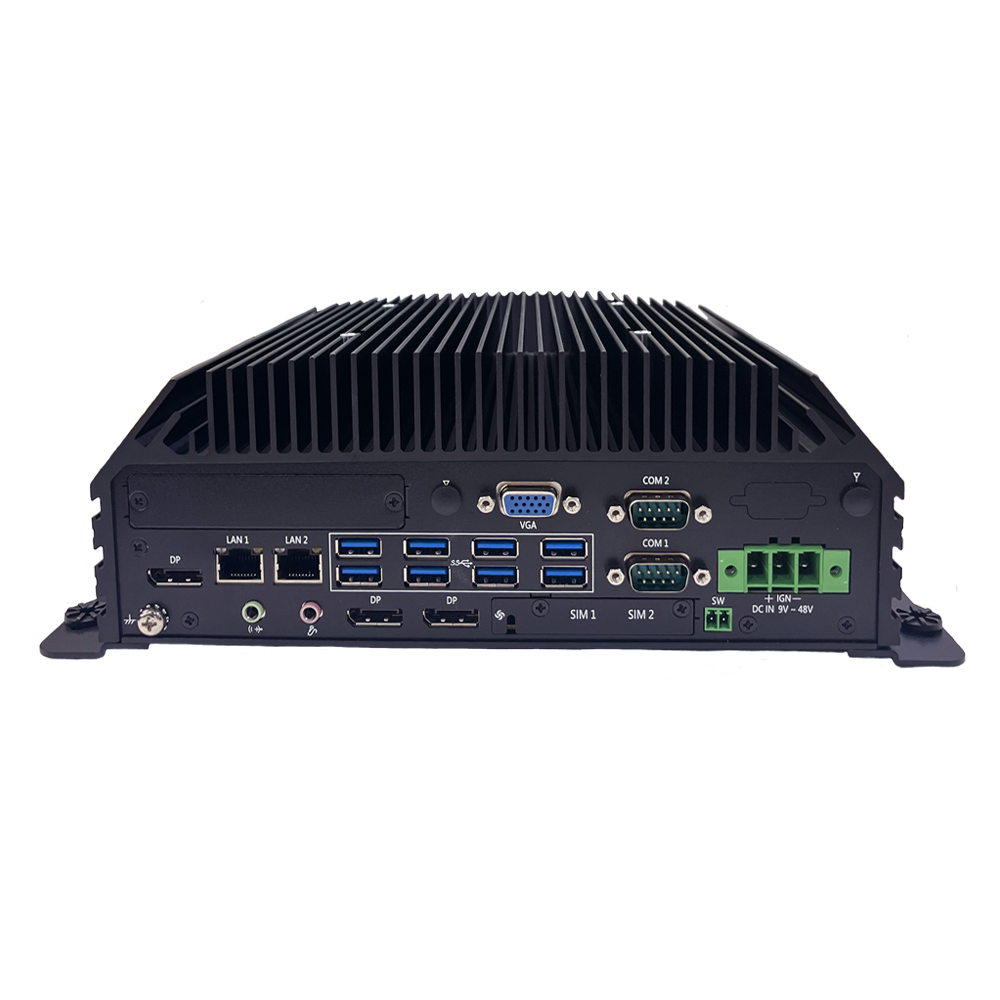

SB-5000

Model

SB-5000

Processor System

CPU

13^th/12^th Gen Intel® Core™/Pentium®/Celeron® 35W LGA 1700 Processors

System Chipset

Intel® R680E

BIOS

AMI 256 Mbit SPI Flash

TPM

TPM 2.0

Memory

Technology

DDR5 4800/5600 SDRAM (ECC and Unbuffered)

Type

2 x 262-pin SO-DIMM

Display

Graphics Engine

Core™ i9/i7/i5: Intel® UHD Graphics 770

Core™ i3: Intel® UHD Graphics 730

Pentium®/Celeron®: Intel® HD Graphics 710

Multiple Display

4

VGA

1 x VGA, Max Resolution 1920 x 1200

DP

3 x DP, Max Resolution 4096 x 2160

HDMI

3 x HDMI, Max Resolution 4096 x 2160 (Optional)

I/O Interface

USB

9 x USB3.2 (Gen2)

Serial Port

6 x RS232/422/485

Ethernet

2 x 2.5GbE Intel® i226-IT, RJ45

4 x GbE Intel® i350-AM4 (Optional, via Arestech Flexible I/O Window)

PoE+

4 x PoE+ Intel® i350-AM4 (Optional, via Arestech Flexible I/O Window)

Audio

1 x Line-out, 1 x Mic-in

GPIO / DIO

8 x Isolated DI and 8 x Isolated DO, 2 x 9-pin Terminal Block

Antenna Hole

4

CMOS Battery

1 x Removable CMOS Battery and 1 x Removable Clear CMOS Switch

Flexible I/O Window

1

Storage

2.5" HDD / SSD

2 x 2.5” SATA III (6.0Gb/s)

M.2

1 x M.2 M-Key1 2280 (SATA)

1 x M.2 M-Key2 2280 (NVMe x 4 and SATA)

RAID

RAID 0/1/5/10

Expansion

Mini PCIe

1 x Full-Size Mini-PCIe (PCIe, USB 2.0 and SIM)

M.2

1 x M.2 B-Key 2242/3042/3052 (PCIe, USB 3.0 and SIM),

1 x M.2 E-Key 2230 (PCIe, CNVi)

SIM Holder

2 x Mini-SIM Holder

Power

Power Mode

AT/ATX

Power Supply Voltage

9-48V DC Input with Ignition Control

Power Connector Type

1 x DC Power Connector, 1 x 3-pin Terminal Block

Protection

Over Voltage Protection (OVP) up to 52V

Over Current Protection (OCP) up to 20A

Reverser Voltage Protection (RVP) up to -48V

Car Mode

1 x PC/Car Mode Switch

1 x Delay Time Switch

Mounting

Type

Wall Mount (Additional Mounting Kit)

Environment

Operating Temperature

-40°C ~ 70°C

Storage Temperature

-40°C ~ 80°C

Humidity

10% ~ 90% (Non-condensing)

General

Vibration

5Grms, 5-500Hz, 0.5hr/axis

Shock

50G, Half-sine, 11ms

Certification

CE/FCC Class A

Thermal Dissipation

Fanless for 35W CPU

Material

Aluminum & SECC

Dimensions (W x D x H)

240 x 200 x 88mm

Net Weight

3.8kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
