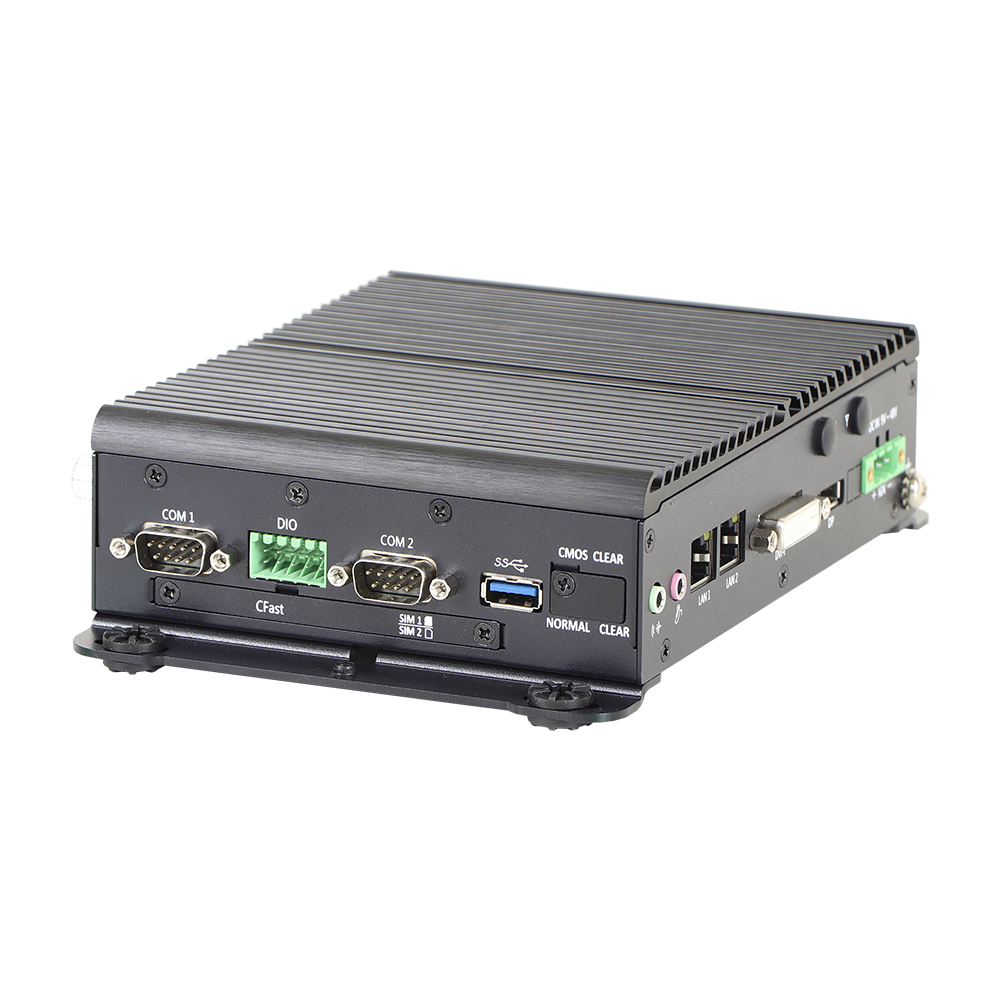

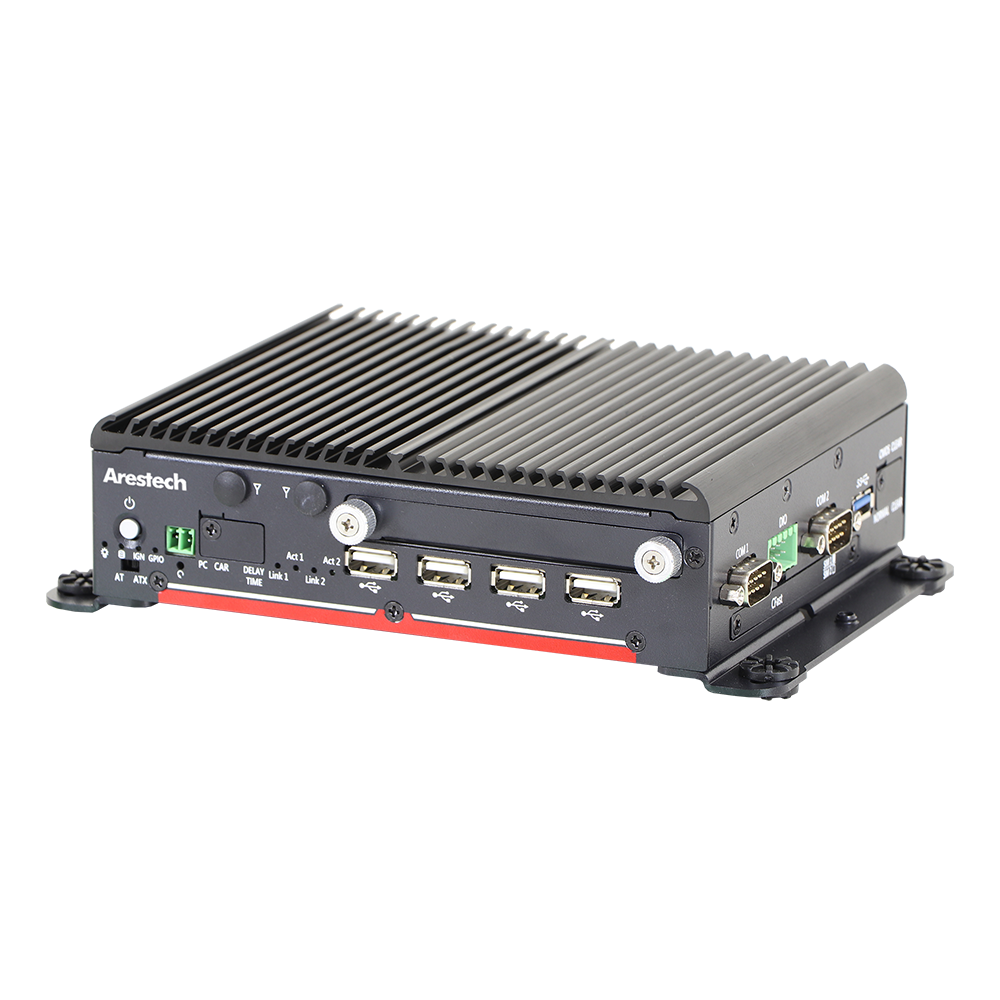

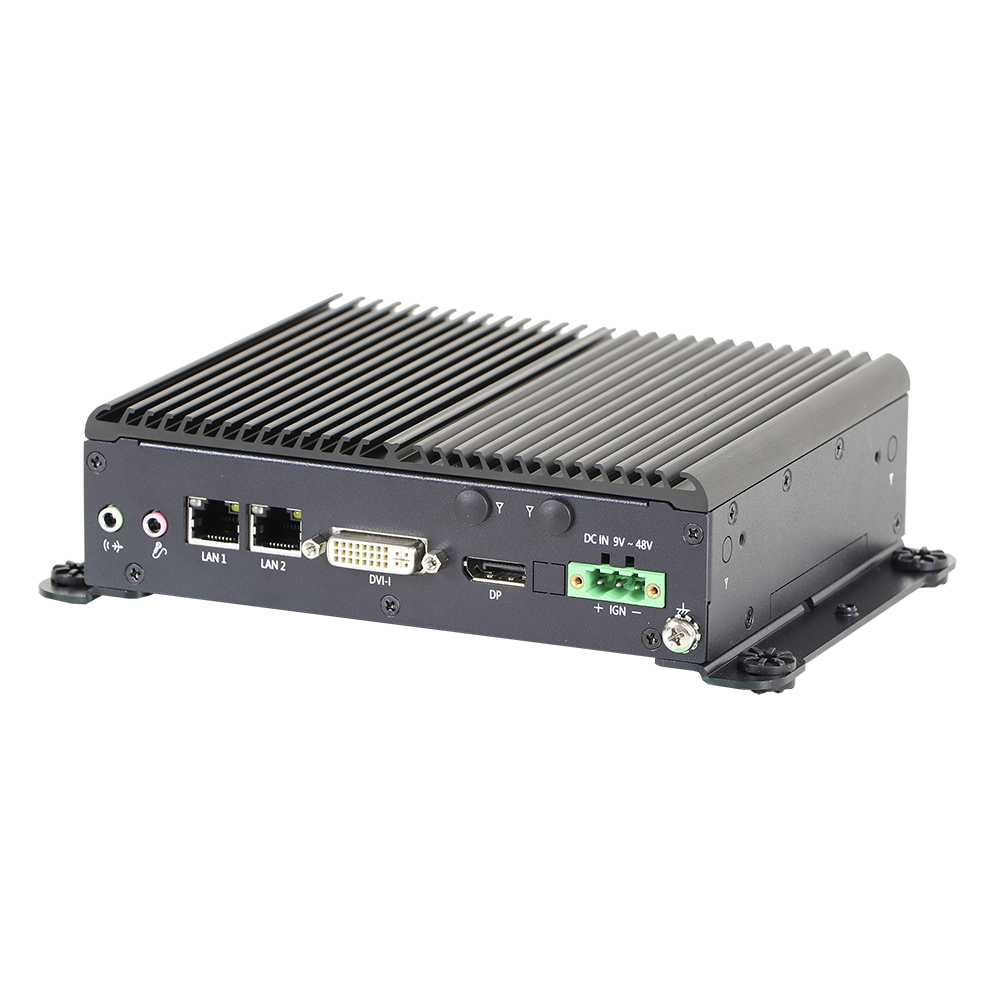

Cable-free and Jumper-less Design to Enhance ReliabilitySupports 1x DVI-I and 1x DP
Built-in Power Protection (OVP / OCP / RVP)1x External AT / ATX Power Mode Switch1x External Clear CMOS Switch9 – 48V DC Power Inputs with Power Ignition Function-40˚C ~ 70˚C Wide Operating Temperature Factory AutomationAccess ControlSelf-service KioskMotion Control | Model | MERA-2000-2L | MERA-2001-2L | MERA-2001S-2L | |
| Processor System | CPU | Intel® Celeron® Processor J1900 | ||
| System Chipset | N/A | |||
| BIOS | AMI BIOS, 64Mbit SPI Flash ROM Built on Board | |||
| Memory | Technology | Single Channel DDR3L 1066/1333 MHz | ||
| Max. Capacity | 8 GB (Un-bu ered and Non-ECC) | |||
| Socket | 1x DDR3L 204-pin SO-DIMM | |||
| Display | Graphics Engine | Integrated Intel® HD Graphics | ||
| VGA | N/A | |||
| DVI | 1x DVI-I (DVI-D+VGA), up to 1920 x 1200 | |||
| HDMI | N/A | |||
| DP | 1x DP, up to 1920 x 1200 | |||
| I/O Interface | USB | 1x USB3.0 and 4x USB2.0 | ||
| Serial Port |
2x COM (RS-232/422/485), with Auto Flow Control, DB9 |
2x COM (RS-232/422/485), with Auto Flow Control, DB9 |
6x COM (RS-232/422/485), with Auto Flow Control, DB9 |
|
| GPIO | 4x Isolated DI and 4x Isolated DO Ports, 10-pin Terminal Block | |||
| Ethernet | 2x GbE (2x Intel® i210-AT, supporting Wake-on-LAN and PXE) | |||
| Audio | Line Out, Mic In | |||
| Flexible I/O Window Slot | N/A | |||
| Expansion | Mini-PCIe / M.2 Slot | 1x Full-size Mini-PCIe Socket (mux with mSATA) and 1 x Full-size Mini-PCIe | ||
| SIM Holder | 2 | |||
| Antenna Hole | 6 | 4 | 4 | |
| PCI / PCIe Slot | N/A | |||
| Storage | 2.5” HDD/SSD | 1x Removable 2.5" SATA HDD Bay | 2x Removable 2.5" SATA HDD Bay | 2x Removable 2.5" SATA HDD Bay |
| RAID | N/A | |||
| CFast Socket |
1x CFast Socket (Shared by mSATA) |
1x CFast Socket (Shared by mSATA and 1x SATA) |
1x CFast Socket (Shared by mSATA and 1x SATA) |
|
| mSATA / M.2 |
1x mSATA Socket (Shared by 1x Mini-PCIe and CFast) |
1x mSATA Socket (Shared by CFast and 1x SATA) |
1x mSATA Socket (Shared by CFast and 1x SATA) |
|
| Power | Power Mode | AT / ATX | ||
| Remote Power | 1x Remote Power On/O ff Connector, 2-pin Terminal Block | |||
| Power Supply Voltage | 9~48V DC | |||
| Connector Type | 1x 3-pin Terminal Block Connector | |||
| Power Ignition | Power Ignition Sensing | |||
| Protection |
Over Voltage Protection (OVP) up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A |
|||
| Car Mode | 1x PC/Car Mode Switch | |||
| Mounting | Type | Wall Mount / DIN-Rail (Optional) | ||
| Environment | Operating Temperature | -40°C ~ 70°C (-40~158° F) | ||
| Storage Temperature | -40 ~ 80° C (-40~176° F) | |||
| Humidity | 10% ~ 95% (Non-condensing) | |||
| Vibration | 5 Grms, 5-500 Hz, 3 Axis | |||
| Shock | 50 Grms, Half-sine 11 ms | |||
| General | Certification | CE/FCC | ||
| Thermal Dissipation | Fanless System | |||
| Material | Extruded Aluminum with Heavy Duty Metal | |||
| Dimensions (W x H x D) |
168 x 47 x 135 mm (6.61" x 1.85" x 5.31") |
168 x 62 x 135 mm (6.61" x 2.44" x 5.31") |
168 x 62 x 135 mm (6.61" x 2.44" x 5.31") |
|
| Net Weight | 1.1 kg (2.43 Ib) | 1.4 kg (3.08 Ib) | 1.45 kg (3.20 Ib) | |
| Operating System | Windows 10 (IoT / Professional), Linux | |||
Ordering Information
| Part No. | Description |
| MERA-2000-2L | Intel® J1900 Compact Fanless Box PC, 1x USB3.0, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x DVI-I, 1x Removable 2.5” SATA HDD Bay, Line Out, Mic In, DC 9~48V, Terminal Block Connector |
| MERA-2001-2L | Intel® J1900 Compact Fanless Box PC, 1x USB3.0, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x DVI-I, 2x Removable 2.5” SATA HDD Bays, Line Out, Mic In, DC 9~48V, Terminal Block Connector |
| MERA-2001S-2L | Intel® J1900 Compact Fanless Box PC, 1x USB3.0, 4x USB2.0, 6x RS232/422/485, 2x GbE , 1x DP, 1x DVI-I, 2x Removable 2.5” SATA HDD Bays, Line Out, Mic In, DC 9~48V, Terminal Block Connector |
Packing List
| Description | |
| 1 x MERA-2000 Series Machine | |
| 1 x DVI to VGA Adapter | |
| 1 x Wall Mount Kit |
Optional Items
| Part No. | Description |
| AWD-4G003 | 4G(LTE) EG25-G + 2 Antennas, Full Size (for Global) |
| AWD-4G004 | 4G(LTE) EC25EFA + 2 Antennas, Full Size (for Europe/Taiwan/China/Hong Kong) |
| AWD-WF001 | Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size |
| AWD-WF003 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size |
| 2107-2330-X10 | DIN-RAIL Mount Kit |
| 555000-0025-M5 | Adapter AC/DC 12V 5A 60W with 3-pin Terminal Block Plug 5.0mm Pitch |
| 30100-0003-CA | Power Cord, 3-pin US Type, 180 cm |
| 30101-0005-CA | Power Cord, 3-pin EU Type, 180 cm |
