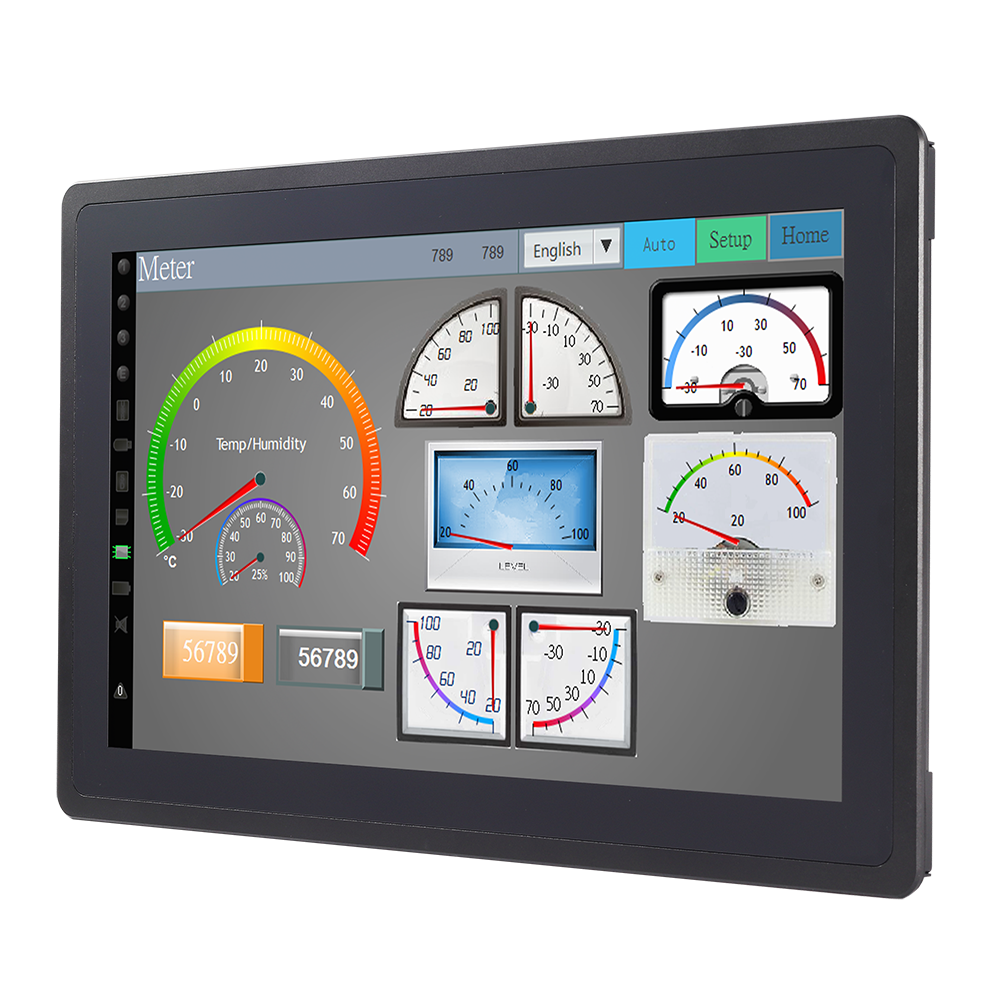

IP65 Front Aluminum BezelTrue Flat DesignSupports VESA & Panel MountDiamond-cut Modern, Chamfered EdgesFeatures
IP65 Front Aluminum BezelTrue Flat DesignSupports VESA & Panel MountDiamond-cut Modern, Chamfered EdgesApplications
Human Machine Interface (HMI)Factory / Manufacturing AutomationATM / Self-service / KioskVending Machine / Ticketing Machine | Model | PPC-J217RW-1A1 | PPC-J217RW-2A1 | |||
| Processor System | CPU | Intel® Core® i5-7200U | Intel® Core® i3-7100U | ||
| Frequency | Dual-core up to 3.1GHz | Dual-core up to 2.4GHz | |||
| System Chipset | N/A | ||||
| Cache | 3 MB | ||||
| BIOS | UEFI | ||||
| Memory | Technology | Dual Channel DDR4 2133 MHz | |||
| Max. Capacity | 32 GB | ||||
| Type | 2x 260-pin SO-DIMM | ||||
| Panel | Panel Size | 21.5" | |||
| Panel Type | LCD Panel | ||||
| Aspect Ratio | 16:9 | ||||
| Resolution | FHD, 1920 x 1080 | ||||
| Viewing Angle | 178(H) x 178 (V) | ||||
| Brightness | 250 cd/m2 | ||||
| Contrast Ratio | 3000:1 | ||||
| Response Time | 12 msec | ||||
| Touchscreen | Touchscreen Type | 5-wire Resistive | |||
| Surface Hardness | 3 Mohs | ||||
| Durability | 36 Millions Times | ||||
| Transparency | 80% (±3%) | ||||
| Display | HDMI | 1x HDMI, up to 4096 x 2160 @ 60Hz | |||
| DP | 1x DP, up to 4096 x 2160 @ 60Hz | ||||
| VGA | N/A | ||||
| DVI | N/A | ||||

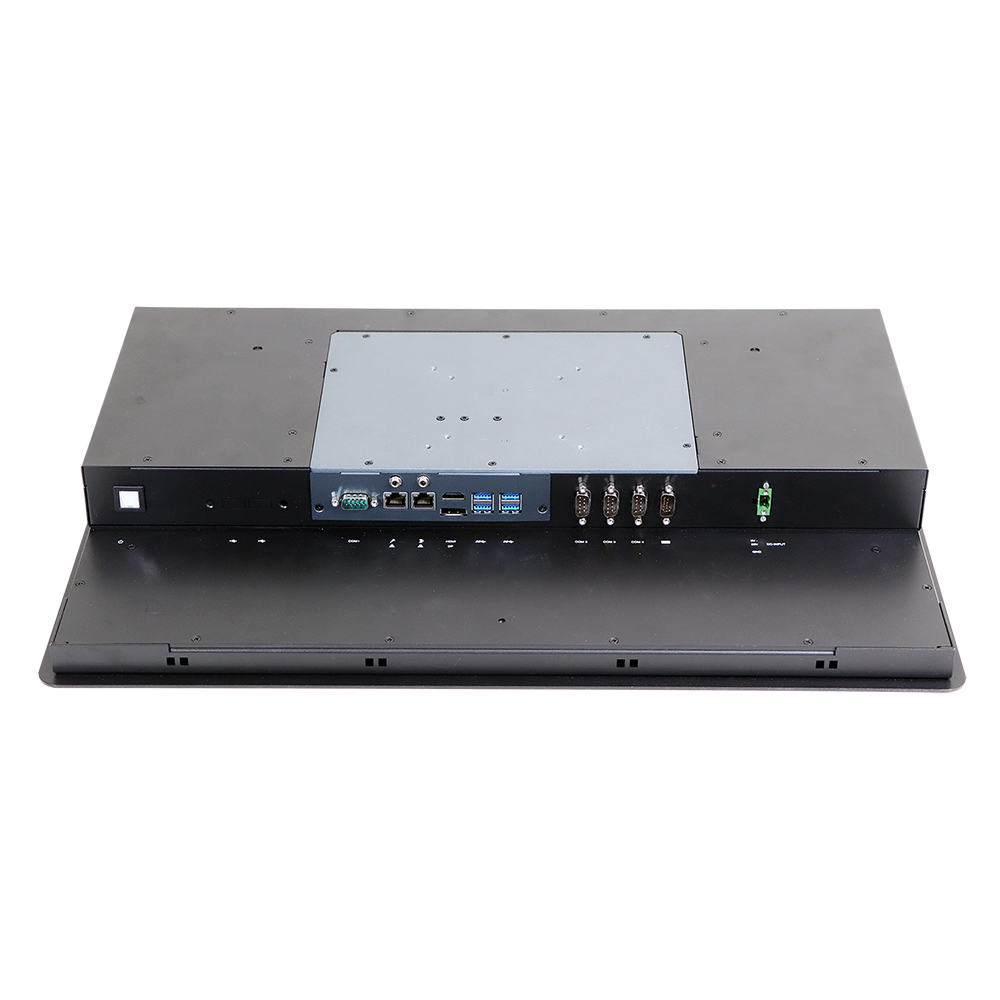

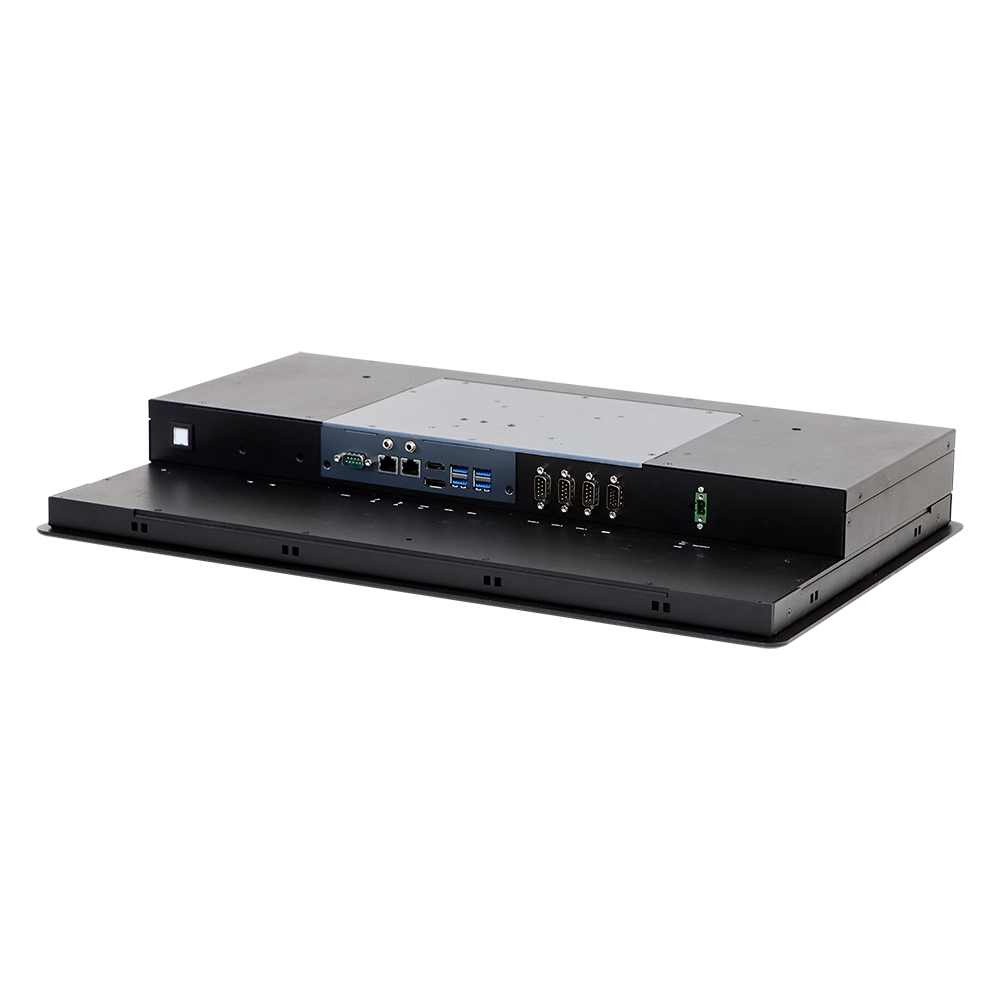

| I/O Interface | USB | 4x USB 3.0 | |||
| Serial Port | 3x RS-232 and 1x RS-232/422/485 | ||||
| Ethernet | 2x GbE (Lan1: Intel® i219V, Lan2: Intel® i211AT) | ||||
| Audio | Line Out, Mic In (Realtek High De nition Audio (HD)) | ||||
| GPIO / DIO | 8-pin Digital I/O (DB-9 Connector) | ||||
| Antenna Hole | N/A (Optional) | ||||
| Others | N/A | ||||
| Storage | 2.5" HDD / SSD | 1x Internal 2.5” HDD/SSD | |||
| M.2 | 1x M.2 M Key 2280 (PCIe x4, SATA III) | ||||
| mSATA | N/A | ||||
| RAID | N/A | RAID 0/1 | |||
| Expansion | Mini PCIe | 1x Full Size (PCIe x1, USB2.0) | |||
| M.2 | 1x M.2 E Key 2230 | ||||
| PCI / PCIe | N/A | ||||
| SIM Holder | 1 | ||||
| Power | Power Mode | AT / ATX | |||
| Power Supply Voltage | 9-36V DC Input | ||||
| Connector Type | 2-pin Terminal Block | ||||
| Power Consumption (Typical) | 17.5W @ 12V (1.46A) | ||||

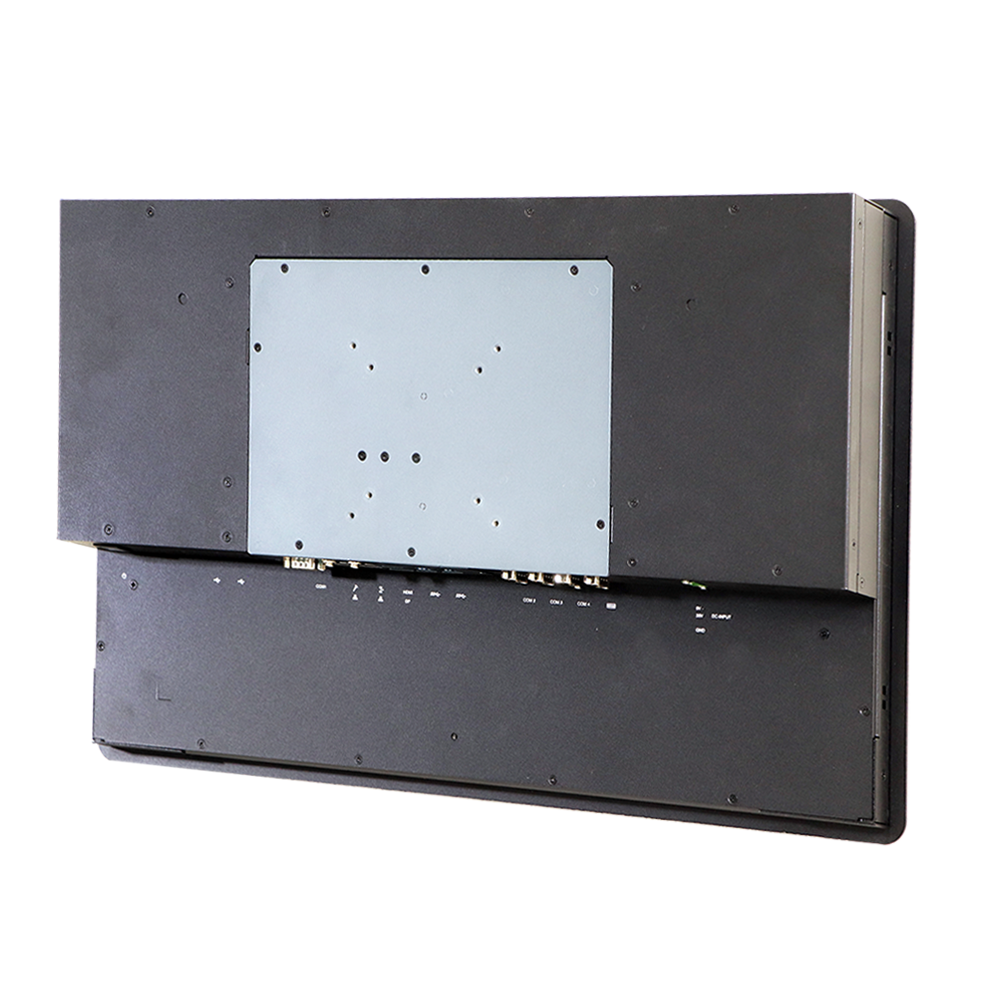

| Mounting | Type | VESA Mount (75 x 75 ; 100 x 100 mm) / Panel Mount | |||
| Environment | Operating Temperature | -20~60°C (-4~140° F) w/ Extended Operation Temp. RAM & Storage | |||
| Storage Temperature | -40~85°C (-40~185° F) | ||||
| Humidity | 5~95% @ 40° C, Non-condensing | ||||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 Hour per Axis | ||||
| Shock | 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration | ||||
| General | Certification | CE / FCC Class A | |||
| Thermal Dissipation | Fanless | ||||
| Ingress Protection | Front IP65 | ||||
| Material | Aluminum Front Cover | ||||
| Dimensions (W x H x D) | 561.8 x 352.76 x 73.55 mm (22.12" x 13.89" x 2.90") | ||||
| Net Weight | 8.1 kg (17.85 Ib) | ||||
| Operating System | Windows 10 (IoT 64 bit/Professional), Linux Kernel 4.0.x or above | ||||
Ordering Information
| Part No. | Description |
| PPC-J217RW-1A1 | 21.5” 16:9 (1920 x 1080), 250 nits, Aluminum IP65 True Flat Front Panel, Fanless Panel PC with Intel® Core™ i5-7200U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, Line Out, Mic In, DC 9~36 V, Phoenix Connector |
| PPC-J217RW-2A1 | 21.5” 16:9 (1920 x 1080), 250 nits, Aluminum IP65 True Flat Front Panel, Fanless Panel PC with Intel® Core™ i3-7100U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, Line Out, Mic In, DC 9~36 V, Phoenix Connector |
Packing List
| Description | |
| 1 x PPC-J217RW | |
| 1 x Power Adapter | |
| 1 x Power Cord | |
| 12 x Panel Mounting Screws |
Optional Items
| Part No. | Description |
| AWD-WF001 | Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size |
| AWD-WF003 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size |
| AWD-WF004 | Wi-Fi 802.11 b/g/n + BT4.0 (1T1R) + 2 Antennas (Single Band), M.2 2230 Type |
| AWD-WF005 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), M.2 2230 Type |
| AWD-4G003 | 4G(LTE) EG25-G + 2 Antennas, Full Size (for Global) |
| AWD-4G004 | 4G(LTE) EC25EFA + 2 Antennas, Full Size(for Europe/Taiwan/China/Hong Kong) |
| ACS-110-STD | VESA Stand (75x75, 100x100 mm), Supporting up to 15 kg Panel PC / Monitor |
