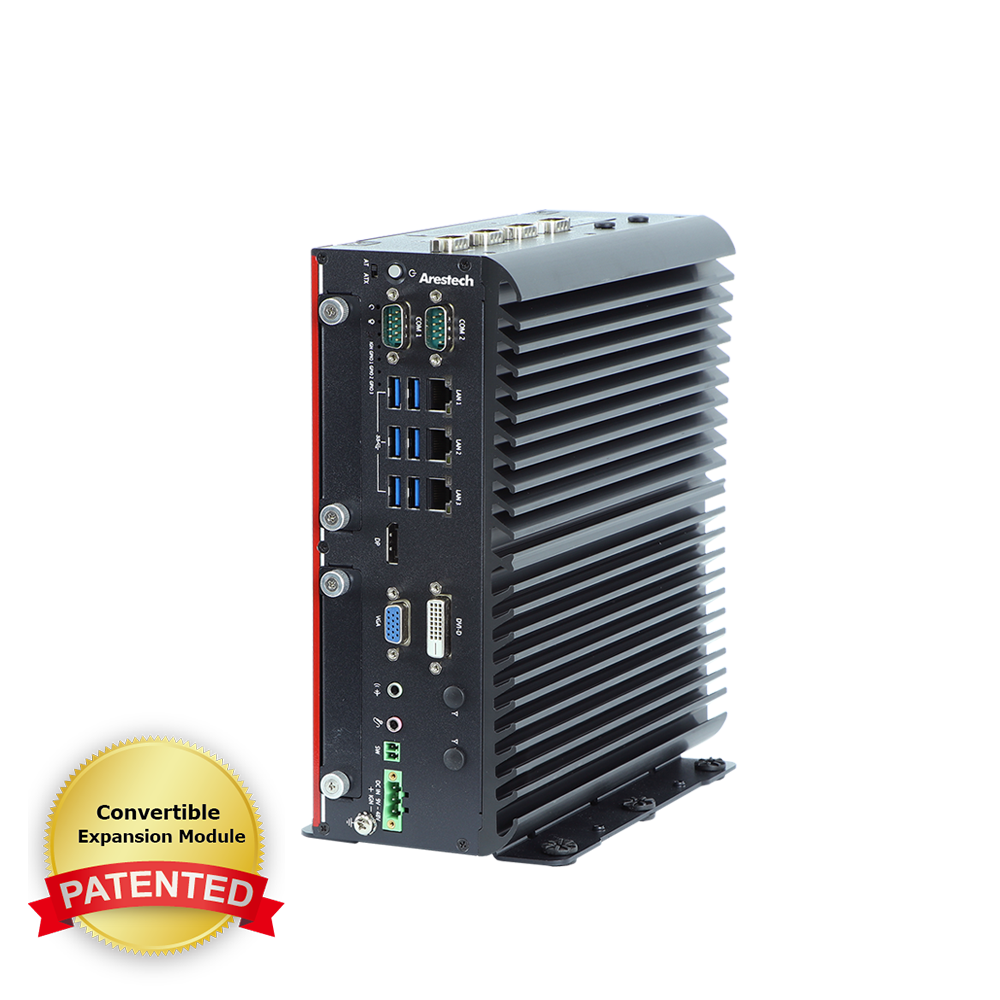

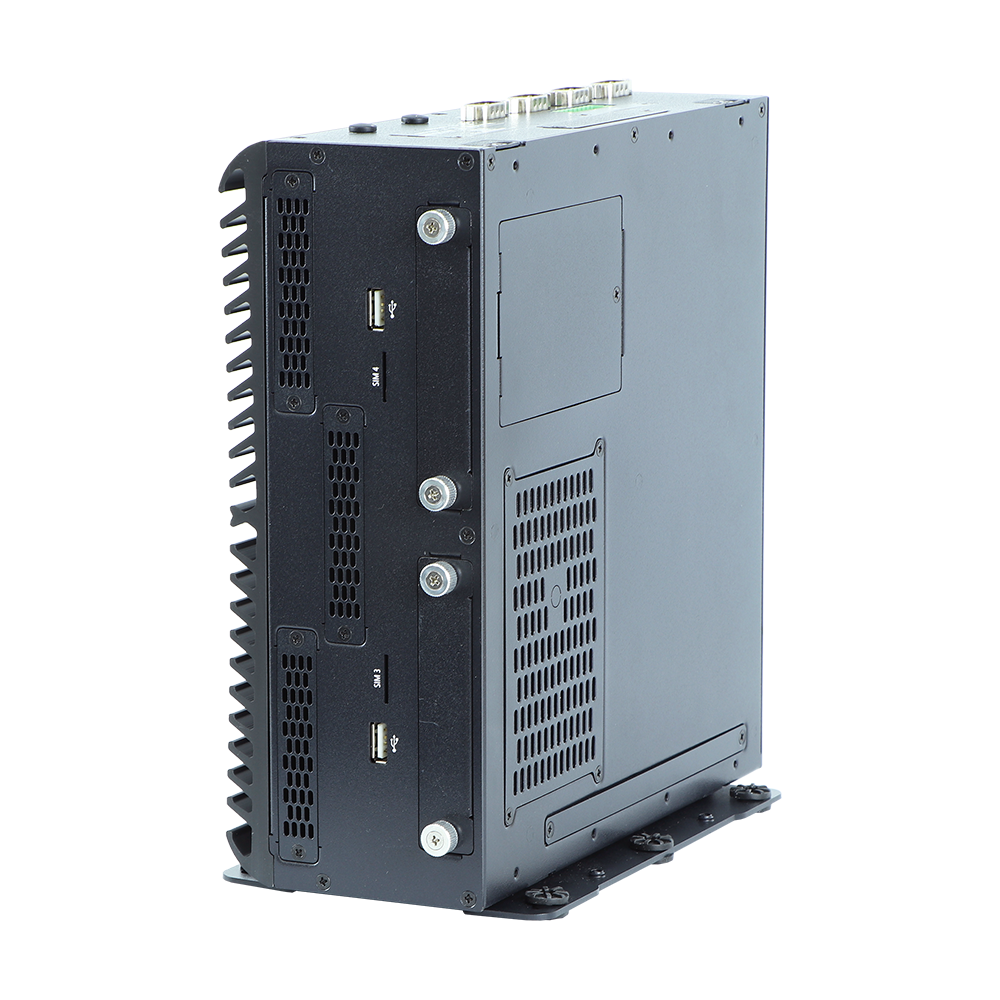

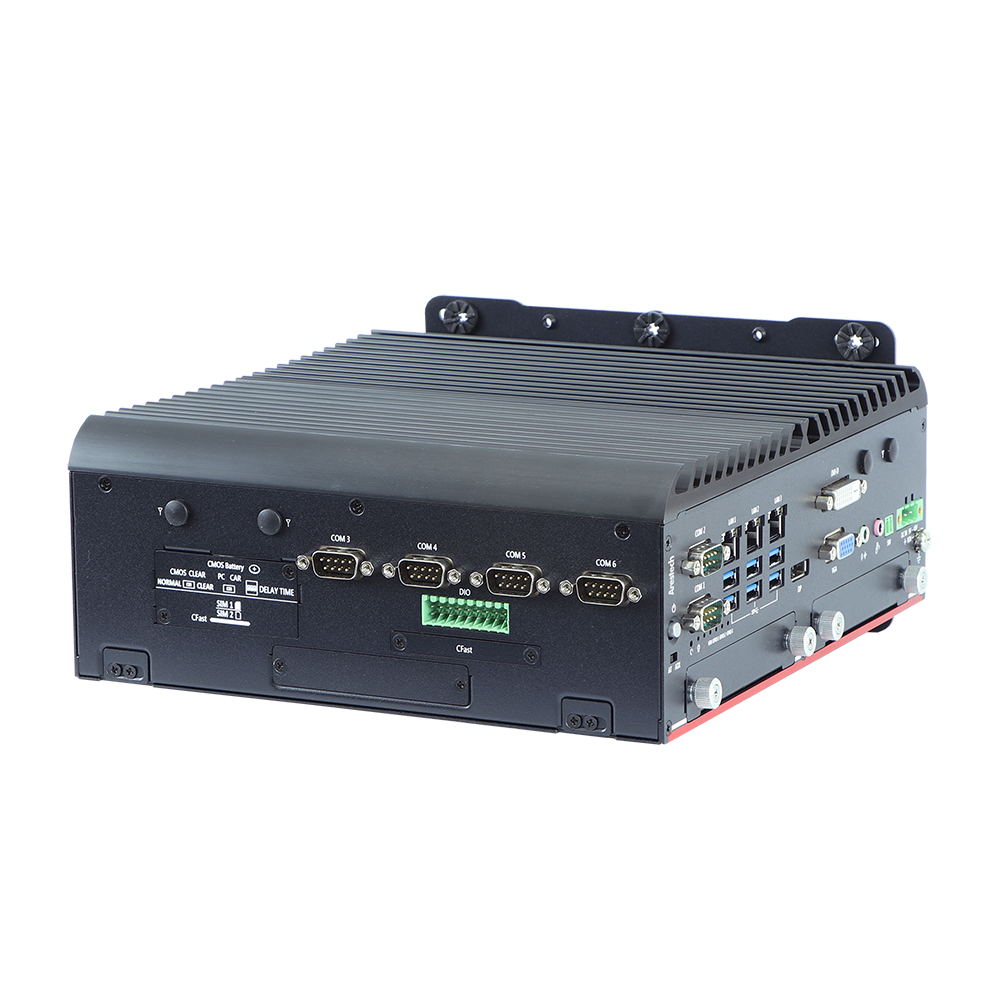

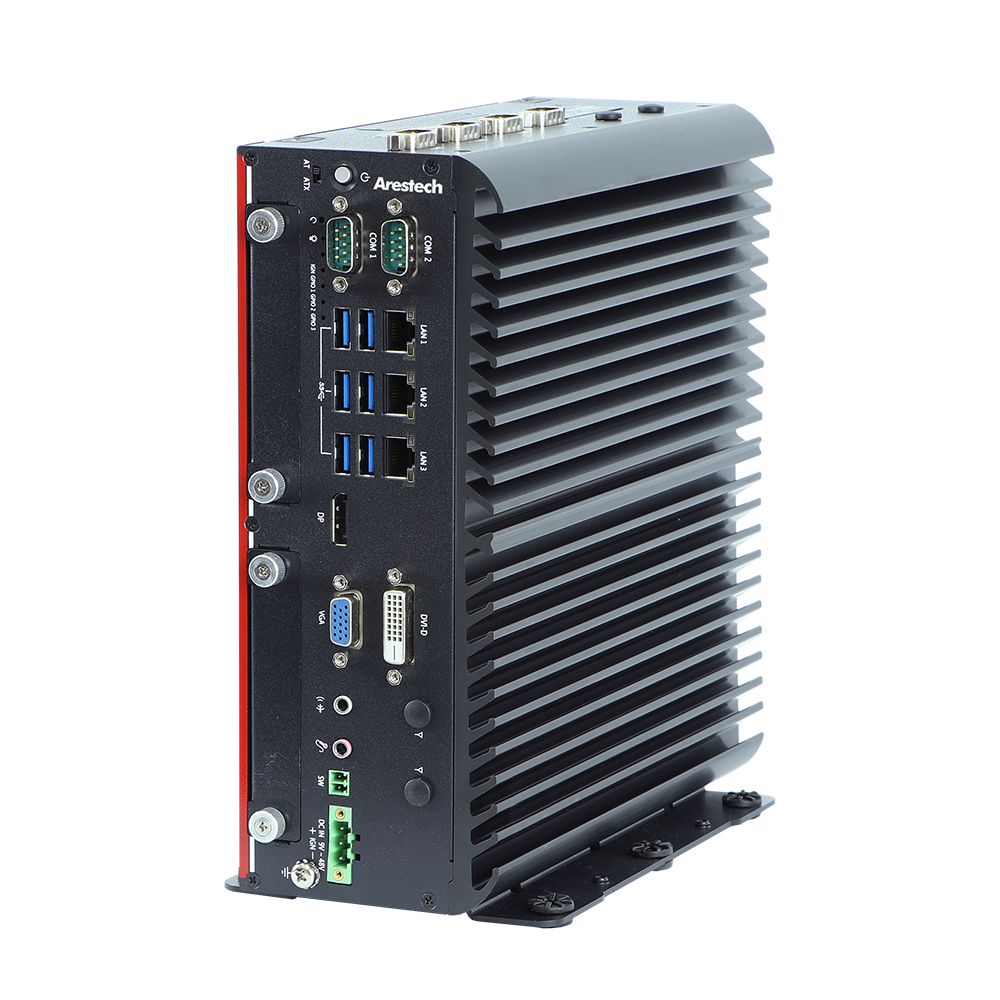

MEVA-3110
Machine Vision Computer with Intel® 9th / 8th LGA1151 Processor
  • Quote

  • Datasheet

  • Driver

Features
list_dot_01.pngSupports 8th/9th Gen Intel® CFL-R/S LGA 1151 Processors
list_dot_01.pngTriple Display Supported by VGA, DVI and Display Port
list_dot_01.png2 x DDR4 2400 / 2666MHz SO-DIMM, Max up to 64GB
list_dot_01.png3 x Intel GbE Ports, Supporting Wake-on-LAN and PXE
list_dot_01.png4 x Removable 2.5“ SATA HDD bay and
   2 x CFast /
mSATA, Supporting RAID 0, 1, 5, 10

list_dot_01.png4 x Full-Size Mini-PCIe and 4 x SIM Sockets
list_dot_01.png9~48V DC Input with Built-in Ignition Power Control
list_dot_01.png-40°C ~ 70°C Wide Temperature Operation
Applications
list_dot_01.pngFactory Automation
list_dot_01.pngMachine Vision
list_dot_01.pngQuality Inspection
list_dot_01.pngMotion Control
list_dot_01.pngDigital Surveillance

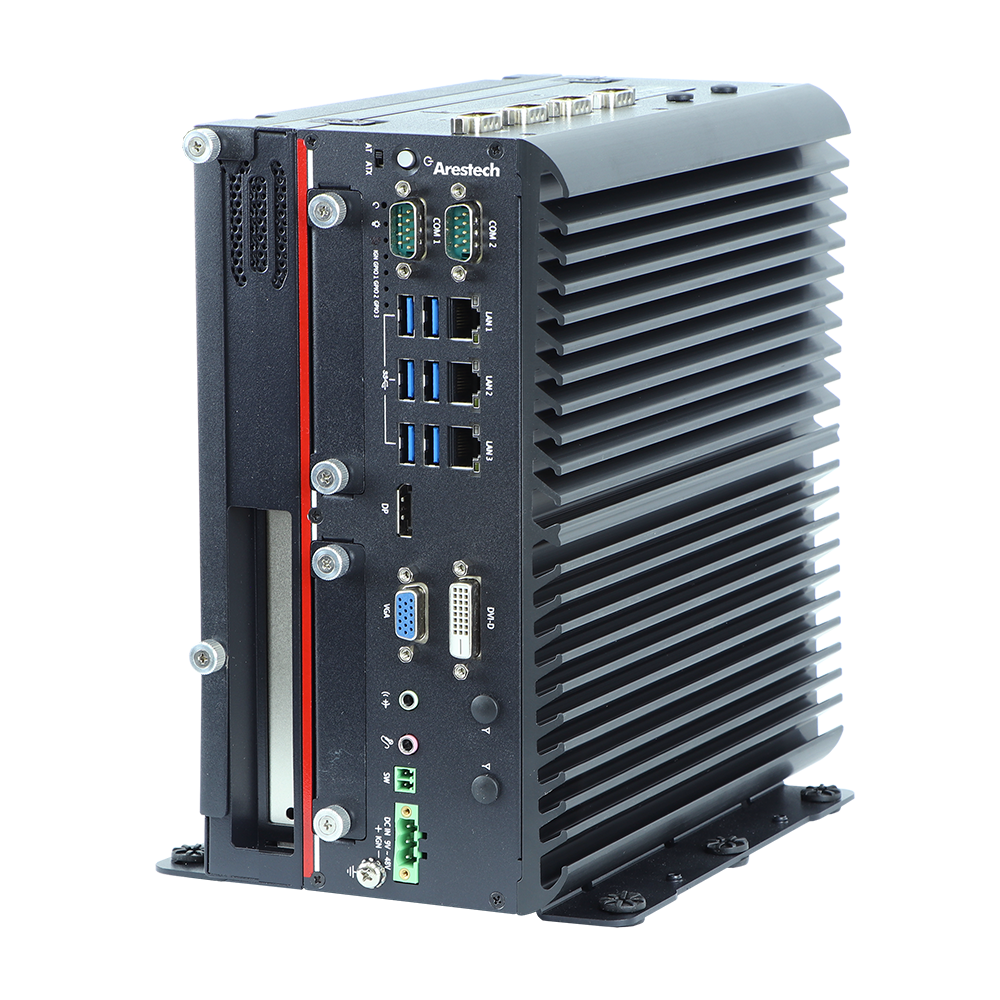

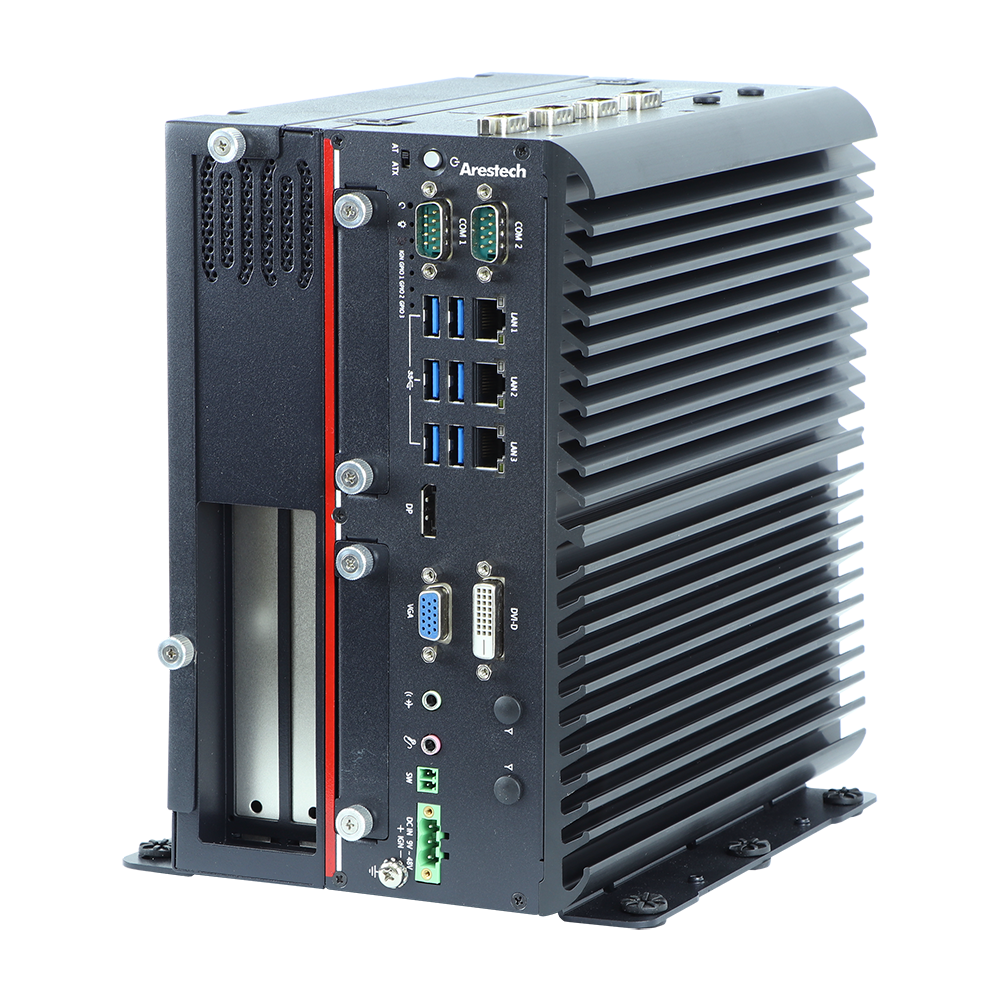

Model MEVA-3110 MEVA-3111P/E MEVA-3112P/E
Processor System CPU LGA 1151 Processors 9th/ 8th Intel® Core™ i3 / i5 / i7 Desktop 35W/ 65W
System Chipset Intel® Q370 Express Chipset
BIOS AMI BIOS, 256Mbit SPI Flash ROM on Board
Memory Technology Dual Channel DDR4 2400/2666 MHz SO-DIMM
Max. Capacity 64 GB (Un-buered and Non-ECC)
Socket 2x DDR4 260-pin SO-DIMM
Display Graphics Engine Integrated Intel® UHD Graphics 630 (Core™ i7/ i5/ i3)
Integrated Intel® UHD Graphics 610 (Pentium/ Celeron)
HDMI N/A
DP 1x DP, up to 4096 x 2160
VGA 1x VGA, up to 1920 x 1200
DVI 1x DVI-D, up to 1920 x 1200
I/O Interface USB 6x USB3.2 and 2x USB2.0
Serial Port 6x COM (RS-232/422/485), with Auto Flow Control, DB9
GPIO 8x Isolated DI and 8x Isolated DO Ports, 2x9-Pin Terminal Block
Ethernet 3x GbE RJ45,
GbE1: Intel® i219-LM GbE (Supports Wake-on-LAN and PXE)
GbE2~GbE3: Intel® i210-AT GbE (Support sWake-on-LAN and PXE)
Audio Line Out, Mic In
CMOS Battery 1x Removable CMOS Battery and 1x External Clear CMOS Switch
Flexible I/O Window Slot 4
Expansion Mini-PCIe  2x Full-size Mini-PCIe Sockets (mux with mSATA) and 2x Full-size Mini-PCIe Sockets
M.2 N/A
PCI / PCIe N/A 1x PCI Slot (MEVA-3111P)
1x PCIe X16 Slot (MEVA-3111E)
2x PCI Slots (MEVA-3112P)
1x PCIe X16 Slot and 1x PCIe X8 Slot (4-lane) (MEVA-3112E)
SIM Holder 4
Storage 2.5” HDD/SSD 4x Removable 2.5" SATA HDD Bays
M.2 N/A
CFast / mSATA 2x CFast Sockets (shared by 2x mSATA)
RAID RAID 0 / 1 / 5 / 10
Power Power Mode AT / ATX (Supports Hardware AT, ATX Power Mode)
Power Supply Voltage 9~48V DC (without GPU Card)
24~48V DC (with GPU Card)
Power Connector Type 1x 3-pin Terminal Block Connector with Power Input
Power Ignition Power Ignition Sensing
Power Consumption  Optional AC/DC 24V, 120W / 220W
Protection Over Voltage Protection (OVP) up to 52V
Reverse Voltage Protection (RVP) up to -48V
Over Current Protection (OCP) 20A
Car Mode 1x PC / Car Mode Switch
Mounting Type Wall Mount / Stand Mount
Environment Operating Temperature 35W CPU: -40°C to 70°C (-40~158° F)
65W CPU: -40°C to 60°C (-40~140° F, Optional External Fan Kit is Required)
Storage Temperature -40°C to 85°C (-40~185° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5 Grms, 5-500 Hz, 3 Axis
Shock 50 Grms, Half-sine 11 ms
General Certification CE/FCC
Thermal Dissipation Fanless System (35W);Fan-based System (65W)
Material Extruded Aluminum with Heavy Duty Metal
Dimensions (W x H x D) 92.6 x 241.5 x 231 mm
(3.65" x 9.51" x 9.09")
127 x 241.5 x 231 mm
(5" x 9.51" x 9.09")
148 x 241.5 x 231 mm
(5.83" x 9.51" x 9.09")
Net Weight 3.95 kg (8.70 Ib) 5.2 kg (11.4 Ib) 5.35 kg (11.7 Ib)
Operating System Windows 10 (IoT / Professional), Linux

Ordering Information

Part No. Description
MEVA-3110 Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.2, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, 4x Flexible I/O Window Slots, 4x Removable 2.5" SATA HDD Bays, Line Out, Mic In, DC 9~48V, Terminal Block Connector
MEVA-3111P Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.2, 2xUSB 2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, 4x Flexible I/O Window Slots, 1x PCI Slot, 4x Removable 2.5" SATA HDD Bays, Line Out, Mic In, DC 9~48V, Terminal Block Connector
MEVA-3111E Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.2, 2x USB 2.0, 6x RS232/422/485,3x GbE, 1x DP, 1x VGA, 1x DVI-D, 4x Flexible I/O Window Slots, 1x PCI Express X16 Slot, 4x Removable 2.5" SATA HDD Bays, Line Out, Mic In, DC 9~48V, Terminal Block Connector
MEVA-3112P Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6xUSB3.2, 2x USB 2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, 4x Flexible I/O Window Slots, 2x PCI Slots, 4x Removable 2.5" SATA HDD Bays, Line Out, Mic In, DC 9~48V, Terminal Block Connector
MEVA-3112E  Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.2, 2x USB 2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, 4x Flexible I/O Window Slots, 1x PCIe X8 Slot (4-lane), 1x PCI Express X16 Slot, 4x Removable 2.5" SATA HDD Bays, Line Out, Mic In, DC 9~48V, Terminal Block Connector

 Packing List

Description
1 x MEVA-3110 Series Machin
1 x Wall Mount Kit

Optional Items

Part No. Description
AWD-4G003 4G(LTE) EG25-G + 2 Antennas, Full Size (for Global)
AWD-4G004 4G(LTE) EC25EFA + 2 Antennas, Full Size (for Europe/Taiwan/China/Hong Kong)
AWD-WF001 Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size
AWD-WF003 Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size
i7-9700TE Intel® Core™ i7-9700TE (8-Cores, up to 3.8 GHz, 35W TDP)
i5-9500TE Intel® Core™ i5-9500TE (6-Cores, up to 3.6 GHz, 35W TDP)
i7-8700T Intel® Core™ i7-8700T (6-Cores ,up to 4.0 GHz, 35W TDP)
i5-8500T Intel® Core™ i5-8500T (6-Cores, up to 3.5 GHz, 35W TDP)
i3-8100T Intel® Core™ i3-8100T (4-Cores, up to 3.1 GHz, 35W TDP)
55000-0023-M5 Adapter AC/DC 24V 5A 120W with 3-pin Terminal Block Plug 5.0mm Pitch
55000-0024-M5 Adapter AC/DC 24V 9.2A 220W with 3-pin Terminal Block Plug 5.0mm Pitch
30100-0003-CA Power Cord, 3-pin US Type, 180 cm
30101-0005-CA Power Cord, 3-pin EU Type, 180 cm
5E400-0004-AV External Fan Module Kit for MEVA (MERA) Series (92 x 92 x 25 mm)
