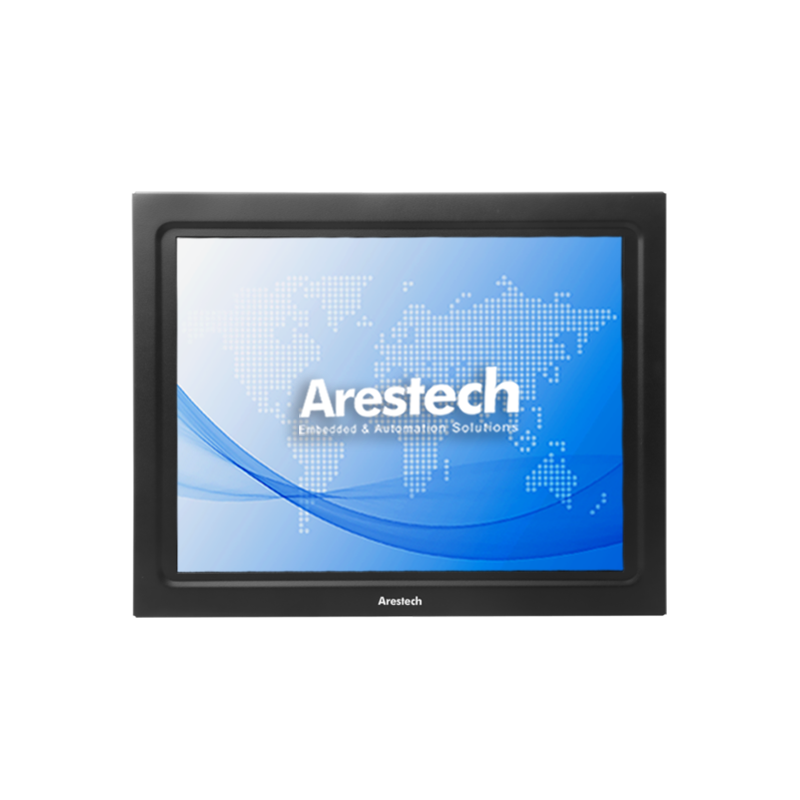

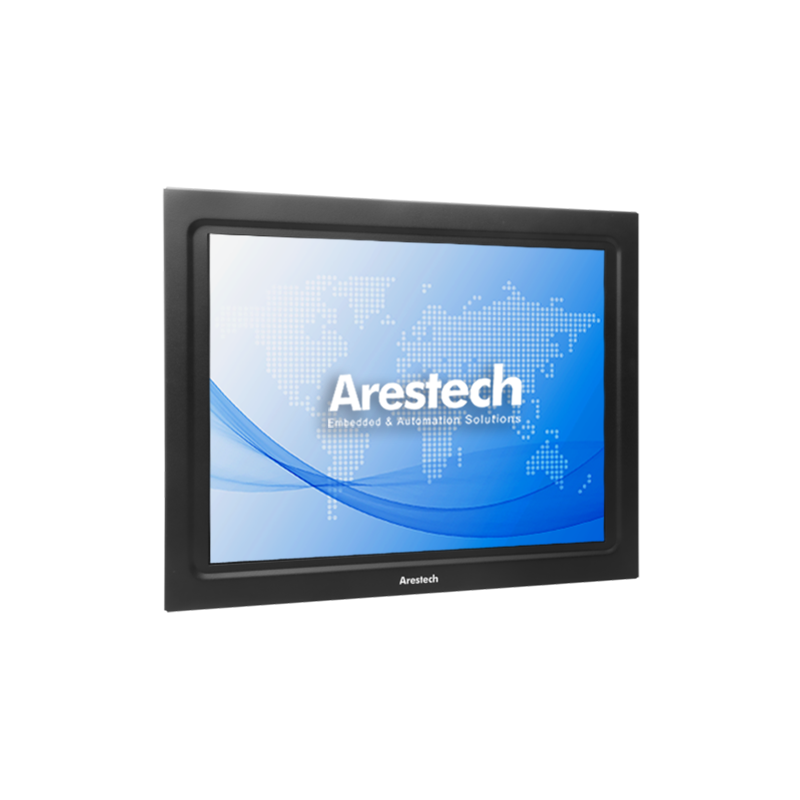

PPC-152
15" Fanless Multi-touch Panel PC with Intel® Celeron® J1900 Processor
  • Quote

  • Datasheet

  • Driver

Features

list_dot_01.png15” TFT XGA LED Panel with Projected Capacitive Touch Display
list_dot_01.pngEmbedded Intel® Celeron® J1900 2.0 GHz Processor
list_dot_01.pngSystem Memory up to 8 GB DDR3L 1333 SDRAM
list_dot_01.pngSupports Two-finger Touch Control while Wearing Gloves
list_dot_01.pngInternal SATA 2.5” HDD and mSATA Socket
list_dot_01.pngPanel and VESA Mounting


Applications
list_dot_01.pngHuman Machine Interface (HMI)
list_dot_01.pngFactory / Manufacturing Automation
list_dot_01.pngATM / Self-service / Kiosk Applications
list_dot_01.pngVending Machine / Ticketing Machine
Model PPC-152P PPC-152R
Processor System CPU Intel® Celeron® Processor J1900
Frequency Quad-Core up to 2.0 GHz
System Chipset N/A
Cache 2 MB
BIOS UEFI
Memory Technology DDR3L 1333 MHz SDRAM
Max. Capacity 8 GB
Type 1x 204-pin SO-DIMM
Panel Panel Size 15"
Panel Type LCD Panel
Aspect Ratio 4:3
Resolution XGA, 1024 x 768
Viewing Angle 80 x 80 (H) x 80 x 80 (V)
Brightness 300 cd/m2
Contrast Ratio 600:1
Response Time 8 msec
Touchscreen Touchscreen Type Projected Capacitive Touch 5-wire Resistive Touch
Surface Hardness 7 Mohs 3 Mohs
Durability N/A 10 Millions Times
Transparency 90% (±3%) 80% (±3%)
Display HDMI 1x HDMI 1.4a, up to 1920 x 1200
DP N/A
VGA 1x VGA, up to 1920 x 1200
DVI N/A

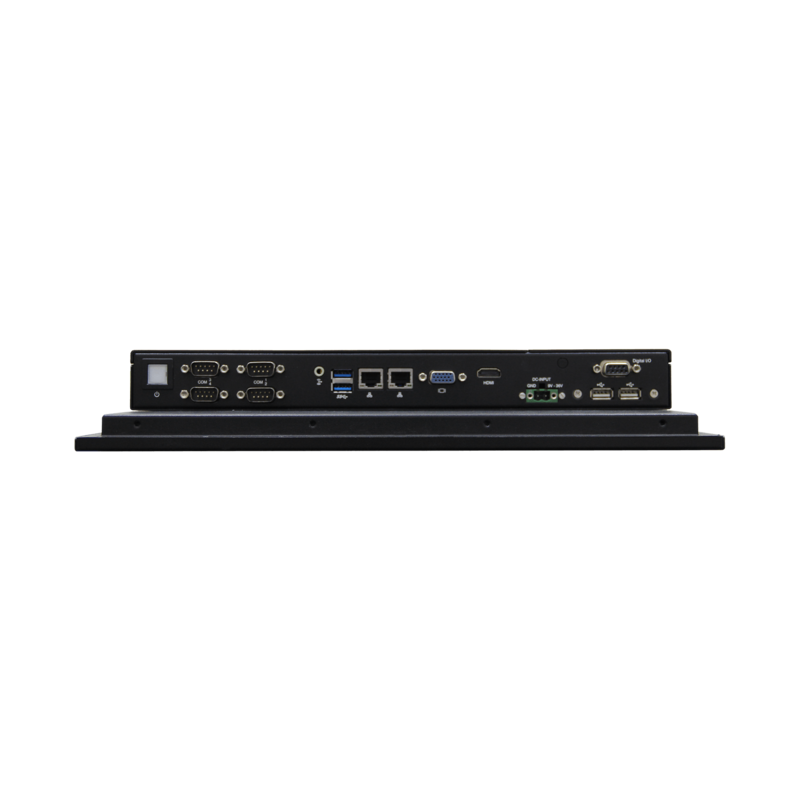

I/O Interface USB 2x USB 3.0 and 2x USB 2.0
Serial Port 3x RS 232 and 1x RS-232/422/485
Ethernet 2x GbE, 10/100/1000 Mbps (Realtek RTL8111G-CG)
Audio  Line out
GPIO / DIO 8-bit Digital I/O (DB-9 connector)
Storage 2.5" HDD / SSD 1x Internal 2.5” HDD/SSD
M.2 N/A
mSATA Supports either mSATA or full-size Mini PCIe, selected by jumper setting
RAID N/A
Expansion Mini PCIe Supports either mSATA or full-size Mini PCIe, selected by jumper setting
M.2 N/A
PCI / PCIe N/A
Power Power Supply Voltage 9-36V DC Input
Connector Type 2 Pins Terminal Block, Phoenix Connector
Power Consumption (Typical) 1.53A @ 12V (18.4W)
Mounting Type VESA / Panel Mount
Environment Operating Temperature -20~60° C (-4~140° F) w/ Extended Operation Temp RAM and 2.5” SSD
Storage Temperature -40~85°C (-40~185° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General Certification CE, FCC Class A, C.C.C.
Thermal Dissipation Fanless
Ingress Protection IP54
Dimensions (W x H x D) 364.6 x 290.6 x 58.7 mm (14.35” x 11.44” x 2.31”)
Net Weight 4.37 kg (9.6 lb) 4.31 kg (9.5 lb)
Operating System Windows 7/8/10 IoT , WES7 E/P, WE8S

Ordering Information

Part No. Description
PPC-152P-A1 15" 4:3 (1024 x 768), 300 nits, SECC IP54 Front Panel, Fanless Panel PC with Intel® Celeron J1900 CPU, Projected Capacitive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, Line Out, DC 9~36 V, Phoenix Connector
PPC-152R-A1 15" 4:3 (1024 x 768), 300 nits, SECC IP54 Front Panel, Fanless Panel PC with Intel® Celeron J1900 CPU, 5-wire Resistive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, Line Out, DC 9~36 V, Phoenix Connector

Packing List

Description
1x PPC-152

Optional Items

Part No. Description
ACS-PS-US Power Cable 3-pin, 180 cm, USA Type
ACS-PS-EU Power Cable 3-pin, 180 cm, Euro Type
ACS-PS-CN Power Cable 3-pin, 180 cm, China Type
ACS-100-STD VESA Table Stand
