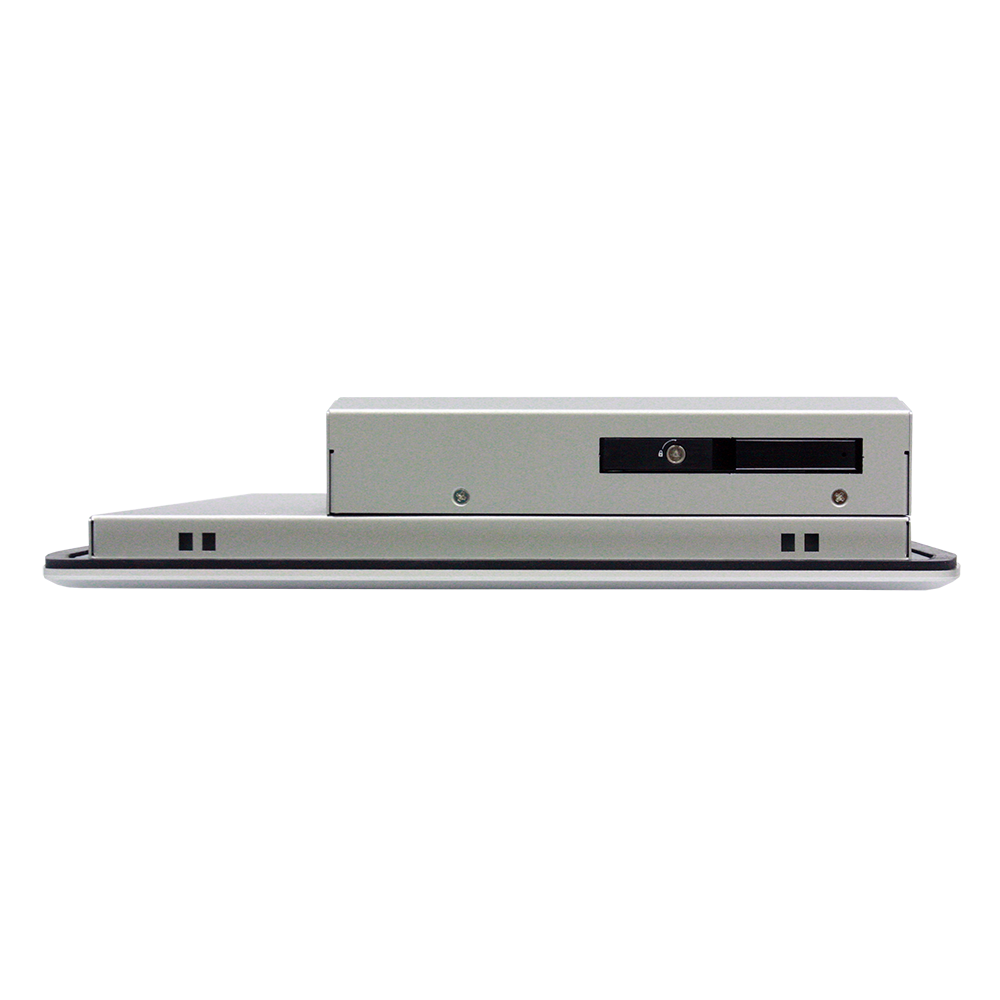

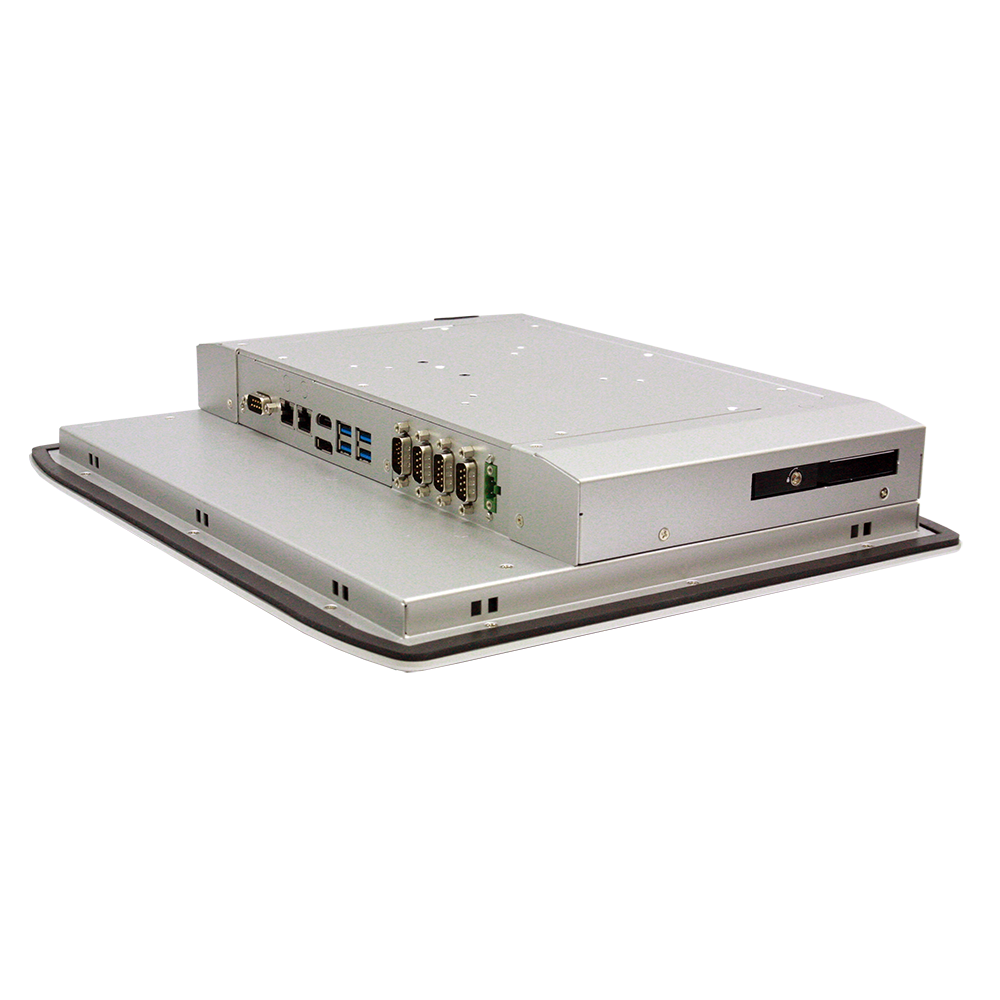

PPC-N157

Quote
Datasheet

Driver

Features

15” TFT XGA LED Panel with Projected Capacitive/Resistive Touch Display

Embedded Intel® Core® i5-7200U 3.1 GHz Processor

System Memory up to 32 GB DDR4 2133 SDRAM

Supports Aluminum Front Cover IP66 Protection

Internal SATA 2.5” HDD and M.2 Socket

Panel and VESA Mounting

Applications

Human Machine Interface (HMI)

Factory / Manufacturing Automation

ATM / Self-service / Kiosk Applications

Vending Machine / Ticketing Machine

Specifications
Ordering Information

Model		PPC-N157P-1A1	PPC-N157P-2A1	PPC-N157R-1A1	PPC-N157R-2A1
Processor System	CPU	Intel® Core® i5-7200U	Intel® Core® i3-7100U	Intel® Core® i5-7200U	Intel® Core® i3-7100U
	Frequency	Dual-Core up to 3.1GHz	Dual-Core up to 2.4GHz	Dual-Core up to 3.1GHz	Dual-Core up to 2.4GHz
	L2 Cache	3 MB
	System Chipset	N/A
	BIOS	UEFI
Memory	Technology	DDR4 2133 MHz SDRAM
	Max. Capacity	32 GB
	Socket	2 (260-pin SO-DIMM)
Display	Panel Size	15” LED Panel
	Resolution	1024 x 768 (XGA)
	Viewing Angle	80 x 80 (H) x 80 x 80 (V)
	Brightness	300 (cd/m2)
	Color Support	16.7M
	Contrast Ratio	600:1
	Response Time	8 (msec)
	DP	DP 1.2, Up to 3840 x 2160 @ 60Hz,
	HDMI	HDMI 2.0a, up to 4096 x 2160 @ 60Hz
	Dual Display	LCD + HMDI or LCD + DP
Touchscreen	Type	Projected Capacitive		5-Wire Resistive
	Surface Hardness	7 Mohs		3 Mohs
	Durability	-		36 millions times
	Transparency	90% (±3%)		80% (±3%)
I/O Interface	USB	4 USB 3.0
	Serial Port	4 COM (3 RS-232, 1 RS-232/422/485)
	Digital I/O	8-pin Digital I/O (DB-15 connector)
	Expansion	1 miniPCIe with SIM, 1 M.2 2230 A/E Key (Wifi & BT)
Ethernet	Controller	Dual GbE, 10/100/1000 Mbps (Intel i219V, i211AT)
Audio	Chipset	Realtek High Definition Audio (HD)
	Connector	Line out, Mic In
Storage	M.2	Supports 1 M.2 B/M Key 2280
	SATA III	1 Internal 2.5” HDD/SSD, Swappable HDD Box(Option)
Power	Power Adaptor	Supports 9-36 V DC input
	Connetor Type	2-pin Terminal Block
	Power Consumption (Typical)	1.22A @ 12V (14.68W)
	Power Consumption (Max)	2.43A @ 12V (29.53W)
	Battery	Lithium 3 V / 210 mAH
Environment	Operating Temperature	-20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & 2.5” SSD
	Storage Temperature	-40~85° C (-40~185° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
	Certification	CE,FCC Class A
General	Ingress Protection	Aluminum Front Cover IP66 Protection
	Dimensions (L x W x H)	386 x 316 x 64 mm (15.19" x 12.44" x 2.51")
	Weight	4.2 kg (9.25lb)
	Operating System	Windows 10 IoT

Packing List

Description

1 x PPC-N157

1 x Power Adapter & Power Cord

10 x Panel Mounting Screws

Ordering Information

Part No.
Description

PPC-N157P-1A1
15” Fanless P-Cap Touch Panel PC with Intel® Core® i5-7200U, 2 DDR4, 2 GbE, 4 USB 3.0, 3 RS-232,
1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector

PPC-N157P-2A1
15” Fanless P-Cap Touch Panel PC with Intel® Core® i3-7100U, 2 DDR4, 2 GbE, 4 USB 3.0, 3 RS-232,
1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector

PPC-N157R-1A1
15” Fanless 5-wire Resistive Touch Panel PC with Intel® Core® i5-7200U, 2 DDR4, 2 GbE, 4 USB 3.0,
3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector

PPC-N157R-2A1
15” Fanless 5-wire Resistive Touch Panel PC with Intel® Core® i3-7100U, 2 DDR4, 2 GbE, 4 USB 3.0,
3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector

Optional Items

Part No.
Description

AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size

AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size

AWD-WF001
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna, Half-size

AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size

AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type

AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type
