7th Gen. Intel® Core™ i5 Quad-core up to 3.1 GHz
Up to 4 Gigabit Ethernet Ports
Dual Independent Displays, Supporting 4K Resolution
Supports 8-bit GPIO
1x mini-PCIe and 2x M.2 Expansion Slots
Features
Applications
Embedded Digital Signage Control SystemsFactory AutomationImage ProcessingGaming and Entertainment IndustriesMachine Automation | Model | BPC-3072-1A1 | BPC-3072-2A1 | BPC-3072-3A1 | ||
| Processor System | CPU | IIntel® Core® i5-7200U | Intel® Core® i3-7100U | ||
| Frequency | Duad-core up to 3.1 GHz | Duad-core up to 2.4 GHz | |||
| System Chipset | N/A | ||||
| Cache | 3 GB | ||||
| BIOS | UEFI | ||||
| Memory | Technology | Dual Channel DDR4 2133 MHz SDRAM | |||
| Max. Capacity | 32 GB | ||||
| Type | 2x 260-pin SO-DIMM | ||||
| Display | Graphics Engine | Intel® HD Graphics 620 | |||
| HDMI | 1x HDMI 2.0, up to 4096 x 2160 @ 60 Hz | ||||
| DP | 1x DP, up to 4096 x 2160 @ 60 Hz | ||||
| VGA | N/A | ||||
| DVI | N/A | ||||

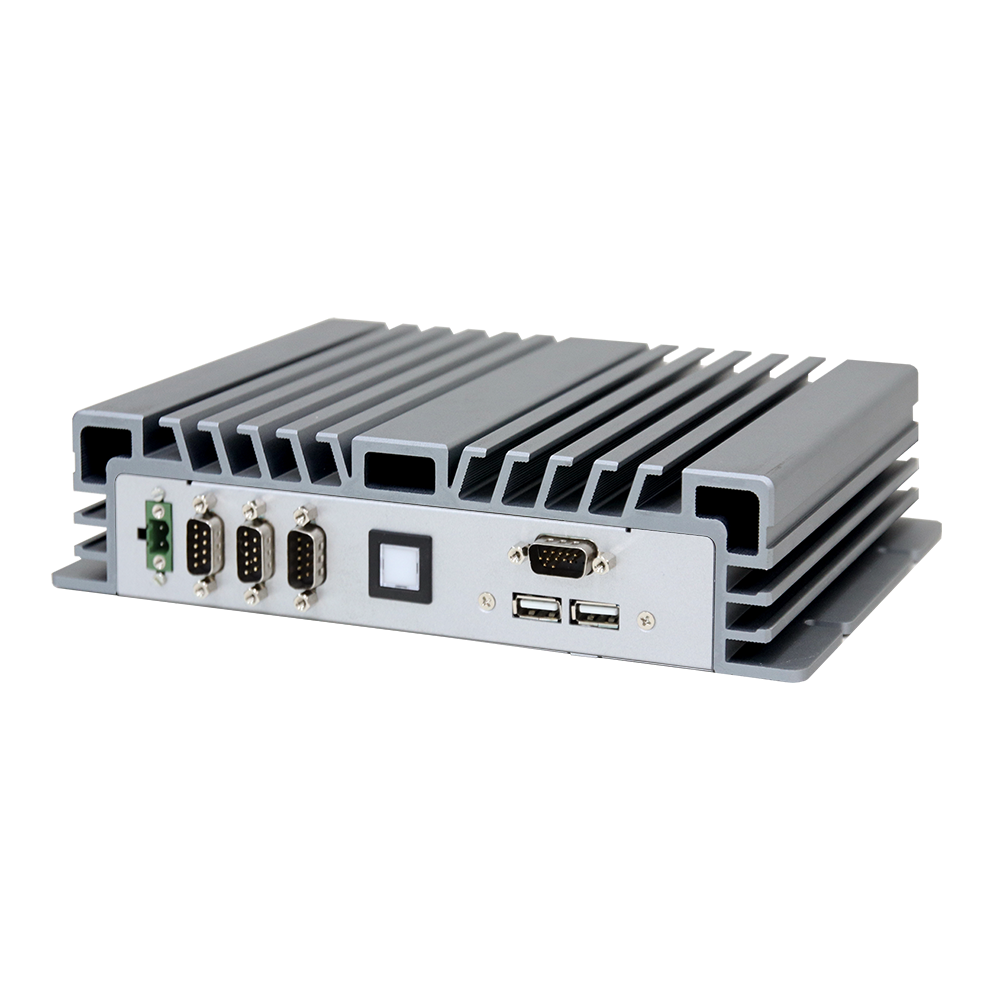

| Front I/O Interface | USB | 2x USB 2.0 | |||
| Serial Port | 3x RS 232 | 1x RS-232 | 3x RS-232 | ||
| Ethernet | N/A | 2x GbE (Intel® i210) | N/A | ||
| Audio | N/A | ||||
| GPIO / DIO | 1x 8-bit GPIO (DB-15) | ||||
| Antenna Hole | 2 | ||||
| Others | N/A | ||||

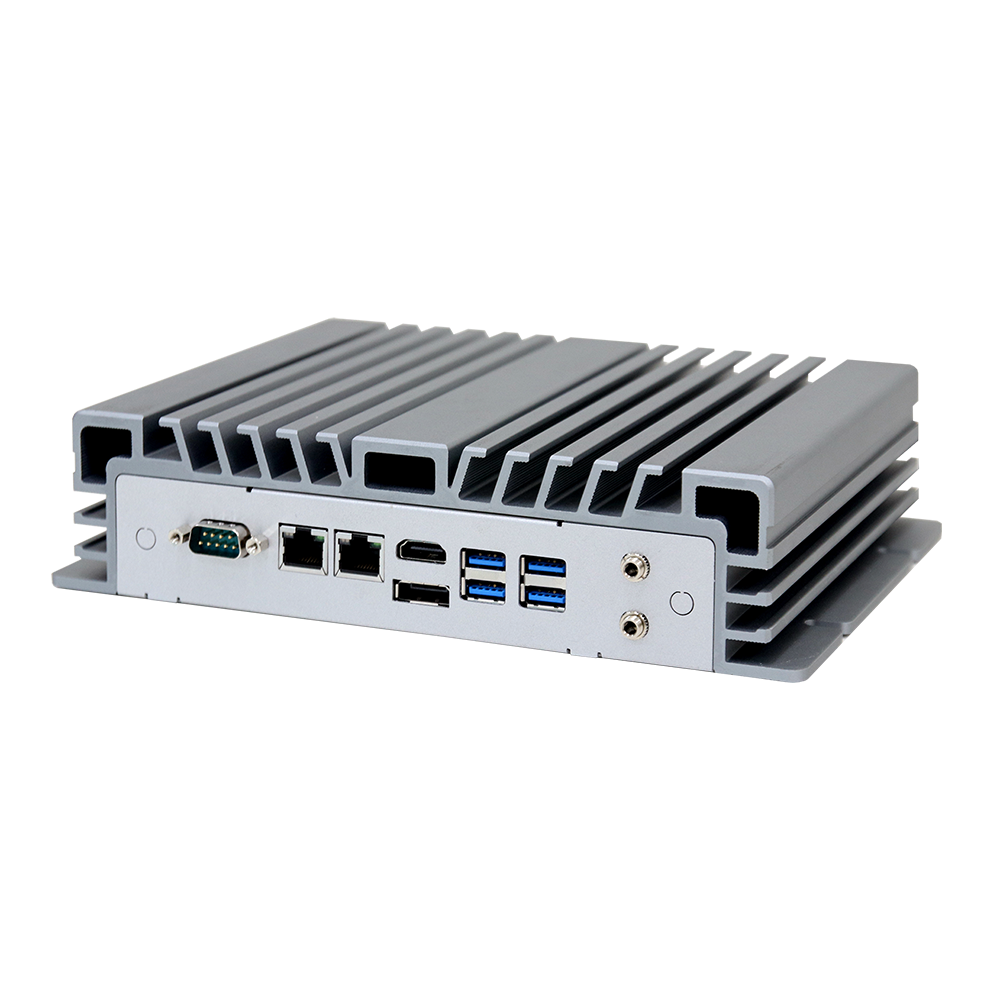

| Rear I/O Interface | USB | 4x USB 3.0 | |||
| Serial Port | 1x RS232/422/485 | ||||
| Ethernet | 2x GbE (LAN 1: Intel® i219V, LAN 2: Intel® i211AT) | 2x GbE (LAN 1: Intel® i219V, LAN 2: Intel® i211AT) | 2x GbE (LAN 1: Intel® i219V, LAN 2: Intel® i211AT) | ||
| Audio | Line Out, Mic In (Realtek ALC269) | ||||
| GPIO / DIO | N/A | ||||
| Antenna Hole | N/A | ||||
| Others | N/A | ||||
| Storage | 2.5" HDD / SSD | 1x SATA III (6.0 Gb/s) | |||
| M.2 | 1x M.2 2280 M Key (PCIe x4, SATA III) | ||||
| mSATA | N/A | ||||
| RAID | N/A | ||||
| Expansion | Mini PCIe | 1x Full Size (PCIe x 1, USB2.0) | N/A | 1x Full Size (PCIe x 1, USB2.0) | |
| M.2 | 1x M.2 2230 E Key | ||||
| PCI / PCIe | N/A | ||||
| SIM Holder | 1 | N/A | 1 | ||
| Power | Power Mode | AT / ATX | |||
| Power Supply Voltage | 9-36V DC Input | ||||
| Connector Type | Phoenix Connector | ||||
| Power Consumption (Typical) | 1.1 A @ 12 V (13.2 W) | 1.20A @ 12V (14.4 W) | 1.1 A @ 12 V (13.2 W) | ||
| Mounting | Type | Wall Mount | |||
| Environment | Operating Temperature | -20~60° C (-4~140° F) w/ Extend Temp. RAM & Extend Temp. 2.5” SSD (Humidity: 60° C @ 80% RH Non-condensing | |||
| Storage Temperature | -40~85° C (-40~185° F) | ||||
| Humidity | 5~95% @ 40° C, Non-condensing | ||||
| Vibration | 1 Grms, IEC 60068-2-64, Random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes | ||||
| Shock | 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration | ||||
| General | Certification | CE, FCC Class A | |||
| Thermal Dissipation | Fanless System | ||||
| Material | Extruded Aluminum | ||||
| Dimensions (W x H x D) | 238 x 55 x 155 mm (9.37” x 2.16” x 6.1”) | ||||
| Net Weight | 1.77 kg (3.90 lb) | 1.97 kg (4.34 lb) | 1.77 kg (3.90 lb) | ||
| Operating System | Windows 10 (IoT/Professional), Linux | ||||
Ordering Information
| Part No. | Description |
| BPC-30721A1 | Intel® Core® i5-7200U 3.1 GHz Dual-core CPU, 4x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, Line Out, Mic In, DC 9~36V, Phoenix Connector |
| BPC-3072-2A1 | Intel® Core® i5-7200U 3.1 GHz Dual-core CPU, 4x USB3.0, 2x USB2.0, 1x RS-232, 1x RS-232/422/485, 4x GbE, 1x DP, 1x HDMI, 8-bit GPIO, Line Out, Mic In, DC 9~36V, Phoenix Connector |
| BPC-3072-3A1 | Intel® Core® i3-7100U 2.4 GHz Dual-core CPU, 4x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, Line Out, Mic In, DC 9~36V, Phoenix Connector |
Packing List
| Description | |
| 1x BPC-3072 |
Optional Items
| Part No. | Description |
| AWD-4G003 | 4G(LTE) EG25-G + 2 Antennas, Full Size (for Global) |
| AWD-WF001 | Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size |
| AWD-WF003 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size |
| AWD-WF004 | Wi-Fi 802.11 b/g/n + BT4.0 (1T1R) + 2 Antennas (Single Band), M.2 2230 Type |
| AWD-WF005 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), M.2 2230 Type |
