MERA-3100

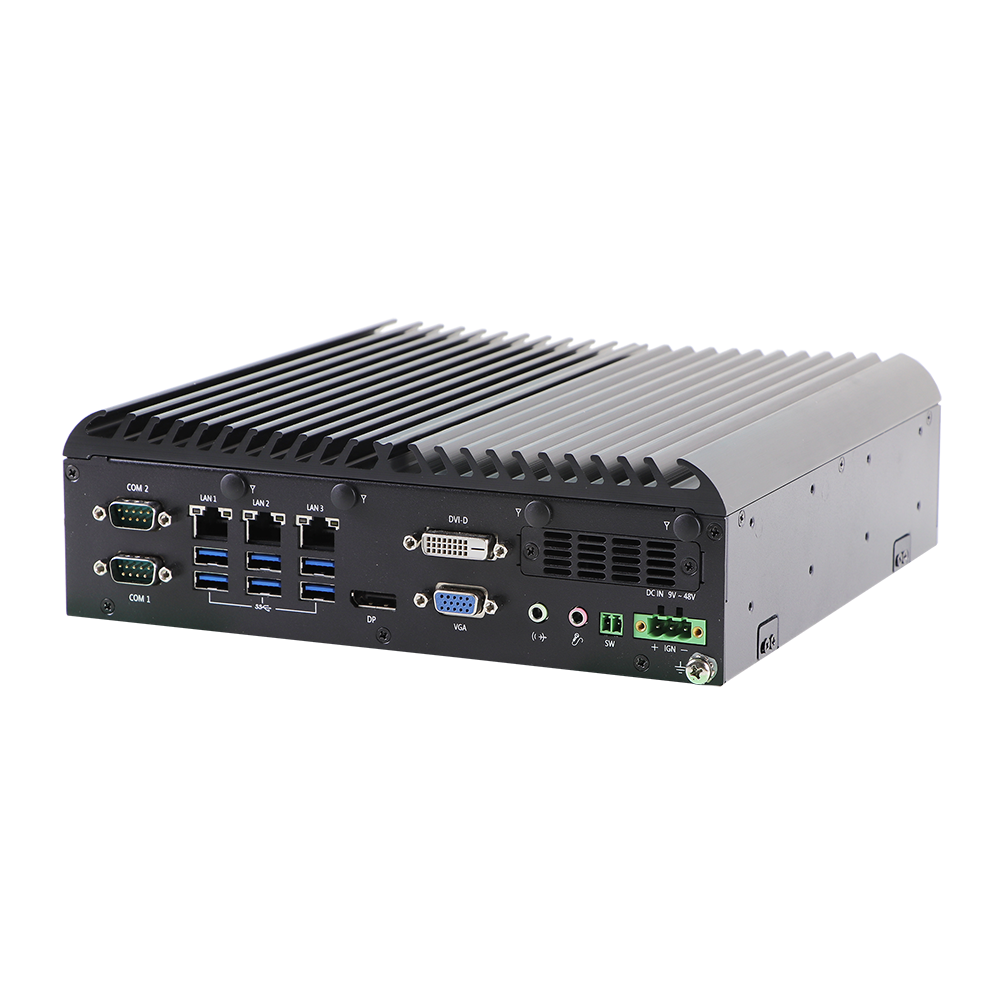

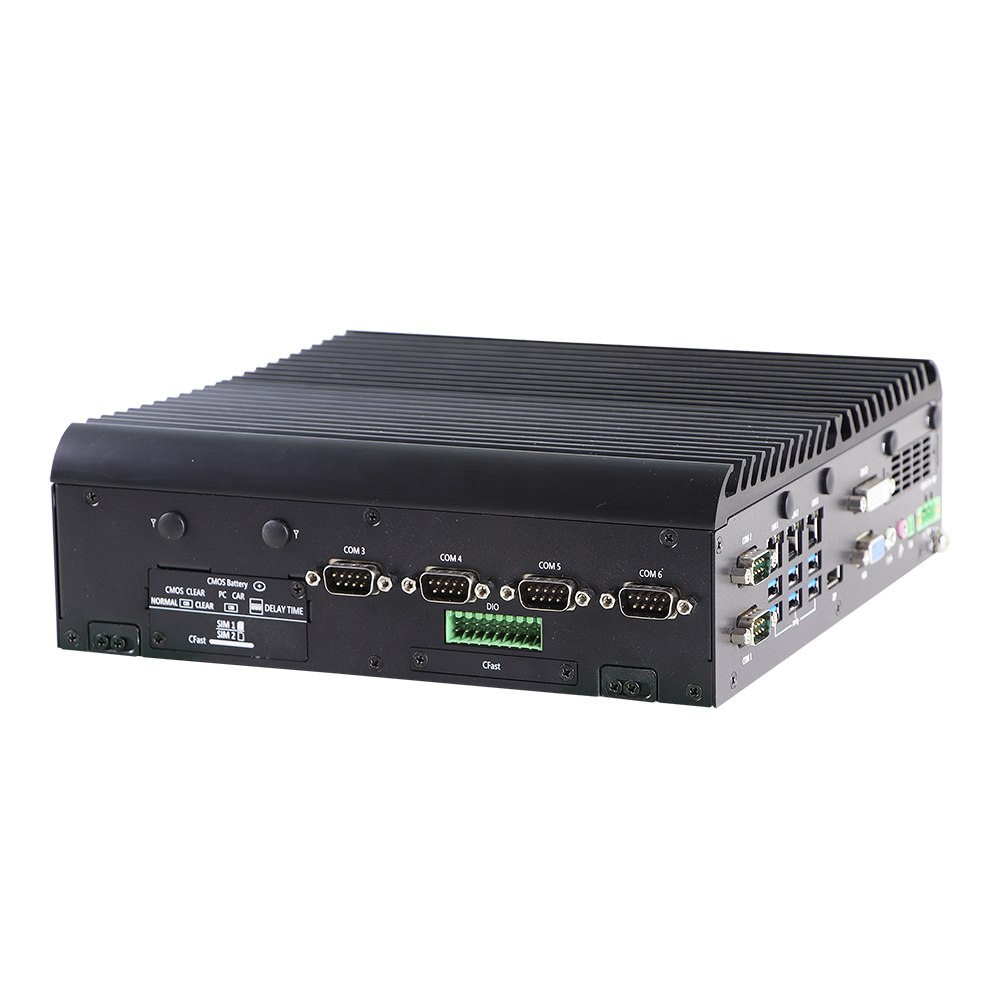

Name: MERA-3100 Series, Modular Embedded Computers with Core i
Brand: Arestech Solution Inc.
SKU: MERA-3100

Product Comparison

MERA Series

MERA-3100

Modular Embedded Computers with Intel® 9th / 8th LGA1151 Processor

Quote
Datasheet

Driver

Features

Supports 9th / 8th Gen Intel^® LGA 1151 Processors

IEEE 802.3at PoE+, up to 25.5W DC Power to Device

GbE Supports Wake-on-LAN and PXE

Cable-free and Jumper-less Design to Enhance Reliability

Supports VGA, DVI, and DP

Multiple Storage Capability (SATA HDD, mSATA / CFast)

9~48V DC Input with Power Ignition Function

-40°C ~ 70°C Wide Operating Temperature

Applications

Digital Signage Control Systems

Factory Automation

Image Processing

Gaming and Entertainment Industries

Network Communications

Specifications
Ordering Information

Model		MERA-3100-3L/ MERA-3110-3L	MERA-3110-7L/ MERA-3110-3L-4ML	MERA-3110-11L/ MERA-3110-3L-8ML
Processor System	CPU	LGA 1151 Processors 9th / 8th Intel® Core™ i3 / i5 / i7 Desktop 35W
	System Chipset	Intel^® Q370 Express
	BIOS	AMI BIOS,256Mbit SPI Flash ROM Built on Board
Memory	Technology	Dual Channel DDR4 2400/2666 MHz SO-DIMM
	Max. Capacity	64 GB (Un-buered and Non-ECC)
	Socket	2x DDR4 260-pin SO-DIMM
Display	Graphics Engine	Integrated Intel^® UHD Graphics 630 (Core™ i7/ i5/ i3) Integrated Intel^® UHD Graphics 610 (Pentium/ Celeron)
	VGA	1x VGA, up to 1920 x 1200
	DVI	1x DVI-D, up to 1920 x 1200
	HDMI	N/A
	DP	1x DP, up to 4096 x 2160
I/O Interface	USB	6x USB3.2 and 2x USB2.0
	Serial Port	6x COM (RS-232/422/485), with Auto Flow Control, DB9
	GPIO	8x Isolated DI and 8x Isolated DO Port, 2x9-pin Terminal Block
	Ethernet	3x GbE w/ RJ45, Support Wake-on-LAN and PXE GbE1: Intel^® i219-LM GbE2~GbE3: Intel^® i210-AT	7x GbE w/ RJ45 (MERA-3110-7L), Support Wake-on-LAN and PXE 3x GbE w/ RJ45 and 4x GbE w/ M12 (MERA-3110-3L-4ML), Support Wake-on-LAN and PXE GbE1: Intel^® i219-LM GbE2~GbE3: Intel® i210-AT GbE4~GbE7: Intel^® i350-AM4 (Module)	11x GbE w/ RJ45 (MERA-3110-11L), Support Wake-on-LAN and PXE 3x GbE w/ RJ45 and 8x GbE w/ M12 (MERA-3110-3L-8ML), Support Wake-on-LAN and PXE GbE1: Intel^® i219-LM GbE2~GbE3: Intel^® i210-AT GbE4~GbE11: Intel^® i350-AM4 (Module)
	Audio	Line Out, Mic In
	CMOS Battery	1x Removable CMOS Battery
	Antenna Hole	12 (MERA-3100-3L) 8 (MERA-3110-3L)	8	8
	Flexible I/O Window Slot	1
	Others	1x External Clear CMOS Switch
Expansion	Mini-PCIe	2x Full-size Mini-PCIe Sockets (mux with mSATA) and 2x Full-size Mini-PCIe Sockets
	M.2	N/A
	PCI / PCIe	N/A
	SIM Holder	4
Storage	2.5" SATA HDD Bay	1x Removable and 1x Internal (MERA-3100-3L) 4x Removable (MERA-3110-3L)	4x Removable	4x Removable
	RAID	RAID 0, 1, 5, 10
	CFast/mSATA	2x CFast Sockets (Shared by 2x mSATA)
	M.2	N/A
Power	Power Mode	AT / ATX
	Remote Power	1x Remote Power On/Off Connector, 2-pin Terminal Block
	Power Supply Voltage	9~48V DC
	Connector Type	1x 3-pin Terminal Block Connector
	Power Ignition	Power Ignition Sensing
	Protection	Over Voltage Protection (OVP) up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A
	Car Mode	1x PC/Car Mode Switch
Mounting	Type	Wall Mount / Stand Mount
Environment	Operating Temperature	35W CPU: -40~70° C (-40~158° F) 65W CPU: -40~60° C (-40~140° F) (Optional External Fan Kit Is Required)
	Storage Temperature	-40~85° C (-40~185° F)
	Humidity	10%~95%, Non-condensing
	Vibration	5 Grms, 5-500 Hz, 3 Axis
	Shock	50 Grms, Half-sine 11 ms
General	Certification	CE/FCC
	Thermal Dissipation	Fanless System (35W)；Fanbased System (65W)
	Material	Extruded Aluminum with Heavy Duty Metal
	Dimensions (W x H x D)	241.5 x 73 x 230 mm (9.50" x 2.87" x 9.06")	241.5 x 92.6 x 230 mm (9.50" x 3.65" x 9.06")	241.5 x 92.6 x 230 mm (9.50" x 3.65" x 9.06")
	Net Weight	3.3 kg (7.28 Ib) (MERA-3100-3L) 3.95 kg (8.71 Ib) (MERA-3110-3L)	4.15 kg (9.15 Ib) (MERA-3110-7L) 4.35 kg (9.59 Ib) (MERA-3110-3L-4ML)	4.35 kg (9.59 Ib) (MERA-3110-11L) 4.55 kg (10.03 Ib) (MERA-3110-3L-8ML)
	Operating System	Windows 10 (IoT / Professional), Linux

Model		MERA-3110-3L-4P/ MERA-3110-3L-4MP	MERA-3110-3L-8P/ MERA-3110-3L-8MP
Processor System	CPU	LGA 1151 Processors 9th / 8th Intel® Core™ i3 / i5 / i7 Desktop 35W
	System Chipset	Intel^® Q370 Express
	BIOS	AMI BIOS, 256Mbit SPI Flash ROM Built on Board
Memory	Technology	Dual Channel DDR4 2400/2666 MHz SO-DIMM
	Max. Capacity	64 GB (Un-buered and Non-ECC)
	Socket	2x DDR4 260-pin SO-DIMM
Display	Graphics Engine	Integrated Intel® UHD Graphics 630 (Core™ i7/ i5/ i3) Integrated Intel® UHD Graphics 610 (Pentium/ Celeron)
	VGA	1x VGA, up to 1920 x 1200
	DVI	1x DVI-D, up to 1920 x 1200
	HDMI	N/A
	DP	1x DP, up to 4096 x 2160
I/O Interface	USB	6x USB3.2 and 2x USB2.0
	Serial Port	6x COM (RS-232/422/485), with Auto Flow Control, DB9
	GPIO	8x Isolated DI and 8x Isolated DO Port, 2x9-pin Terminal Block
	Ethernet	3x GbE w/ RJ45, Support Wake-on-LAN and PXE GbE1: Intel® i219-LM GbE2~GbE3: Intel® i210-AT
	PoE+	4x IEEE 802.3at PoE+ (25.5W), Support Wake-on-LAN and PXE GbE4~GbE7: Intel® i350-AM4 GbE (Module) 4x PoE+ w/ RJ45 (MERA-3110-3L-4P) 4x PoE+ w/ M12 (MERA-3110-3L-4MP)	8x IEEE 802.3at PoE+ (25.5W), Support Wake-on-LAN and PXE GbE4~GbE11: Intel® i350-AM4 GbE (Module) 8x PoE+ w/ RJ45 (MERA-3110-3L-8P) 8x PoE+ w/ M12 (MERA-3110-3L-8MP)
	Audio	Line Out, Mic In
	Antenna Hole	8
	Flexible I/O Window Slot	1
	Others	1x Removable CMOS Battery and 1x External Clear CMOS Switch
Expansion	Mini-PCIe	2 x Full-size Mini-PCIe Sockets (mux with mSATA) and 2x Full-size Mini-PCIe Sockets
	M.2	N/A
	PCI / PCIe	N/A
	SIM Holder	4
Storage	2.5" SATA HDD Bay	4x Removable
	RAID	RAID 0, 1, 5, 10
	CFast / mSATA	2x CFast Sockets (Shared by 2x mSATA)
	M.2	N/A
Power	Power Mode	AT / ATX (Supporting Hardware AT, ATX Power Mode)
	Remote Power	1x Remote Power On/Off Connector, 2-pin Terminal Block
	Power Supply Voltage	9~48V DC
	Connector Type	1x 3-pin Terminal Block Connector
	Power Ignition	Power Ignition Sensing
	Protection	Over Voltage Protection (OVP) up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A
	Car Mode	1x PC/Car Mode Switch
Mounting	Type	Wall Mount / Stand Mount
Environment	Operating Temperature	35W CPU: -40~70° C (-40~158° F) 65W CPU: --40~60° C (-40~140° F) (Optional External Fan Kit Is Required)
	Storage Temperature	-40~85° C (-40~185° F)
	Humidity	10%~95%, Non-condensing
	Vibration	5 Grms, 5-500 Hz, 3 Axis
	Shock	50 Grms, Half-sine 11 ms
General	Certification	CE/FCC
	Thermal Dissipation	Fanless System (35W)；Fanbased System (65W)
	Material	Extruded Aluminum with Heavy Duty Metal
	Dimensions (W x H x D)	241.5 x 92.6 x 230 mm(9.50" x 3.65" x 9.06")
	Net Weight	4.2 kg (9.26 Ib) (MERA-3110-3L-4P) 4.4 kg (9.70 Ib) (MERA-3110-3L-4MP)	4.45 kg (9.81 Ib) (MERA-3110-3L-8P) 4.65 kg (10.25 Ib) (MERA-3110-3L-8MP)
	Operating System	Windows 10 (IoT / Professional), Linux

Ordering Information

Part No.	Description
MERA-3100-3L	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 1x Removable 2.5” SATA HDD Bay, 1x Internal 2.5” SATA HDD Bay, DC 9~48V, Terminal Block Connector
MERA-3110-3L	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-7L	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.2, 2x USB2.0, 6x RS232/422/485,7x GbE, 1x DVI-D, 1x DP, 1x VGA, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-3L-4P	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.2, 2x USB2.0, 6x RS232/422/485, 3x GbE, 4x PoE+, 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-3L-4ML	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 7x GbE (3x GbE w/ RJ45 + 4 GbE w/ M12), 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-3L-4MP	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 3x GbE, 4x PoE+ w/M12, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-11L	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 11x GbE, 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-3L-8P	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 3x GbE, 8x PoE+, 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-3L-8ML	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 11x GbE (3x GbE w/ RJ45 + 8x GbE w/ M12), 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector
MERA-3110-3L-8MP	Intel® 9th/8th Core™ i LGA1151 CPU, Q370 Fanless Box PC, 6x USB3.0, 2x USB2.0, 6x RS232/422/485, 3x GbE, 8x PoE+ w/ M12, 1x DP, 1x VGA, 1x DVI-D, 1x Flexible I/O Window Slot, 4x Removable 2.5” SATA HDD Bays, DC 9~48V, Terminal Block Connector

Packing List

Description
1 x MERA-3100 Series Machine
1 x Wall Mount Kit

Optional Items

Part No.	Description
AWD-4G003	4G(LTE) EG25-G + 2 Antennas, Full Size (for Global)
AWD-4G004	4G(LTE) EC25EFA + 2 Antennas, Full Size (for Europe/Taiwan/China/Hong Kong)
AWD-WF001	Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size
AWD-WF003	Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size
i7-9700TE	Intel® Core™ i7-9700TE (8-core, up to 3.8 GHz, 35W TDP)
i5-9500TE	Intel® Core™ i5-9500TE (6-core, up to 3.6 GHz, 35W TDP)
i7-8700T	Intel® Core™ i7-8700T (6-core ,up to 4.0 GHz, 35W TDP)
i5-8500T	Intel® Core™ i5-8500T (6-core, up to 3.5 GHz, 35W TDP)
i3-8100T	Intel® Core™ i3-8100T (4-core, up to 3.1 GHz, 35W TDP)
55000-0023-M5	Adapter AC/DC 24V 5A 120W with 3-pin Terminal Block Plug 5.0mm Pitch
55000-0024-M5	Adapter AC/DC 24V 9.2A 220W with 3-pin Terminal Block Plug 5.0mm Pitch
30100-0003-CA	Power Cord, 3-pin US Type, 180 cm
30101-0005-CA	Power Cord, 3-pin EU Type, 180 cm
5E400-0004-AV	External Fan Module Kit for MEVA (MERA) Series (92 x 92 x 25 mm)
