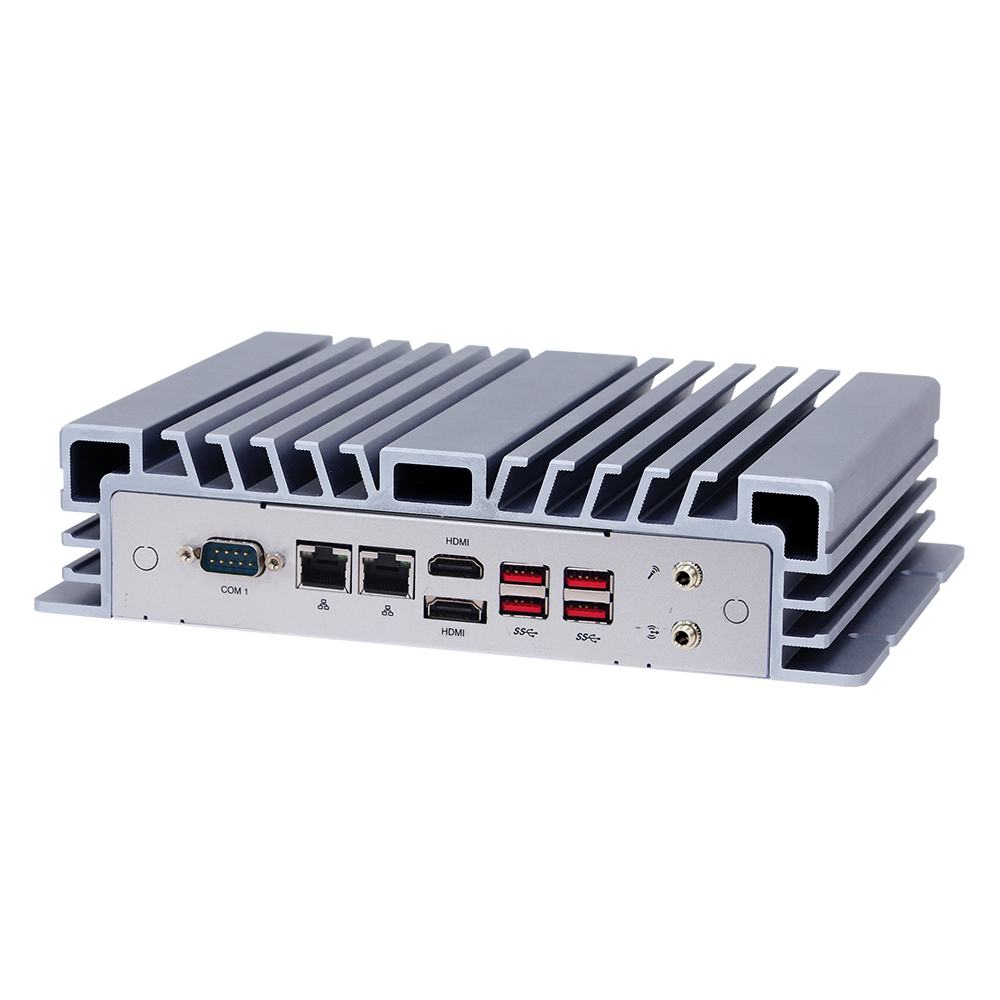

BPC-3080
Fanless Compact Embedded Box PC with 8th Generation Wiskylake-U 4 Cores Intel® Core™ i5 Processor & Multiple I/O
Embedded Box PC
BPC-3080
Features
8th Generation Intel® Core™ i5 Processor up to 3.9
Dual DDR4 2400 MHz SO-DIMM up to 32 GB
M.2 and 2.5” SATA HDD or SSD (Option)
-20 ~ 60° C Operating Temperature
Applications
Embedded Digital Signage Control SystemsFactory Automation ApplicationsImage Processing(e.g. Medical 2D and 3D imaging)Gaming and Entertainment IndustriesNetwork Communications | Model | BPC-3080-1A1 | ||||||
| Processor System | CPU |
Intel® 8th Gen Core™ i5-8265U |
|||||
| System Chipset | N/A | ||||||
| BIOS | AMI 1 28 Mbit SPI Flash | ||||||
| Memory | Technology | Dual channel DDR4 SO-DIMM sockets | |||||
| Max. Capacity | 32 GB | ||||||
| Socket | 2 DDR4 260-pin SO-DIMM | ||||||
| Display | Graphics Engine | Intel® UHD Graphics 620 | |||||
| VGA |
N/A |
||||||
| DVI-D |
N/A |
||||||
| HDMI |
2, HDMI1.4 port, Up to 4096x2304@24Hz |
||||||
|
Display Port |
LCD panel + HDMI |
||||||
|
Multi Display |
Yes |
||||||
| Front I/O Interface | USB | 2 USB 2.0 | |||||
| Serial |
4, COM (3 RS232, 1 RS-232/422/485) |
||||||
| GPIO | 8 bits GPIO | ||||||
|
Ethernet |
N/A |
||||||
|
Audio |
Lin out, Mic in |
||||||
|
Others |
N/A |
||||||
|
Rare I/O Interface |
USB |
4 USB 3.1 Gen 2 |
|||||
|
Serial |
N/A |
||||||
|
GPIO |
N/A |
||||||
|
Ethernet |
Dual GbE, 10/100/1000 Mbps (LAN 1: Intel® i219V, LAN 2: Intel i211AT) |
||||||
|
Audio |
2 (Mic-in. Line-out) |
||||||
| Others | N/A | ||||||
|
Expansion |
miniPCIe/ M.2 Slot |
1 x Mini-PCIe, 1 M.2 2230 E-Key (WiFi/BT) | |||||
|
PCI/ PCIe Slot |
N/A |
||||||
|
Storage |
HDD/SSD | 1 HDD/SSD SATA 3.0 (600 MB/sec) | |||||
| RAID | N/A | ||||||
| mSATA/M.2 | 1 M.2 2280 M-Key, (SATA) | ||||||
|
Power |
Power On Model | AT/ATX | |||||
| Power Supply Voltage | 12-24 V DC input | ||||||
| Power Consumption (Typical) | 1.20A @ 12V (14.4W) | ||||||
| Power Consumption (Max.) | |||||||
| 5.08 @ 12V (61W) | |||||||
| Battery |
CR2032; 3.3V |
||||||
|
Power Connector Type |
AT / ATX |
||||||
| Mounting | Type | Desk mounting | |||||
|
Environment |
Operating Temperature | -20~60° C (-4~140° F) w/ Extend Temp. RAM & Extend Temp. 2.5” SSD(Humidity: 60° C @ 80% RH Non-condensing | |||||
| Storage Temperature |
-40~85° C (-40~185° F) |
||||||
| Humidity | 5~95% @ 40° C, non-condensing | ||||||
|
Vibration |
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes |
||||||
|
Shock |
20 G, IEC 60068-2-27, half sine, 11 ms duration |
||||||
| General | Certification | N/A | |||||
| Thermal Dissipation | Fan based System | ||||||
|
Ingress Protection |
IP20 Proctection |
||||||
|
Dimensions (W x H x D) |
238 x 55 x 155 mm (9.37” x 2.16” x 6.1”) |
||||||
| Net Weight | 1.97 kg (4.34 lb) | ||||||
| Operating System |
Windows 10 IoT, Linux, Windows 10 Professional |
||||||
Packing List
Description
1 x BPC-3080
1 x Power Cord
1 X Power adapter
2 x Mounting Bracket
Ordering Information
Part No.
Description
BPC-3080-1A1
Intel® 8th Gen Core™ i5-8265U, 2 DDR4 memory, 4 USB3.1 Gen 2, 2 USB2.0, 2 HDMI, 3RS232,
1 RS-232/422/485, 8bits GPIO, 2 GbE, Line out, Mic In, 12-24 V DC input, Phoenix Connector
Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size mini PCIe
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size mini PCIe
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module+2 Antennas (Dual band), Half-size mini PCIe
AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R)+2 Antenna(Single band), M.2 2230 Type
AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R)+2 Antenna(Dual band), M.2 2230 type
Packing List
Description
1 x BPC-3080
1 x Power Cord
1 X Power adapter
2 x Mounting Bracket
Ordering Information
Part No.
Description
BPC-3080-1A1
Intel® 8th Gen Core™ i5-8265U, 2 DDR4 memory, 4 USB3.1 Gen 2, 2 USB2.0, 2 HDMI, 3RS232,
1 RS-232/422/485, 8bits GPIO, 2 GbE, Line out, Mic In, 12-24 V DC input, Phoenix Connector
Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size mini PCIe
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size mini PCIe
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module+2 Antennas (Dual band), Half-size mini PCIe
AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R)+2 Antenna(Single band), M.2 2230 Type
AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R)+2 Antenna(Dual band), M.2 2230 type
| Description |
| 1 x BPC-3080 |
| 1 x Power Cord |
|
1 X Power adapter |
|
2 x Mounting Bracket |
| Part No. | Description |
| BPC-3080-1A1 |
Intel® 8th Gen Core™ i5-8265U, 2 DDR4 memory, 4 USB3.1 Gen 2, 2 USB2.0, 2 HDMI, 3RS232, 1 RS-232/422/485, 8bits GPIO, 2 GbE, Line out, Mic In, 12-24 V DC input, Phoenix Connector |
|
Part No. |
Description |
|
AWD-3G002 |
3G (HSPA+) Module + 1 Antenna, Full-size mini PCIe |
|
AWD-4G001 |
4G (LTE) Module + 2 Antennas, Full-size mini PCIe |
|
AWD-WF001 |
Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe |
|
AWD-WF003 |
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module+2 Antennas (Dual band), Half-size mini PCIe |
|
AWD-WF004 |
Wi-Fi 802.11 b/g/n + BT4.0(1T1R)+2 Antenna(Single band), M.2 2230 Type |
|
AWD-WF005 |
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R)+2 Antenna(Dual band), M.2 2230 type |
