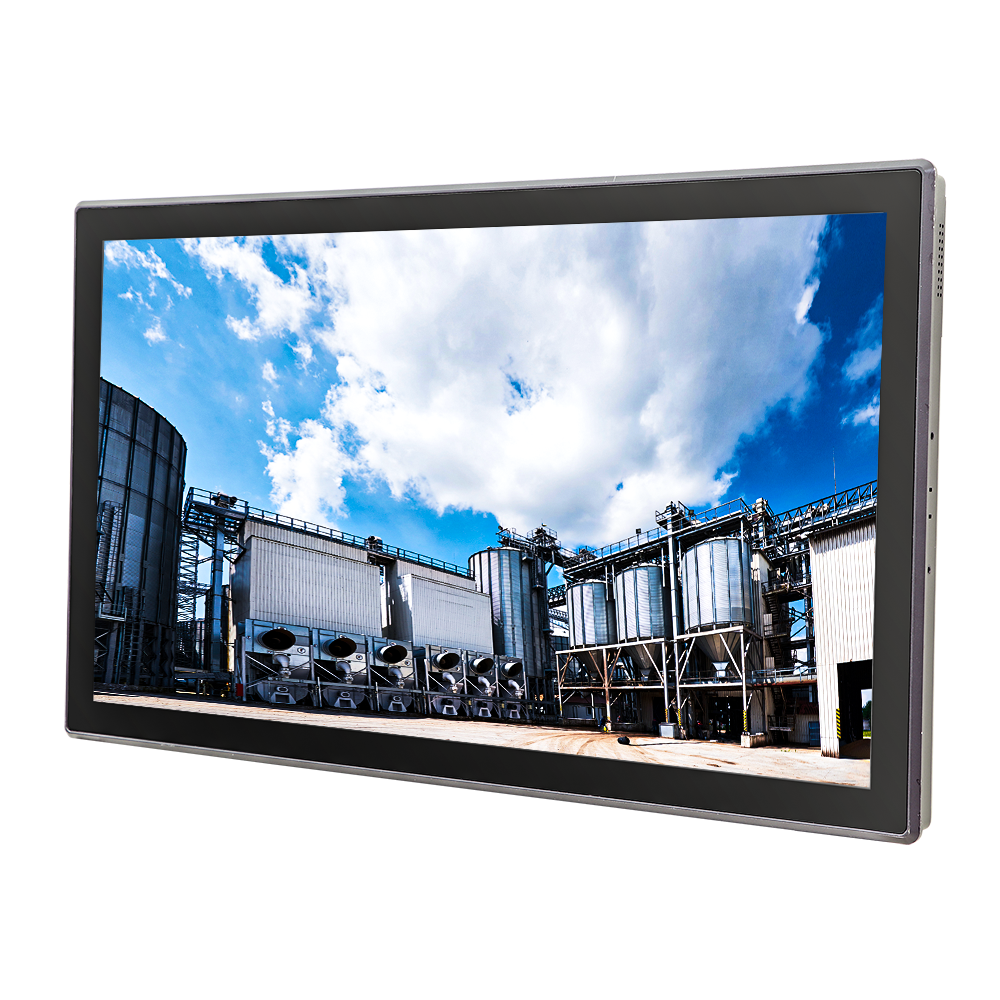

Patented Display Conversion Device (DCD) Technology
Designed with Aluminum Die-casting Ultra-thin Front Frame
IP65 True Flat Front Panel for waterproof and dustproof
Projected Capacitive Touchscreen
1920 x 1080 Resolution and 1600nits Brightness
Connectors for Display On/Off and External OSD Control
2 x 2W Internal Speakers
-20°C to 60°C Operating Temperatur
Features
Applications
Outdoor Digital SinageOutdoor Self-Service KioskSmart AgricultureRailway Signal and Control
HMI Solution|
Model |
SM-115PW |
|||||
|
Display |
Panel Size |
15.6” |
||||
|
Panel Type |
LCD Panel |
|||||
|
Aspect Ratio |
16:9 |
|||||
|
Resolution |
1920 x 1080 (FHD) |
|||||
|
Viewing Angle |
170 (H) x 170 (V) |
|||||
|
Brightness |
1600cd/m2 |
|||||
|
Contrast Ratio |
800 : 1 |
|||||
|
Color Support |
16.7 M |
|||||
|
Touchscreen
|
Touchscreen Type |
Projected Capacitive (PCAP) |
||||
|
Surface Hardness |
7 Mohs |
|||||
|
Transparency |
90% (±3%) |
|||||
|
System |
OSD Control |
Touch Monitor On/Off, Auto, Menu, Up and Down, Multi-language OSD |
||||
|
Speaker |
2 x 2W Internal Speakers |
|||||
|
Environment |
Operating Temperature |
-20°C to 60°C (-4~140° F) |
||||
|
Storage Temperature |
-20°C to 70°C (-4~158° F) |
|||||
|
Humidity |
10 ~80% (Non-condensing) |
|||||
|
Vibration |
1.5 Grms, 5-500 Hz, 3 Axis |
|||||
|
Shock |
20 Grms, Half-sine 11 ms |
|||||
|
General
|
Certification |
CE / FCC |
||||
|
Ingress Protection |
IP 65 Compliant Front Panel |
|||||
|
Material |
Front Panel Construction: Die-casting Flat Surface |
|||||
|
Mounting |
Panel Mounting |
|||||
|
Dimensions (W x H x D) |
393 x 254 x 29.5mm |
|||||
|
Net Weight |
3.85 kg |
|||||
Ordering Information
| Part No. | Description |
| SM-115PW | 15.6" 16:9 FHD (1920 x 1080), 1600nits, PCAP Touchscreen |
Packing List
| Description | |
| 1x SM-115PW | |
| 1x Panel Mount Kit |
