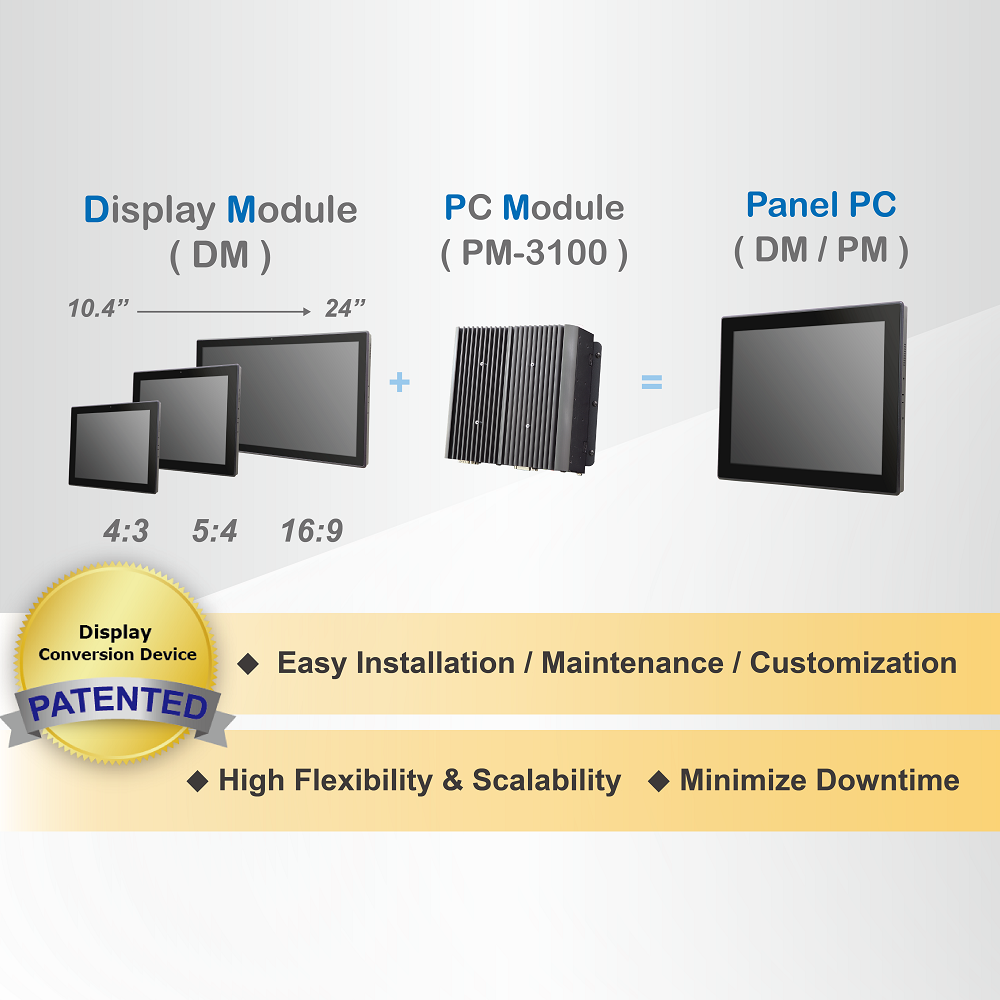

9th / 8th Gen Intel® Core™-i LGA 1151 ProcessorsPatented Display Conversion Device (DCD) TechnologyIP65 True Flat Front PanelAluminum Die-casting Ultra-thin BezelBuilt-in Power Protection (OVP / OCP / RVP)9~48V DC Input with Power Ignition FunctionFactory AutomationMotion ControlMachine VisionProduction Line AutomationDigital Surveillance Display Modules
| Model | DM-115P | DM-117P | DM-119P | DM-121PW | DM-124PW | |
| Panel | Panel Size | 15” | 17" | 19" | 21.5" | 24" |
| Panel Type | LCD Panel | |||||
| Aspect Ratio | 4:3 | 5:4 | 5:4 | 16:9 | 16:9 | |
| Resolution | XGA, 1024 x 768 | SXGA, 1280 x 1024 | SXGA, 1280 x 1024 | FHD, 1920 x 1080 | FHD, 1920 x 1080 | |
| Viewing Angle | 176 (H) x 176 (V) | 170 (H) x 170 (V) | 170 (H) x 160 (V) | 178 (H) x 178 (V) | 178 (H) x 178 (V) | |
| Brightness | 350 cd/m2 | 350 cd/m2 | 350 cd/m2 | 300 cd/m2 | 300 cd/m2 | |
| Contrast Ratio | 2500 : 1 | 800 : 1 | 1000 : 1 | 5000 : 1 | 5000 : 1 | |
| Color Support | 16.2 M | 16.7 M | 16.7 M | 16.7 M | 16.7 M | |
| Touchscreen | Touchscreen Type | Projected Capacitive | ||||
| Surface Hardness | 7 Mohs | |||||
| Durability | N/A | |||||
| Transparency | 90% (±3%) | |||||
| Remote |
1x Remote Power On/Off Connector, 2-pin Terminal Block 3.5mm 1x Remote OSD Connector |
|||||
| Speaker | 2x 2W Internal Speakers | |||||
| OSD Control | Function Keys | Touch Monitor On/Off , Auto, Menu, Up and Down, Multi-language OSD | ||||
| Mounting | Type | Panel Mount / VESA Mount (100 x 100 mm) / Wall Mount (Optional) | ||||
| Environment | Operating Temperature | -20°C to 70°C (-4~158° F) | -20°C to 70°C (-4~158° F) | -10°C~50°C (14~122° F) | -10°C~60°C (14~140° F) | -20°C to 70°C (-4~158° F) |
| Storage Temperature | -30°C to 80°C (-22~176° F) | -30°C to 80°C (-22~176° F) | -20°C~60°C (-4~140° F) | -20°C~70°C (-4~158° F) | -30°C to 80°C (-22~176° F) | |
| Humidity | 10 ~ 80% (Non-condensing) | |||||
| Vibration | 1.5 Grms, 5-500 Hz, 3 Axis | |||||
| Shock | 20 Grms, Half-sine 11 ms | |||||
| General | Certi cation | CE / FCC | ||||
| Ingress Protection | IP65 Compliant Front Panel | |||||
| Material | Front Panel Construction: Die-casting Flat Surface | |||||
| Dimensions (W x H x D) |
280.6 x 227.9 x 74.5mm (11.05” x 8.97” x 2.93” ) |
407.3 x 338.7 x 77mm (16.04” x 13.33” x 3.03”) |
449.7 x 374.4 x 77 mm (17.7” x 14.74” x 3.03”) |
527 x 323 x 77 mm (20.75” x 12.72” x 3.03”) |
584 x 353 x 82 mm (22.99” x 13.9”x 3.23”) |
|
| Net Weight | 2.45 kg (5.40 Ib) | 4.85 kg (10.69 Ib) | 5.85 kg (12.89 Ib) | 6.05 kg (13.33 Ib) | 8.1 kg (17.85 Ib) | |
PC Module

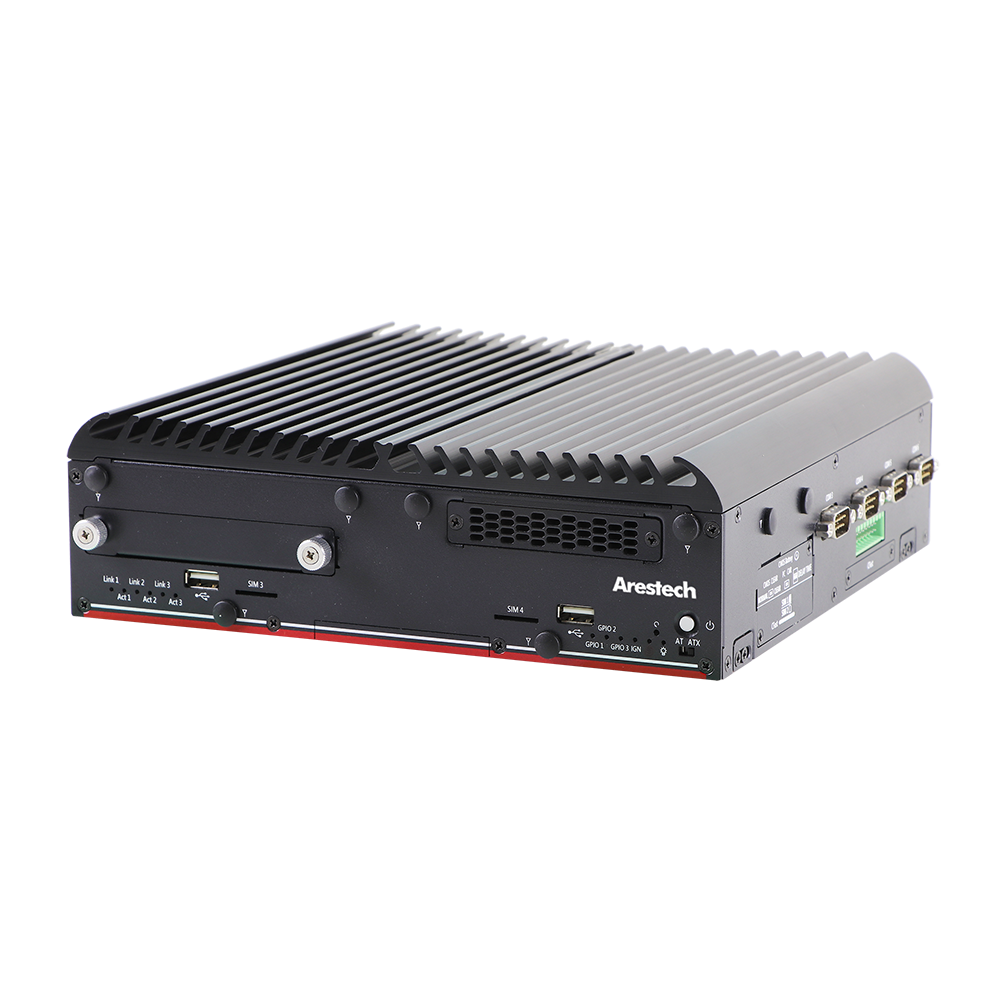

| Model | PM-3100 | ||
| Processor System | CPU | Supports 9th/ 8th Intel® Core™ i3 / i5 / i7 Desktop 35W LGA 1151 Processors | |
| System Chipset | Intel® Q370 | ||
| BIOS | AMI BIOS, 64Mbit SPI Flash ROM Built on Board | ||
| Memory | Technology | 2x DDR4-2400/2666MHz 260-Pin SO-DIMM Socket | |
| Max. Capacity | Supports up to 64GB (Un-bu ered and Non-ECC) | ||
| Type | Socket | ||
| Display | HDMI | N/A | |
| DP | 1x DP (4096 x 2160 | ||
| VGA | 1x VGA (1920 x 1200) | ||
| DVI | 1x DVI-D (1920 x 1200) | ||
| I/O Interface | USB | 6x USB3.1 and 2x USB2.0 | |
| Serial Port | 6x RS232/422/485 with Auto Flow Control, DB9 | ||
| Ethernet | 3x GbE (1x Intel® i219-LM, 2x Intel® i210-AT GbE, Supporting Wake-on-LAN and PXE) | ||
| Audio | Line Out, Mic In (Phone Jack 3.5mm) | ||
| GPIO / DIO | 8x Isolated DI and 8x Isolated DO Ports, 2x9-pin Terminal Block | ||
| Antenna Hole | 10 | ||
| Others | External Switch | 1x Power On/Off Button and 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| 1x AT/ATX Mode Switch | |||
| 1x PC/Car Mode Switch | |||
| 1x Clear CMOS Switch and 1x Removable CMOS Battery | |||
| Flexible I/O Window Slot | 1 | ||
| Storage | 2.5" HDD / SSD | 1x Removable 2.5" SATA HDD Bay and 1x Internal 2.5" SATA HDD Bay | |
| M.2 | N/A | ||
| mSATA | 2x mSATA Sockets (Mux with 2x Mini-PCIe and 2x CFast) | ||
| CFast | 2x CFast Sockets (Mux with 2x mSATA) | ||
| Expansion | Mini PCIe | 2x Full-size Mini-PCIe Sockets (Mux with mSATA) and 2x Full-size Mini-PCIe Sockets | |
| M.2 | N/A | ||
| PCI / PCIe | N/A | ||
| SIM Holder | 4 x SIM Sockets | ||
| Power | Power Mode | Supports Hardware AT, ATX Power Mode | |
| Power Supply Voltage | 9~48V DC Input | ||
| Power Connector Type | 1x 3-pin Terminal Block Connector | ||
| Power Ignition | Power Ignition Sensing | ||
| Power Adapter | 1x Optional AC/DC 24V/5A, 120W Power Adapter or 1x Optional AC/DC 24V 9.25A, 220W Power Adapter | ||
| Protection |
Over Voltage Protection (OVP) up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A |
||
| Mounting | Type | VESA Mount (100mm x 100mm) / Wall Mount | |
| Environment | Operating Temperature |
35W CPU: -40°C to 70°C (-40~158° F) 65W CPU: -40°C to 60°C (-40~140° F) (Optional external fan kit is required |
|
| Storage Temperature | -40~80 (-40~176° F) | ||
| Humidity | 10%~95% (Non-condensing) | ||
| Vibration | 5 Grms, 5-500 Hz, 3 Axis | ||
| Shock | 50 Grms, Half-sine 11 ms | ||
| General | Certi cation | CE/FCC | |
| Thermal Dissipation | 35W CPU Fanless System, 65W CPU Fan-based System | ||
| Ingress Protection | N/A | ||
| Material | Extruded Aluminum with Heavy Duty Metal | ||
| Dimensions (W x H x D) | 241.5 x 73x 230 mm (9.51” x 2.87” x 9.06” | ||
| Net Weight | 3.3 kg (7.27 Ib) | ||
| Operating System | Windows 10 (IoT/Professional), Linux | ||
Ordering Information
| Part No. | Description |
| DM-115P/PM-3100 | 15" 4:3 (1024 x 768), 350 nits, Fanless Panel PC with Intel® 9th/8th Gen. Core™ i LGA1151 Processor, Projected Capacitive Touch, 6x USB3.2 Gen 2×2, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, Line Out, Mic In, DC 9~48V, Phoenix Connector |

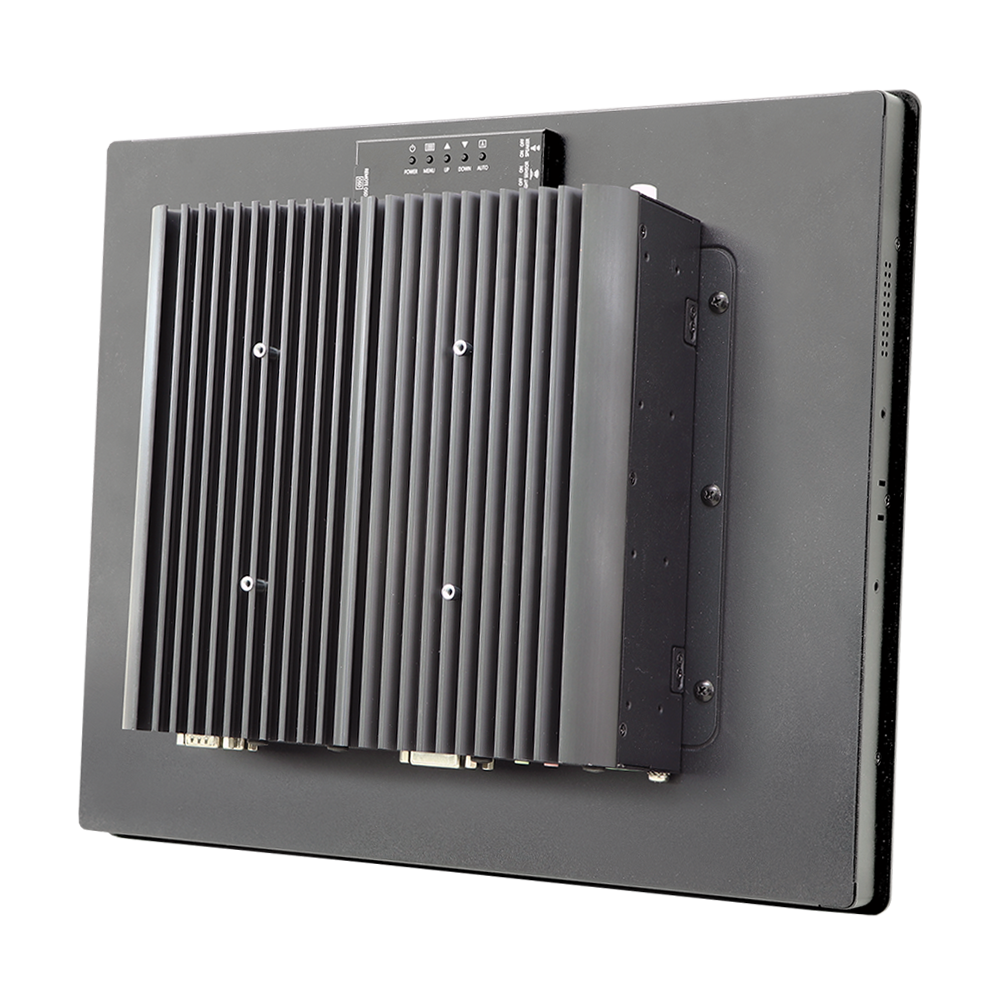

| DM-117P/PM-3100 | 17" 5:4 (1280 x 1024), 350 nits, Fanless Panel PC with Intel® 9th/8th Gen. Core™ i LGA1151 Processor, Projected Capacitive Touch, 6x USB3.2 Gen 2×2, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, Line Out, Mic In, DC 9~48V, Phoenix Connector |
| DM-119P/PM-3100 | 19" 5:4 (1280 x 1024), 350 nits, Fanless Panel PC with Intel® 9th/8th Gen. Core™ i LGA1151 Processor, Projected Capacitive Touch, 6x USB3.2 Gen 2×2, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, Line Out, Mic In, DC 9~48V, Phoenix Connector |
| DM-121PW/PM-3100 | 21.5" 16:9 (1920 x 1080 ), 300 nits, Fanless Panel PC with Intel® 9th/8th Gen. Core™ i LGA1151 Processor, Projected Capacitive Touch, 6x USB3.2 Gen 2×2, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, Line Out, Mic In, DC 9~48V, Phoenix Connector |

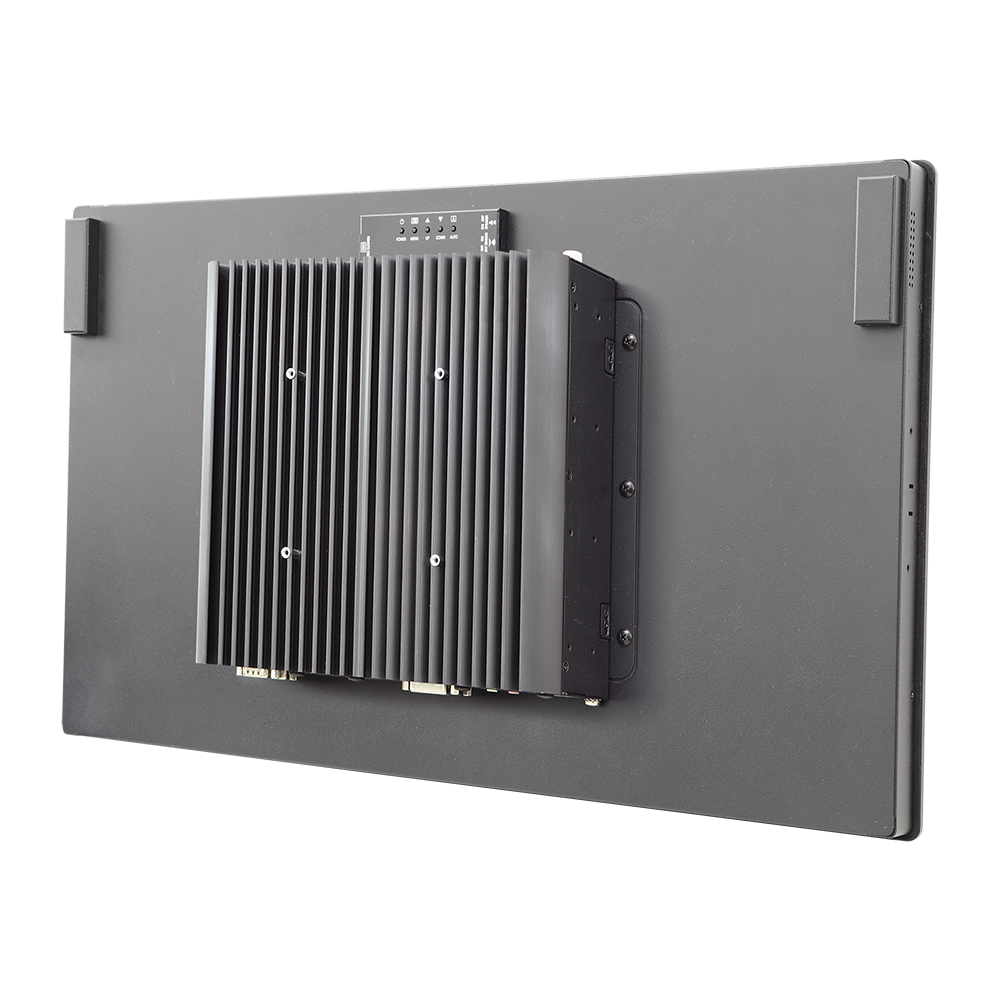

| DM-124PW/PM-3100 | 24" 16:9 (1920 x 1080), 300 nits, Fanless Panel PC with Intel® 9th/8th Gen. Core™ i LGA1151 Processor, Projected Capacitive Touch, 6x USB3.2 Gen 2×2, 2x USB2.0, 6x RS232/422/485, 3x GbE, 1x DP, 1x VGA, 1x DVI-D, Line Out, Mic In, DC 9~48V, Phoenix Connecto |
Packing List
| Description | |
| 1x DM-1XXP(W)/PM-3100 | |
| Panel Mount Kits | |
| Screw Pack |
Optional Items
| Part No. | Description |
| AWD-4G003 | 4G(LTE) EG25-G + 2 Antennas, Full Size (For Global) |
| AWD-WF001 | Wi-Fi 802.11 bgn (1T1R) + 1 Antenna (Single Band), Half-size miniPCIe |
| AWD-WF003 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half-size mini PCIe |
| i7-9700TE | Intel® Core™ i7-9700TE (8-core, up to 3.8 GHz, 35W TDP) |
| i5-9500TE | Intel® Core™ i5-9500TE (6-core, up to 3.6 GHz, 35W TDP) |
| i7-8700T | Intel® Core™ i7-8700T (6-core ,up to 4.0 GHz, 35W TDP) |
| i5-8500T | Intel® Core™ i5-8500T (6-core, up to 3.5 GHz, 35W TDP) |
| i3-8100T | Intel® Core™ i3-8100T (4-core, up to 3.1 GHz, 35W TDP) |
| External Fan | External Fan Module Kit (92 x 92 x 25 mm) (for 65W CPU Option) |
| 55000-0023-M5 | Adapter AC/DC 24V 5A 120W, 3-pin Terminal Block Plug 5.0mm Pitch |
| 55000-0024-M5 | Adapter AC/DC 24V 9.2A 220W, 3-pin Terminal Block Plug 5.0mm Pitch |
| 30100-0003-CA | Power Cord, 3-pin US Type, 180cm |
| 30101-0005-CA | Power Cord, 3-pin EU Type, 180 cm |
