PPC-N193
19” Fanless Aluminum IP66 Protection Touch Panel PC with Intel ® Pentium®N4200/ Celeron® N3350 Processor
Automation Panel PC

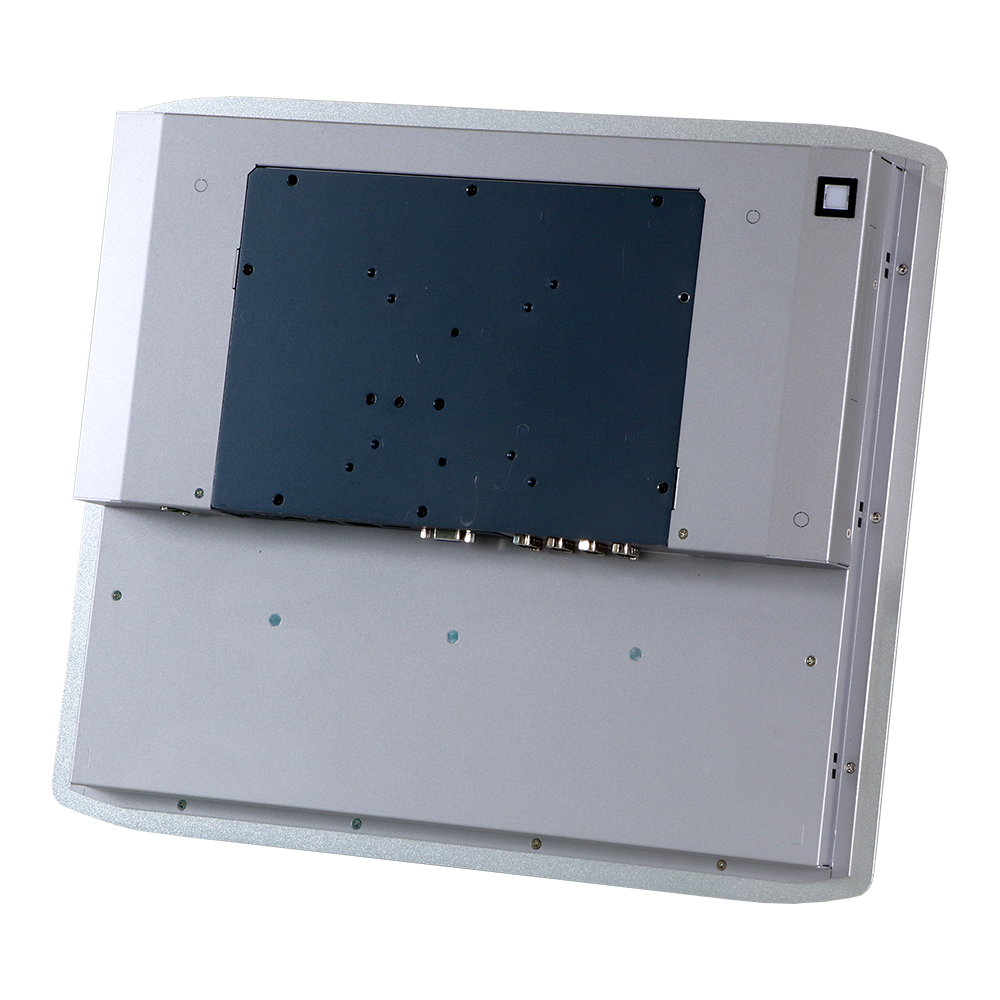

PPC-N193
Features
19” TFT SXGA LED Panel with Projected Capacitive/ Resistive Touch DisplayEmbedded Intel® Pentium® N4200/ Celeron® N3350System Memory up to 8 GB DDR3L 1866 SDRAMSupports Aluminum Front Cover IP66 ProtectionInternal SATA 2.5” HDD and M.2 SocketPanel and VESA Mounting Applications
Human Machine Interface (HMI)Factory / Manufacturing AutomationATM / Self-service / Kiosk ApplicationsVending Machine / Ticketing Machine | Model |
PPC-N193P-1A1 |
PPC-N193P-2A1 |
PPC-N193R-1A1 | PPC-N193R-2A1 | |
| Processor System | CPU | Intel® Pentium® N4200 |
Intel® Celeron® N3350 |
Intel® Pentium® N4200 | Intel® Celeron® N3350 |
| Frequency | Quad-Core up to 2.5GHz |
Dual-Core up to 2.4GHz |

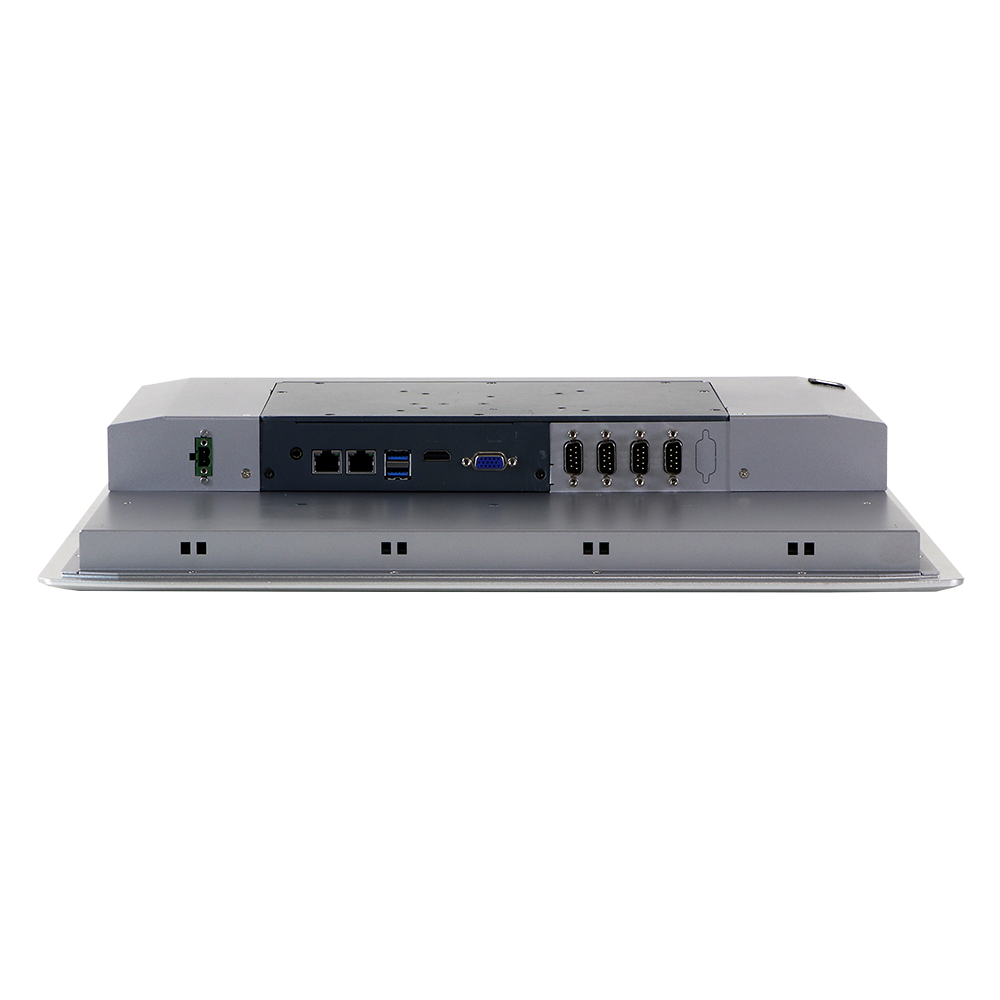

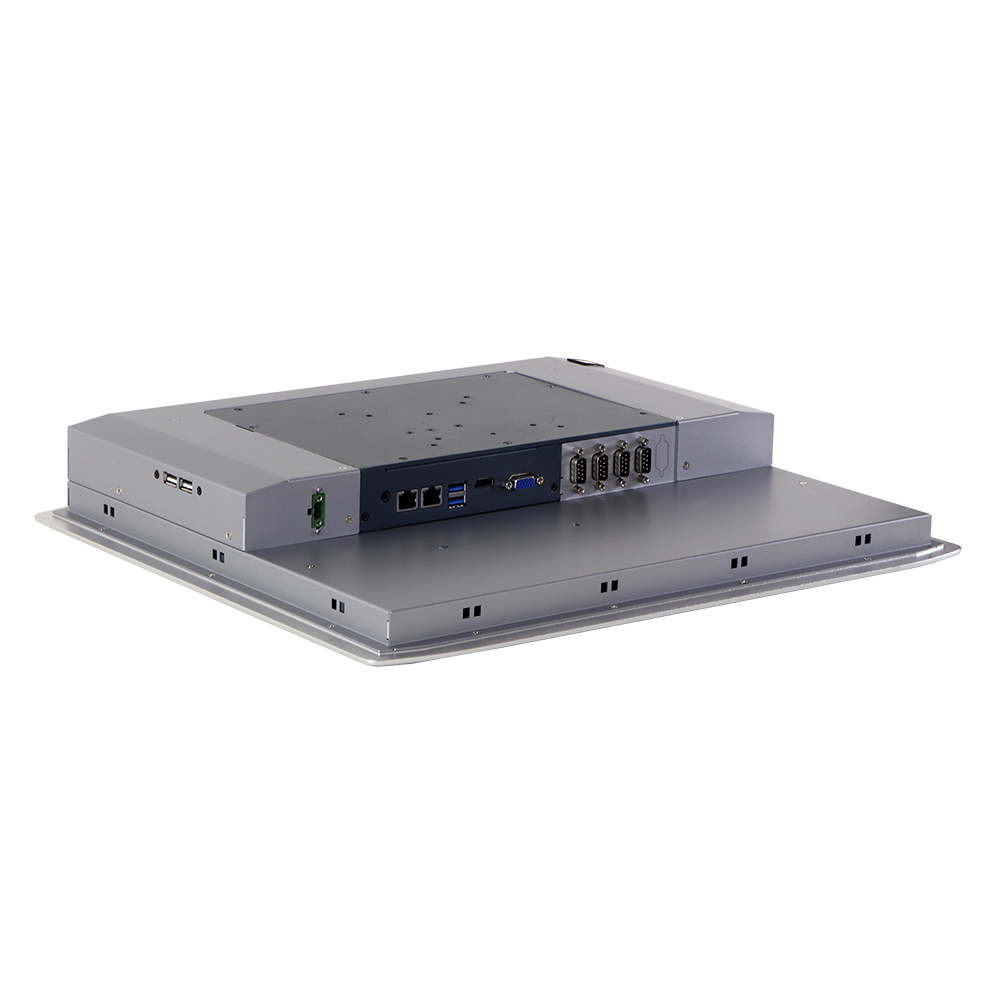

Quad-Core up to 2.5GHz | Dual-Core up to 2.4GHz | |
| L2 Cache | 2 MB | ||||
| System Chipset | N/A | ||||
| BIOS | UEFI | ||||
| Memory | Technology | DDR3L 1866 MHz SDRAM | |||
| Max. Capacity | 8 GB | ||||
| Socket | 2 (204-pin SO-DIMM) | ||||
| Display | Panel Size | 19” LED Panel | |||
| Resolution | 1280 x 1024 (SXGA) | ||||
| Viewing Angle | 85 x 85 (H) x 80 x 80 (V) | ||||
| Brightness | 350 (cd/m2) | ||||
| Color Support | 16.7M | ||||
| Contrast Ratio | 1000:1 | ||||
| Response Time | 5 (msec) | ||||
| VGA | VGA, 1920 x 1200 @ 60Hz | ||||
| HDMI | HDMI 1.4b, 1920 x 1200 @ 60Hz | ||||
| Dual Display | LCD + VGA or LCD + HDMI | ||||
| Touchscreen | Type | Projected Capacitive | 5-Wire Resistive | ||
| Surface Hardness | 7 Mohs | 3 Mohs | |||
| Durability | - | 36 millions times | |||
| Transparency | 90% (±3%) | 80% (±3%) | |||
| I/O Interface | USB | 2 USB 3.0, 2 USB 2.0 | |||
| Serial Port | 4 COM (3 RS-232, 1 RS-232/422/485) | ||||
| Digital I/O | 8-pin Digital I/O (DB-15 connector) | ||||
| Expansion |
1 miniPCIe full Size with SIM |
||||
| Ethernet | Controller | Dual GbE, 10/100/1000 Mbps (Intel i211AT) | |||
| Audio | Chipset | Realtek High Definition Audio (HD) | |||
| Connector | Line out | ||||
| Storage | M.2 | Supports 1 M.2 B/M Key 2242 | |||
| SATA III | Internal 2.5” HDD/SSD, Swappable HDD Box (Option) | ||||
| Power | Power Adaptor | Supports 9-36 V DC input | |||
| Connetor Type | 2-pin Terminal Block | ||||
| Power Consumption (Typical) | 1.31A @ 12V (15.8 W) | ||||
| Power Consumption (Max) | 3.95 @ 12V (47.3 W) | ||||
| Battery | Lithium 3 V / 210 mAH | ||||
| Environment | Operating Temperature |
-20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & 2.5” SSD |
|||
| Storage Temperature | -40~85° C (-40~185° F) | ||||
| Humidity | 5~95% @ 40° C, non-condensing | ||||
| Vibration | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||||
| Certification | CE,FCC Class A | ||||
| General | Ingress Protection | Aluminum Front Cover IP66 Protection | |||
| Dimensions (L x W x H) |
456 x 393 x 69mm (17.95"x15.47"x2.72") |
||||
| Weight | 5.73kg (11.685b) | ||||
| Operating System | Windows 10 IoT 64Bit, Linux kernal 4.0.x or above | ||||
Packing List
|
Description |
|
1 x PPC-N193 |
| 1 x Power Adapter & Power Cord |
| 16 x Panel Mounting Screws |
Ordering Information
|
Part No. |
Description |
|
PPC-N193P-1A1 |
19” Fanless P-Cap Touch Panel PC with Intel® Pentium® N4200, 2 DDR3L, 2 GbE, 2 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 VGA,1 HDMI, DC 9~36V, Phoenix Connector |
|
PPC-N193P-2A1 |
19” Fanless P-Cap Touch Panel PC with Intel® Celeron® N3350, 2 DDR3L, 2 GbE, 2 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 VGA, 1 HDMI, DC 9~36V, Phoenix Connector |
|
PPC-N193R-1A1 |
19” Fanless 5-wire Resistive Touch Panel PC with Intel® Pentium® N4200, 2 DDR3L, 2 GbE, 2 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 VGA, 1 HDMI, DC 9~36V, Phoenix Connector |
|
PPC-N193R-2A1 |
19” Fanless 5-wire Resistive Touch Panel PC with Intel® Celeron® N3350, 2 DDR3L, 2 GbE, 2 USB 3.0, 2 USB 2.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 VGA, 1 HDMI, DC 9~36V, Phoenix Connector |
Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna, Half-size
AWD-WF002
Wi-Fi 802.11 bgn/BT4.0 (1T1R) Module + 1 Antenna (Dual band), Half-size
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
