BPC-3030

BPC-3030

Fanless Embedded Box PC with Intel® Celeron® Processor J1900 and 8 COM Ports

Home » Products » Embedded Box PC » BPC-3030
  • Quote

  • Datasheet

Features

list_dot_01.pngIntel® Celeron® Processor J1900 (2.0 GHz)
list_dot_01.png8 COM Ports (up to 5 RS-232/422/485)
list_dot_01.png1 Internal USB for Software Encryption Dongle
list_dot_01.png1 SATA HDD/SSD (2.5”) 1 mSATA
list_dot_01.png1 Half-size Mini PCIe (for WLAN Module)

Applications

list_dot_01.pngEmbedded Control Systems
list_dot_01.pngATM / Self-service / Kiosk Applications
list_dot_01.pngIntelligent Transportation Systems
list_dot_01.pngMachine Automation

list_dot_01.pngVideo Capture/ Image Process


Model BPC-3030-3A2 BPC-3030-4A1 BPC-3030-2A2
Processor System CPU Intel ® Celeron ® Processor J1900
Frequency 2.0 GHz / 2.42 GHz (Boost), 4 Cores / 4 Threads
L2 Cache 2 MB
System Chipset N/A
BIOS UEFI
Memory Technology Single channel DDR3L 1333 MHz SDRAM
Max. Capacity 8 GB
Socket 204-pin SO-DIMM
Display Graphics Engine Intel® Gen7 Graphics DX11*, OGL3.2
VGA Up to 1920 x 1200
HDMI HDMI 1.4a, 1920 x 1200 max. resolution
Dual Display VGA + HDMI

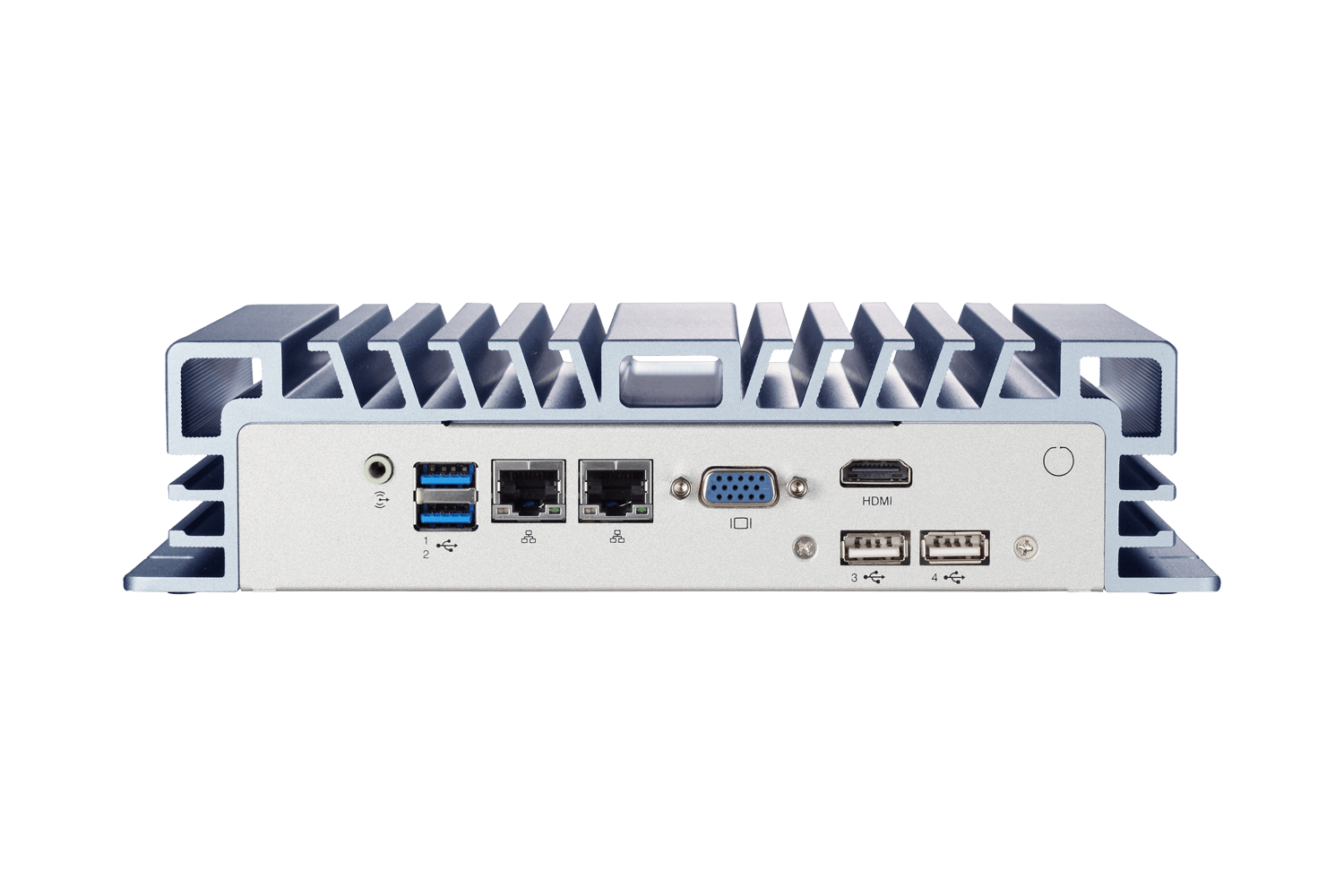

I/O Interface USB 2 USB 3.0, 2 USB 2.0
Internal USB (Optional) 1 Internal USB for Keypro

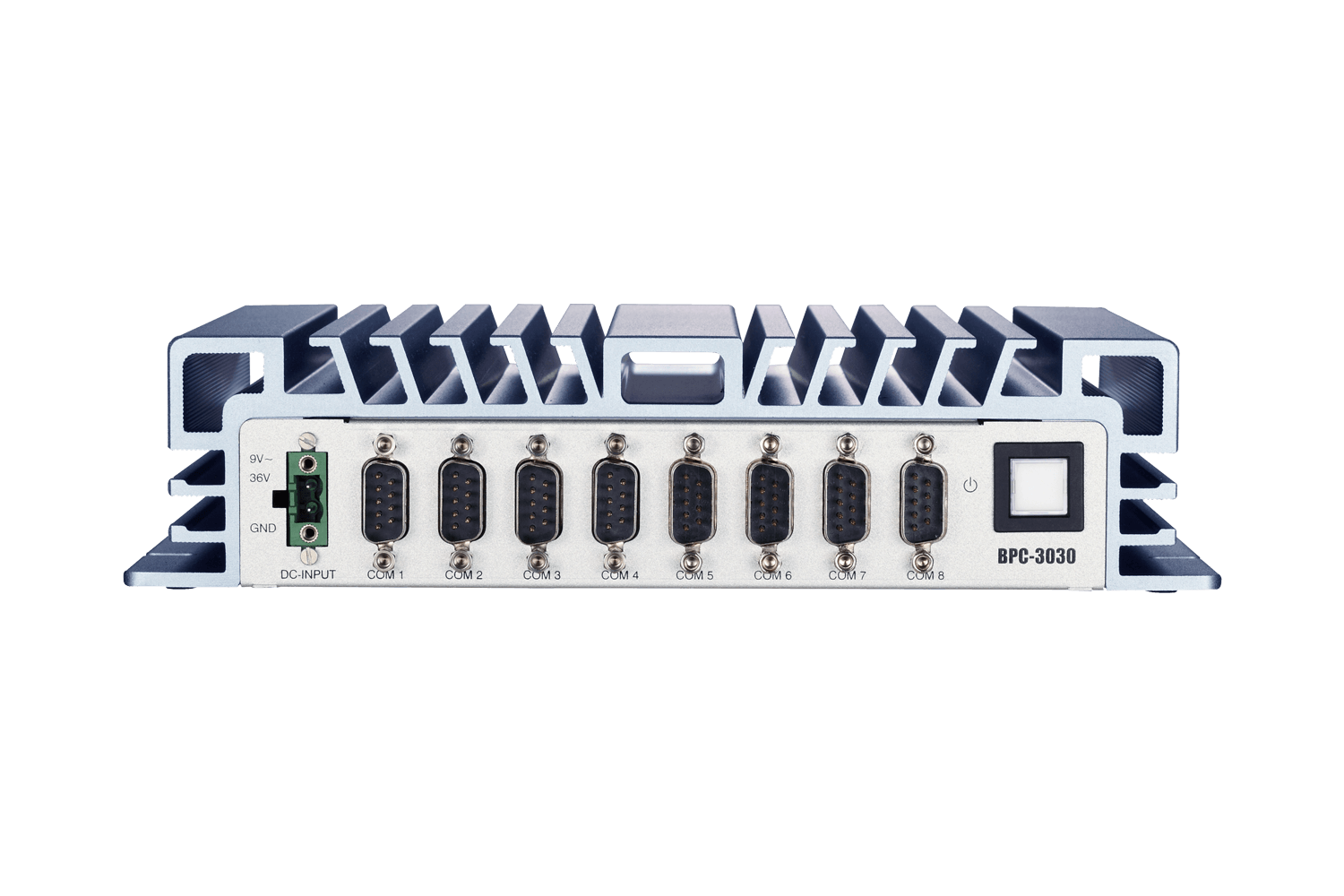

Serial Port 7 RS-232 1 RS-232/422/485 3 RS-232 1 RS-232/422/485 3 RS-232, 5 RS-232/422/485
(Set by jumper)
Capture Card N/A                                       Software Compress, 4 Channel D1                               N/A
Ethernet Controller Dual GbE, Realtek RTL8111G-CG, 10/100/1000 Mbps
Audio Chipset Realtek ALC662 High Definition Audio (HD)
Connectors Line out
Expansion Mini PCIe 1, half-size1 1 half-size, 1 full-size 1, half-size
Storage SATAII 1 (2.5” HDD/SSD)
mSATA N/A 1mSATA share with miniPCIe N/A
Power Power Type AT / ATX
Power Supply Voltage 9-36 V DC input (Phoenix Connector), 6.7-1.7 A
Power Consumption (Typical) 0.783 A @ 12 V (9.4 W) 0.77 A @ 12 V (9.2 W) 0.783 A @ 12 V
(9.4 W)
Power Consumption (Max) 1.25 A @ 12 V (15 W) 1.67 A @ 12 V (14 W) 1.25 A @ 12 V
(15 W)
Environment Operational -20~60° C (-4~140° F) w/ 2.5” SSD (Humidity: 60° C @ 80% RH Non-condensing)
Non-Operational -40~85° C (-40~185° F) (Humidity: 60° C @ 95% RH Non-condensing)
Vibration 5 Grms, IEC 60068-2-64, random, 5~500 Hz,
1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD only)
1 Grms, IEC 60068-2-64, random, 5~500 Hz,
1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock 50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only)
20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Certificate EMC CE, FCC Class A
General Dimensions
(W x H x D)
238 x 55 x 165 mm (9.37” x 2.16” x 6.5”)
Weight 1.8 kg (3.96 lb) 1.78 kg (3.92 lb) 1.8 kg (3.96 lb)
Operating System Windows 7/8/10, WS7E/P, WES8

Packing List
Description
1 x BPC-3030
1 x Driver CD
1 x Power Adaptor (AC-to-DC, 12 V @ 5 A, 60 W)


Ordering Information
Part No.
Description
BPC-3030-1A1
Intel® Celeron® J1900 2.0 GHz w/ 3 RS-232, 1 RS-232/422/485, 4 USB, 2 GbE, line out, 1 VGA, 1 HDMI
BPC-3030-2A2
Intel® Celeron® J1900 2.0 GHz w/ 3 RS-232 5 RS-232/422/485, 4 USB, 2 GbE, line out, 1 VGA, 1 HDMI
BPC-3030-3A2
Intel® Celeron® J1900 2.0 GHz w/ 7 RS-232, 1 RS-232/422/485, 4 USB, 2 GbE, line out, 1 VGA, 1 HDMI


Optional Items
Part No.
Description
ACS-PS-US
Power Cable 3-pin, 180 cm, USA Type
ACS-PS-EU
Power Cable 3-pin, 180 cm, Euro Type
ACS-PS-CN
Power Cable 3-pin, 180 cm, China Type
