Full IP66/69K Protection (Z-series)

PPC-Z217RW

PPC-Z217RW

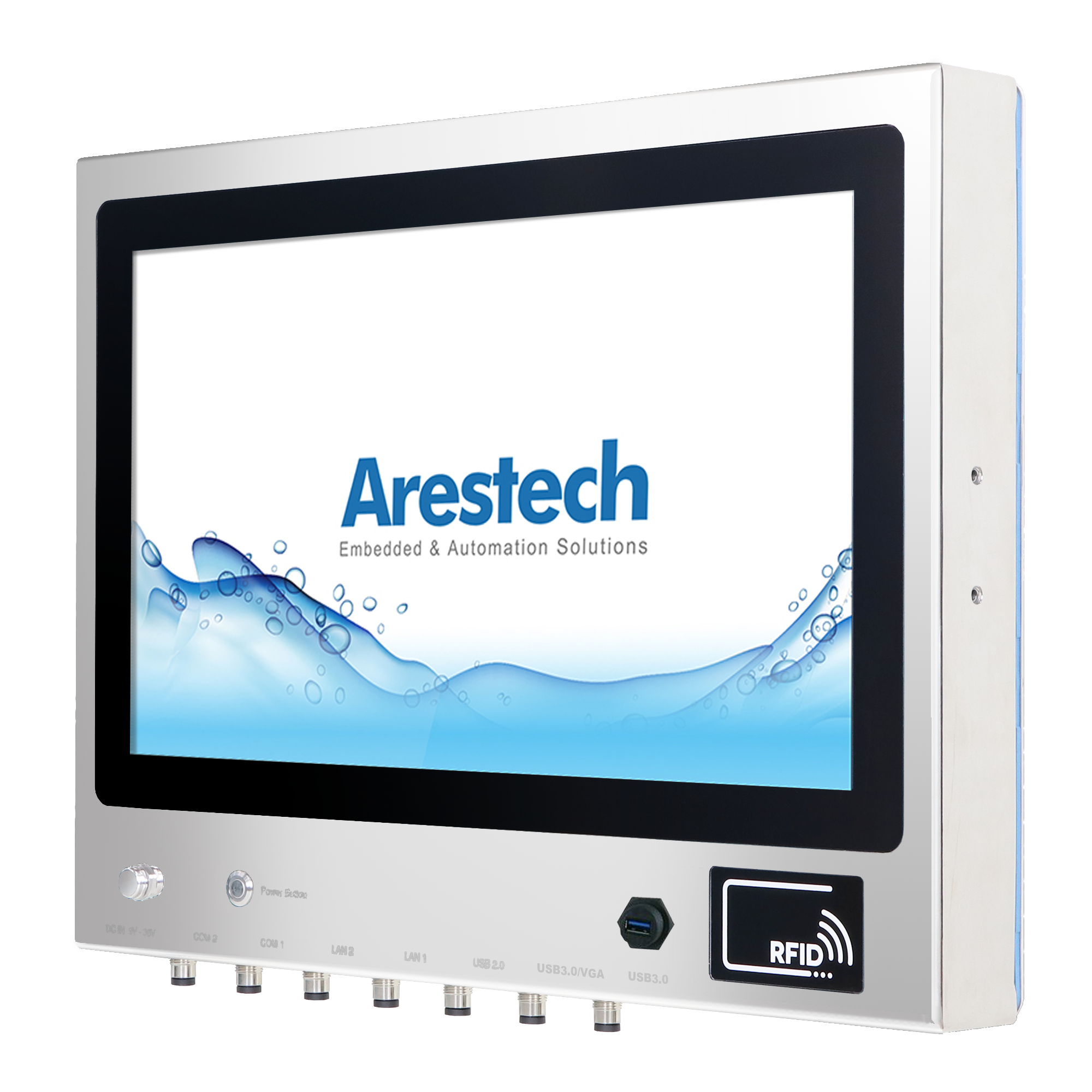

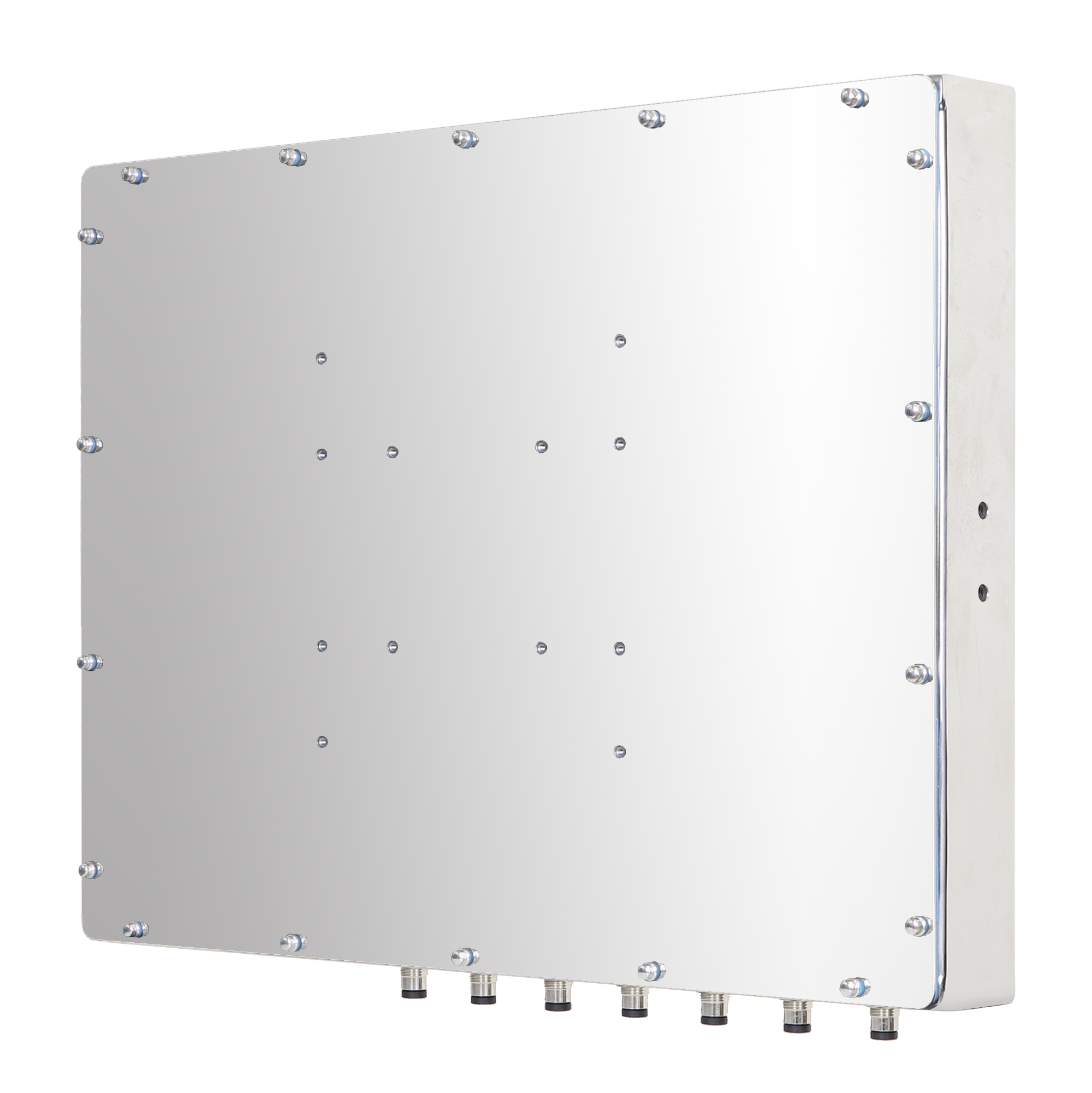

21.5" IP66/69K Waterproof Stainless Steel 316 5 Wire Resistive Touch Panel PC with kabylake-U Intel® Core™ i5-7200U Processor

  • Quote

  • Datasheet

Features

list_dot_01.png21.5”(1920 x1080) LCD Panel with 5 Wire Resistive Touch
list_dot_01.pngSupport Daul Ethernet, 1 USB 3.0, 2 USB 2.0 and 2 COM M12 Connector
list_dot_01.pngSupport Front IP67 USB3.0 and RFID Reader
list_dot_01.pngStainless Steel SUS316, Full IP66/69K Waterproof
list_dot_01.pngSupport VESA Mounting and Yoke Mounting

Applications

list_dot_01.pngFood & Beverage Processing Application
list_dot_01.pngHospitality and Catering Service
list_dot_01.pngPharmaceutical and Biopharmaceutical Equipment
list_dot_01.pngAnimal Feed Production Facility
list_dot_01.pngChemical, Gas & Oil Critical Environment
list_dot_01.pngMedical Application


Model PPC-Z217RW-B61A1 PPC-Z217RW-B62A1
Processor System CPU Intel® Core® i5-7200U Intel® Core® i3-7100U
Frequency Duad-Core up to 3.1 GHz Duad-Core up to 2.4 GHz
L2 Cache Intel® Smart Cache 3 MB
System Chipset N/A
BIOS UEFI
Memory Technology DDR4 2133 MHz SDRAM
Max. Capacity 32 GB
SocketSocket/ (On Board) 2, (260-pin SO-DIMM)
Display Panel Size 21.5” LCD Panel
Aspect Ratio 16:9
Resolution 1920 x 1080 (Full HD)
Viewing Angle 85 x 85 (H) x 80 x 80 (V)
Brightness 250 (cd/m2)
Contrast Ratio 1000:1
VGA / HDMI / DP / DVI N/A
Multi Display LCD Panel
Touchscreen Touchscreen Type 5-wire Resistive Touch
Surface Hardness 3 Mohs
Durability
36 millions times
Transparency 80% (±3%)
I/O Interface USB 4, 1 USB 3.0 , 2 USB 2.0 (M12 Connector); 1 USB3.0 (IP67 Connnector)
Serial Port 2, COM (1 RS-232, 1 RS-232/422/485), M12 Connector
Digital I/O
N/A
Ethernet
2, GbE LAN ports (Intel® i219V and Intel® i211AT)
Others RFID Reader (UID Reader only, CARD TYPE:ISO 18092 Felica, ISO 14443A Mifare® Class, Ultralight ), Ferquency:
13.56MHz
* Also can option 125 kHz card types supported proximity cards: Cotag, Deister, GProx-II ID, ID Teck Alternate (128
bits), Isonas, NEDAP, and Postech. 13.56 MHz card types supported contactless cards: NFC 1 (Topaz), iCLASS Seos,
ISO 14443B, FeliCa (NFC 3), CEPAS, Oyster, Ferquency:125 kHz and 13.56 MHz (This RFID by option)

Expansion miniPCIe/ M.2 Slot 1, Mini PCIe (Full-size); 1, M.2 E Key 2230 (USB/ PCIe x1)
PCI/ PCIe Slot
N/A
Audio
Connector N/A
Storage HDD/SSD
1, Internal 2.5” HDD/SSD
mSATA/ M.2 / eMMC 1, M.2 M Key 2280 (SATA III / PCIe x4)
Power Power On Model AT/ATX
Power Supply Voltage 9~36 V DC input
Connector Type
M12 Connector
Power Consumption(Typical/Max.)
Typical:3A @ 12V (36W), Max:3.58A @ 12V (43W)
Battery CR2032;3.3V
Mounting VESA Mount

200mm x 200mm; 100mm x 100mm

Panel Mount
N/A
Others
Yoke Mount
Environment
Operating Temperature
-20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & SSD
Storage Temperature
-40~85° C (-40~185° F)
Humidity
5~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
General
Certification
TBD
Thermal Dissipation
Fanless
Material, Surface Finish
Stainless steel 316, Brush polish

Ingress Protection

Full IP66/IP69K Protection

Dimensions (L x W x H)
570 x 430 x 66.9 mm (22.44” x 16.93” x 2.63”)
WeightNet Weight 12 kg (26.45 lb)
Operating System Windows 10 IoT 64Bit, Linux kernal 4.0.x or above

Packing List
Description
1 x PPC-Z217RW


Ordering Information
Part No.
Description
PPC-Z217RW-B61A1

21.5" 16:9 (1920 x 1080), 250nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Core i5-7200U CPU, 5 Wire Resistive Touch, 4G RAM, 128G SSD, 1 USB 3.0, 2 USB 2.0, 1 RS232, 1 RS-232/422/485, 2 GbE, DC 9-36 V (M12 Connector), 1 IP67 Front USB 3.0, RFID Reader

PPC-Z217RW-B62A1
21.5" 16:9 (1920 x 1080), 250nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Core i3-7100U CPU, 5 Wire Resistive Touch, 4G RAM, 128G SSD, 1 USB 3.0, 2 USB 2.0, 1 RS232, 1 RS-232/422/485, 2 GbE, DC 9-36 V (M12 Connector), 1 IP67 Front USB 3.0, RFID Reader


Optional Items
Part No.
Description
APW-60M12V-01
12V, 60W, 5A, 5-pin M12 Connector (US)
APW-60M12V-02
12V, 60W, 5A, 5-pin M12 Connector (EU)
AKT-USB2M12
M12 Connector to USB2.0 Cable, 2m
AKT-COM2M12
M12 Connector to DB9 Cable, 2m
AKT-LAN2M12
M12 Connector to LAN Cable, 2m
AKT-USB32M12
M12 Connector to USB3.0 Cable, 2m
AWD-WF006
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 IP66 antenna(dual band), miniPCIe Half size
AWD-WF007
wifi 802.11 b/g/n (1T1R) + 1 IP66 antenna(dual band), Half size miniPCIe, for PPC Z-series
