DM-1XXP/PM-2000

DM-1XXP/PM-2000
Modular Industrial Panel PC with Intel® Atom or Celeron® Processor
  • Quote

  • Datasheet

  • Driver

Features
list_dot_01.pngOnboard Intel® Celeron® Processor J1900

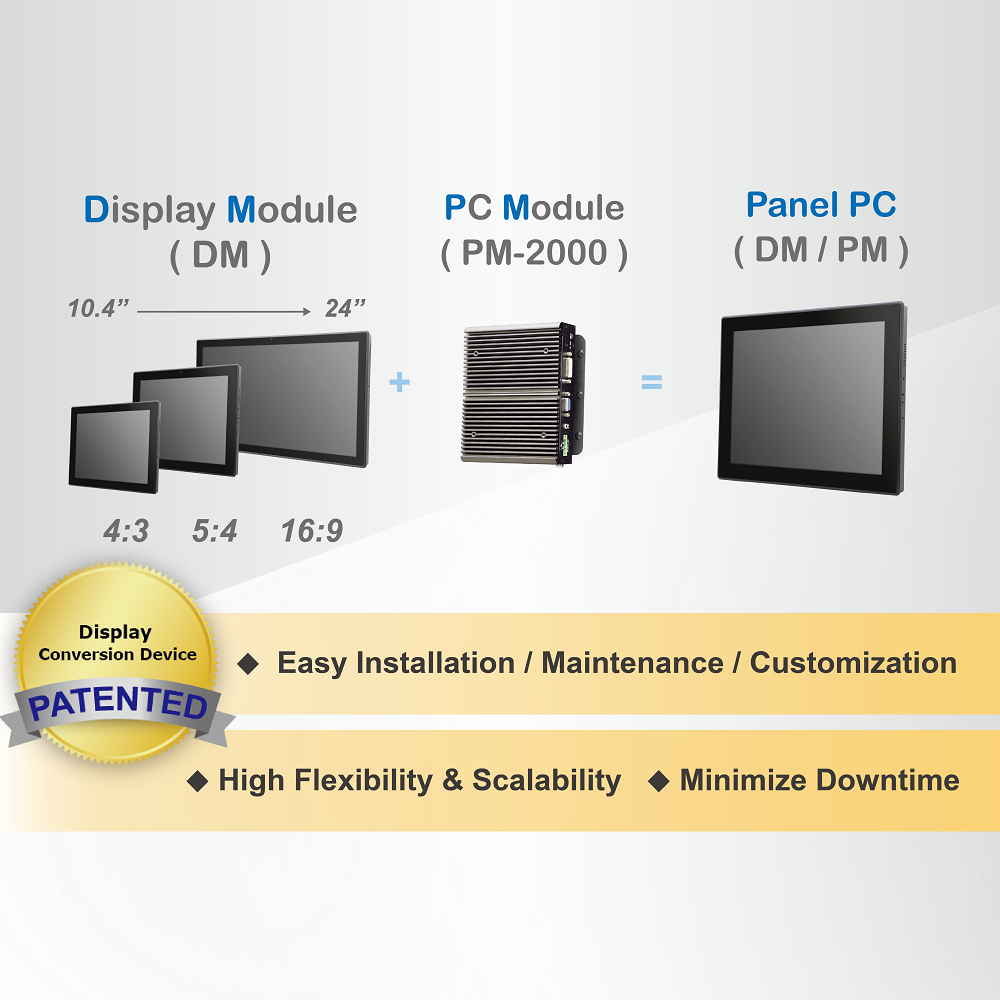

list_dot_01.pngPatented Display Conversion Device (DCD) Technology
list_dot_01.pngIP65 True Flat Front Panel
list_dot_01.pngAluminum Die-casting Ultra-thin Bezel
list_dot_01.pngBuilt-in Power Protection (OVP / OCP / RVP)
list_dot_01.png9~48V DC Input with Power Ignition Function
Applications
list_dot_01.pngFactory Automation
list_dot_01.pngVending / Ticketing Machines
list_dot_01.pngHuman Machine Interface (HMI)
list_dot_01.pngProduction Line Automation
list_dot_01.pngATM / Self-Service / Kiosk

Display Modules

Model DM-110P DM-112P DM-115P DM-115PW
Panel Panel Size 10.4” 12.1" 15" 15.6"
Panel Type LCD Panel
Aspect Ratio 4:3 4:3 4:3 16:9
Resolution XGA, 1024 x 768 XGA, 1024 x 768 XGA, 1024 x 768 FHD, 1920 x 1080
Viewing Angle 176 (H) x 176 (V) 178 (H) x 178 (V) 176 (H) x 176 (V) 170 (H) x 170 (V)
Brightness 500 cd/m2 600 cd/m2 350 cd/m2 450 cd/m2
Contrast Ratio 1000 : 1 1000 : 1 2500 : 1 800 : 1
Color Support 16.2 M
Touchscreen Touchscreen Type Projected Capacitive
Surface Hardness 7 Mohs
Durability N/A
Transparency 90% (±3%)
Remote 1x Remote Power On/Off Connector, 2-pin Terminal Block 3.5mm
1x Remote OSD Connector
Speaker 2x 2W Internal Speakers
OSD Control Function Keys Touch Monitor On/Off, Auto, Menu, Up and Down, Multi-language OSD
Mounting Type Panel Mount / VESA Mount (100 x 100 mm) / Wall Mount (Optional)
Environment Operating Temperature -20°C to 70°C (-4~158° F)
Storage Temperature -30°C to 80°C (-22~176° F)
Humidity 10 ~ 80% (Non-condensing)
Vibration 1.5 Grms, 5-500 Hz, 3 Axis
Shock 20 Grms, Half-sine 11 ms
General Certication CE / FCC
Ingress Protection IP65 Compliant Front Panel
Material Front Panel Construction: Die-casting Flat Surface
Dimensions (W x H x D) 280.6 x 227.9 x 74.5mm (11.05” x 8.97” x 2.93” ) 327.5 x 262x 75.5 mm (12.89” x 10.31” x 2.97”) 377 x 301 x 76 mm
(14.84”x 11.85” x 2.99”)
393 x 254 x 76.5 mm (15.47” x 10” x 3.01”)
Net Weight 2.45 kg (5.40 Ib) 2.85 kg (6.28 Ib) 4.05 kg (8.92 Ib) 3.85 kg (8.48 Ib)

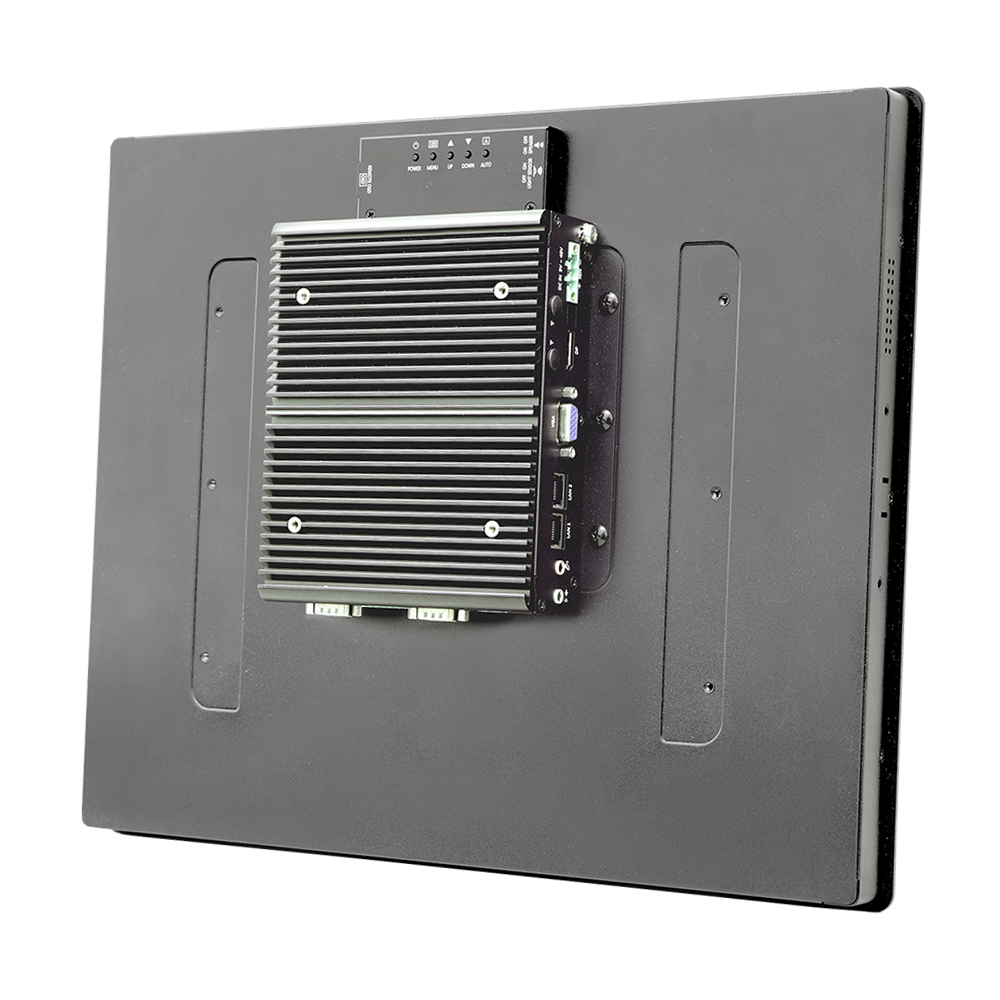

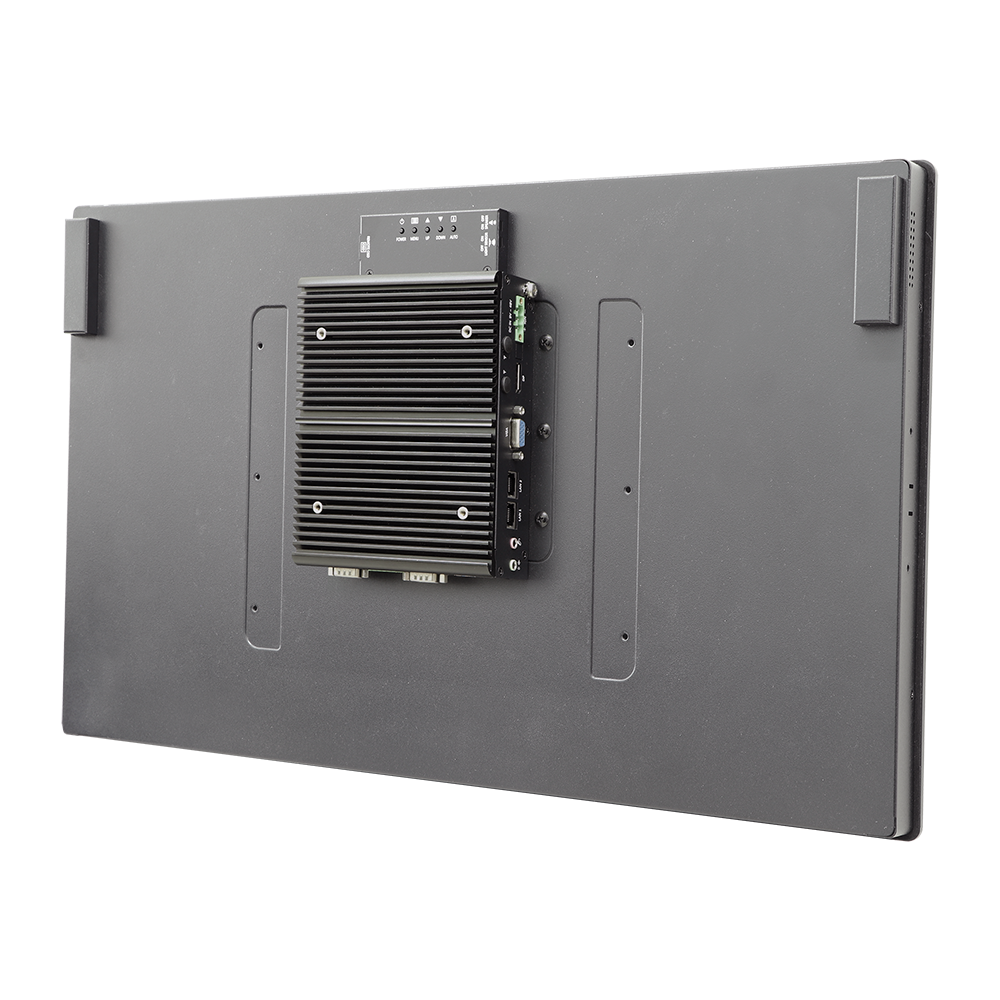

Model DM-117P DM-119P DM-121P DM-124PW
Panel Panel Size 17” 19" 21.5" 24"
Panel Type LCD Panel
Aspect Ratio 5:4 5:4 16:9 16:9
Resolution SXGA, 1280 x 1024 SXGA, 1280 x 1024 FHD, 1920 x 1080 FHD, 1920 x 1080
Viewing Angle 170 (H) x 170 (V) 170 (H) x 160 (V) 178 (H) x 178 (V) 178 (H) x 178 (V)
Brightness 350 cd/m2 350 cd/m2 300 cd/m2 300 cd/m2
Contrast Ratio 800 : 1 1000 : 1 5000 : 1 5000 : 1
Color Support 16.7 M
Touchscreen Touchscreen Type Projected Capacitive
Surface Hardness 7 Mohs
Durability N/A
Transparency 90% (±3%)
Remote 1x Remote Power On/Off Connector, 2-pin Terminal Block 3.5mm
1x Remote OSD Connector
Speaker 2x 2W Internal Speakers
OSD Control Function Keys Touch Monitor On/Off, Auto, Menu, Up and Down, Multi-language OSD
Mounting Type Panel Mount / VESA Mount (100 x 100 mm) / Wall Mount (Optional)
Environment Operating Temperature -20°C to 70°C (-4~158° F) -10~50 (14~122° F) -10~60 (14~140° F) -20°C to 70°C (-4~158° F)
Storage Temperature -30°C to 80°C (-22~176° F) -20~60 (-4~140° F) -20~70 (-4~158° F) -30°C to 80°C (-22~176° F)
Humidity 10 ~ 80% (Non-condensing)
Vibration 1.5 Grms, 5-500 Hz, 3 Axis
Shock 20 Grms, Half-sine 11 ms
General Certication CE / FCC
Ingress Protection IP65 Compliant Front Panel
Material Front Panel Construction: Die-casting Flat Surface
Dimensions (W x H x D) 407.3 x 338.7 x 77mm (16.04” x 13.33” x 3.03”) 449.7 x 374.4 x 77 mm (17.7” x 14.74” x 3.03”) 527 x 323 x 77 mm
(20.75” x 12.72” x 3.03”)
584 x 353 x 82 mm
(22.99” x 13.9”x 3.23”)
Net Weight 4.85 kg (10.69 Ib) 5.85 kg (12.89 Ib) 6.05 kg (13.33 Ib) 8.1 kg (17.85 Ib)

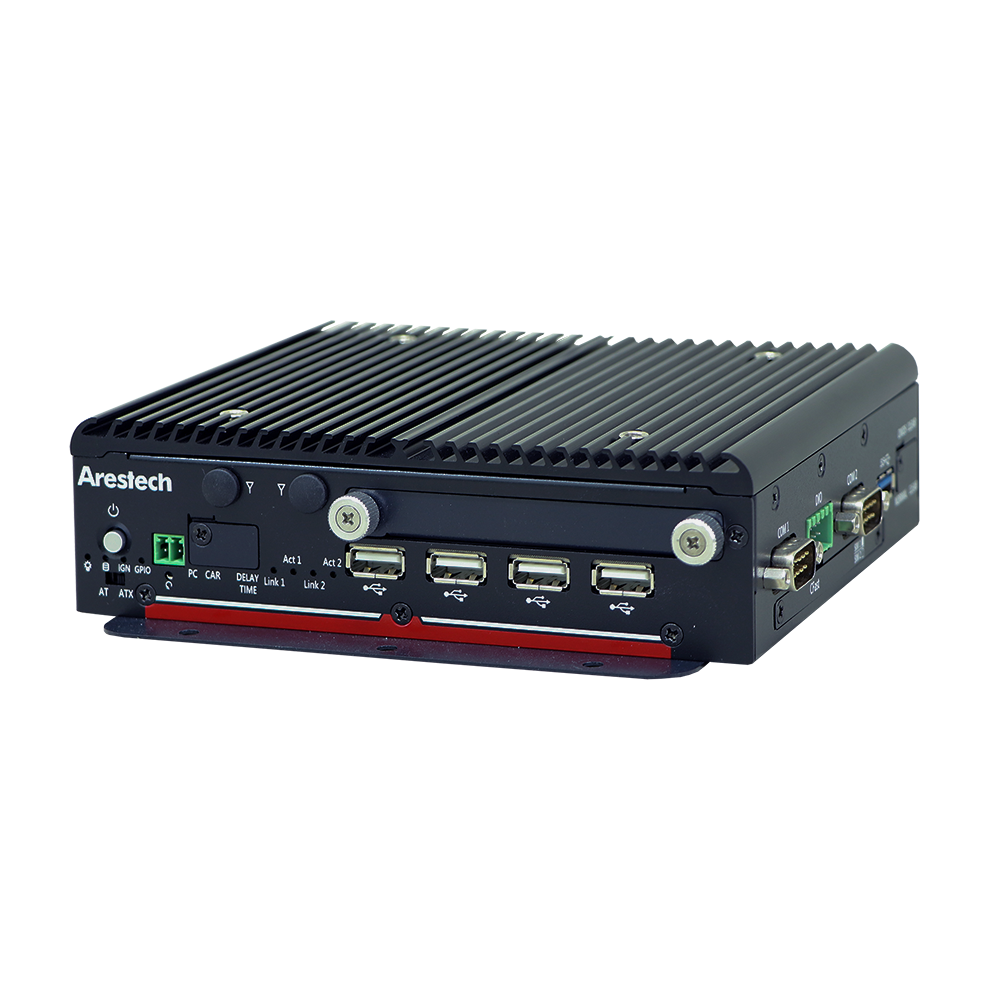

PC Module

Model PM-2000
Processor System CPU Intel® Celeron® J1900 Quad Core Processor
Frequency Up to 2.42 GHz
System Chipset N/A
Cache 2 MB
BIOS  AMI BIOS, 64Mbit SPI Flash ROM Built on Board
Memory Technology Single Channel DDR3L-1066/1333MHz 204-Pin SO-DIMM Socket
Max. Capacity Up to 8 GB (Un-buered and Non-ECC)
Type Socket
Display HDMI N/A
DP 1x DP (1920 x 1200)
VGA 1x VGA (2560 x 1600)
DVI N/A
I/O Interface USB 1x USB 3.2 Gen 2 and 4x USB 2.0
Serial Port 2x RS232/422/485 with Auto Flow Control, DB9
Ethernet 2 x GbE (2 x Intel® i210-AT GbE, Supporting Wake-on-LAN and PXE)
Audio Line Out , Mic In (Phone Jack 3.5mm)
GPIO / DIO 4x Isolated DI and 4x Isolated DO Ports, 10-pin Terminal Block
Antenna Hole 6
Others External Switch 1x Power On/Off Button
1x AT/ATX Mode Switch
1x PC/Car Mode Switch
1x Clear CMOS Switch
Storage 2.5" HDD / SSD 1x Removable 2.5" SATA HDD Bay
M.2 N/A
mSATA 1x mSATA Socket (Mux with 1x Mini-PCIe and CFast)
RAID N/A
Expansion Mini PCIe  1x Full-size Mini-PCIe Socket (Mux with mSATA), 1x Full-size Mini-PCIe Socket
M.2 N/A
PCI / PCIe N/A
SIM Holder 2x SIM Sockets
Power Power Mode Supports Hardware AT, ATX Power Mode
Power Supply Voltage 9~48V DC Input
Power Connector Type 1x 3-pin Terminal Block Connector
Power Ignition Power Ignition Sensing
Power Adapter 1x Optional AC/DC 12V/5A, 60W Power Adapter
Protection Over Voltage Protection (OVP) up to 52V
Reverse Voltage Protection (RVP) up to -48V
Over Current Protection (OCP) 20A
Mounting Type VESA Mount (100mm x 100mm) / Wall Mount
Environment Operating Temperature -40~70 (-40~158° F)
Storage Temperature -40~80 (-40~176° F)
Humidity 10%~95% (Non-condensing)
Vibration 5 Grms, 5-500 Hz, 3 Axis
Shock 50 Grms, Half-sine 11 ms
General Certication CE/FCC
Thermal Dissipation Fanless System
Ingress Protection N/A
Material Extruded Aluminum with Heavy Duty Metal
Dimensions (W x H x D) 168 x 47 x 135mm (6.61” x 1.85” x 5.31")
Net Weight 1.15 kg (2.53 Ib)
Operating System Windows 10 (IoT/Professional), Linux

Ordering Information

Part No. Description
DM-110P/PM-2000 10.4" 4:3 (1024 x 768), 500 nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In, DC 9~48V, Phoenix Connector
DM-112P/PM-2000 12.1" 4:3 (1024 x 768), 600nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In, DC 9~48V, Phoenix Connector
DM-115P/PM-2000 15" 4:3 (1024 x 768), 350nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In, DC 9~48V, Phoenix Connector
DM-115PW/PM-2000 15.6" 16:9 (1920 x 1080), 450nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In, DC 9~48V, Phoenix Connector
DM-117P/PM-2000 17" 5:4 (1024 x 768 ), 350nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In, DC 9~48V, Phoenix Connector
DM-119P/PM-2000 19" 5:4 (1280 x 1024), 350nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In, DC 9~48V, Phoenix Connector
DM-121PW/PM-2000 21.5" 16:9 (1920 x 1080), 300nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In, DC 9~48V, Phoenix Connector
DM-124PW/PM-2000 24" 16:9 (1920 x 1080), 300nits, Fanless Panel PC with Intel® Celeron® J1900 Quad-core Processor, Projected Capacitive Touch, 1x USB3.2 Gen 2, 4x USB2.0, 2x RS232/422/485, 2x GbE, 1x DP, 1x VGA, 2x 2W Speakers, Line Out, Mic In,  DC 9~48V, Phoenix Connector

Packing List

Description
1x DM-1XXP(W)/PM-2000
Panel Mount Kits
Screw Pack

Optional Items

Part No. Description
AWD-4G003 4G(LTE) EG25-G + 2 Antennas, Full Size (For Global)
AWD-WF001 Wi-Fi 802.11 bgn (1T1R) + 1 Antenna (Single Band), Half-size miniPCIe
AWD-WF003 Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half-size mini PCIe
55000-0025-M5 Adapter AC/DC 12V 5A 60W GST60A12-GAV with 3-pin Terminal Block Plug 5.0mm Pitch
30100-0003-CA Power Cord, 3-pin US Type, 180cm
30101-0005-CA Power Cord, 3-pin EU Type, 180 cm
