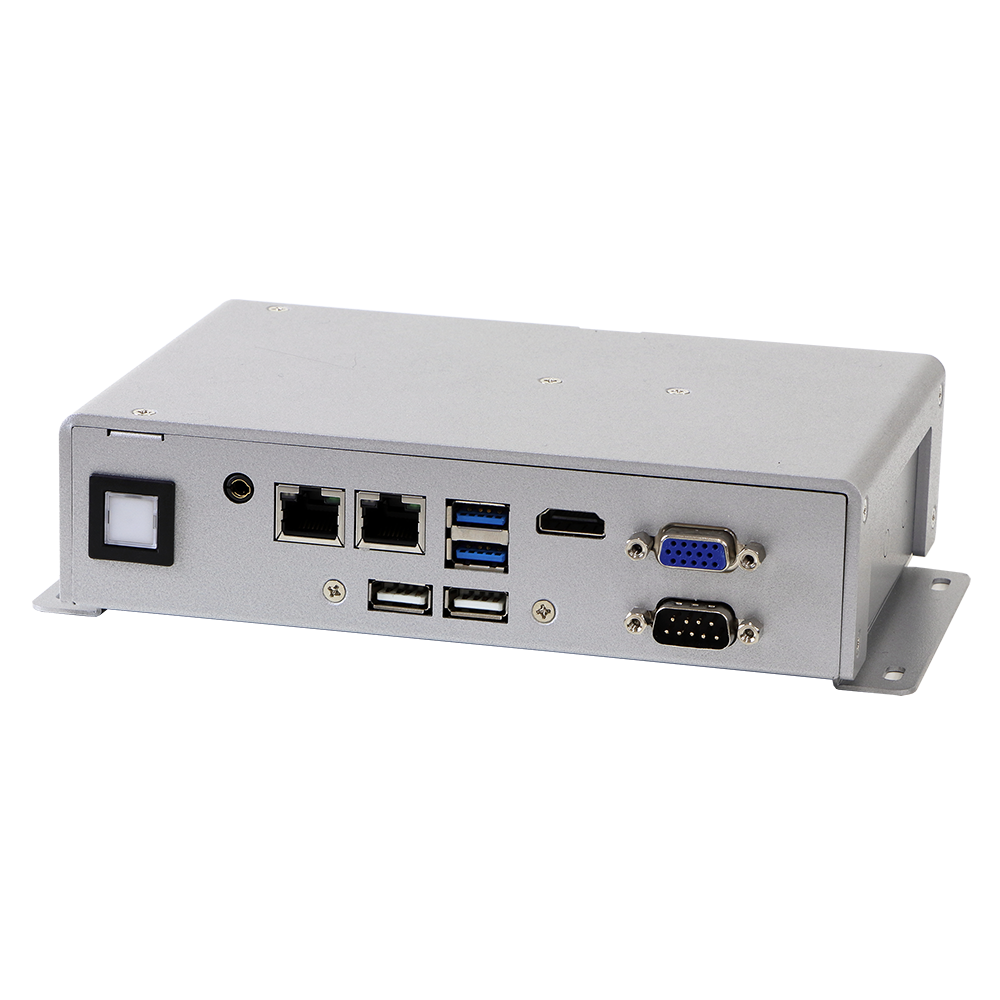

BPC-3025

Ultra Compact IoT Gateway Solution Fanless Embedded Box PC with Intel® Apollo Lake Processor

Home » Products » Embedded Box PC » BPC-3025

  • Quote

  • Datasheet

  • Driver

Features

list_dot_01.pngIntel® Pentium® N4200/ Celeron® N3350 Processor
list_dot_01.pngSupport 2 LAN, 2 COM, 4 USB
list_dot_01.pngSupport Wide Range 9~36V DC input
list_dot_01.pngSupport DIN Rail, Wall Mount

Applications

list_dot_01.pngIoT Gateway
list_dot_01.pngFactory Automation
list_dot_01.pngDevices Monitoring
list_dot_01.pngIntelligent Transportation Systems
Model BPC-3025-1A1 BPC-3025-2A1
Processor System CPU Intel® Pentium® N4200 Processor
(Quad Core, 1.1GHz, up to 2.5GHz)
 		Intel® Celeron® N3350 Processor
(Dual Core, 1.1GHz up to 2.4GHz)
System Chipset N/A
BIOS UEFI
Memory Technology Dual channel DDR3L 1866 MHz SDRAM
Max. Capacity 8 GB
Socket 2 204-pin SO-DIMM
Display Graphics Engine Intel® HD Graphics 500
VGA Max resolution, Up to 1920 x 1200 @ 60Hz
DVI-D N/A
HDMI HDMI 1.4b, Max Resolution Up to 3840 x 2160 @30Hz
Display Port
 N/A
Multi Display
 VGA + HDMI
Front I/O Interface USB 4, 2 USB 3.0, 2 USB 2.0
Serial

2, COM ports (1 RS-232/422/485, 1 RS-232)

GPIO 1, GPIO (8 bit), (optional)
Ethernet
 Dual GbE, Intel® i211AT, 10/100/1000 Mbps
Audio
 Line out
Others
 N/A
Rear I/O Interface
 USB
 N/A
Serial
 N/A
GPIO
 N/A
Ethernet
 N/A
Audio
 N/A
Others N/A
Expansion
 miniPCIe/ M.2 Slot
 1 miniPCIe (full-size)
PCI/ PCIe Slot
 N/A
SIM
with SIM holder
Storage
 HDD/SSD N/A
RAID N/A
mSATA/M.2 1 x M.2 2242 B key or B+M key
Power
 Power On Model AT/ ATX

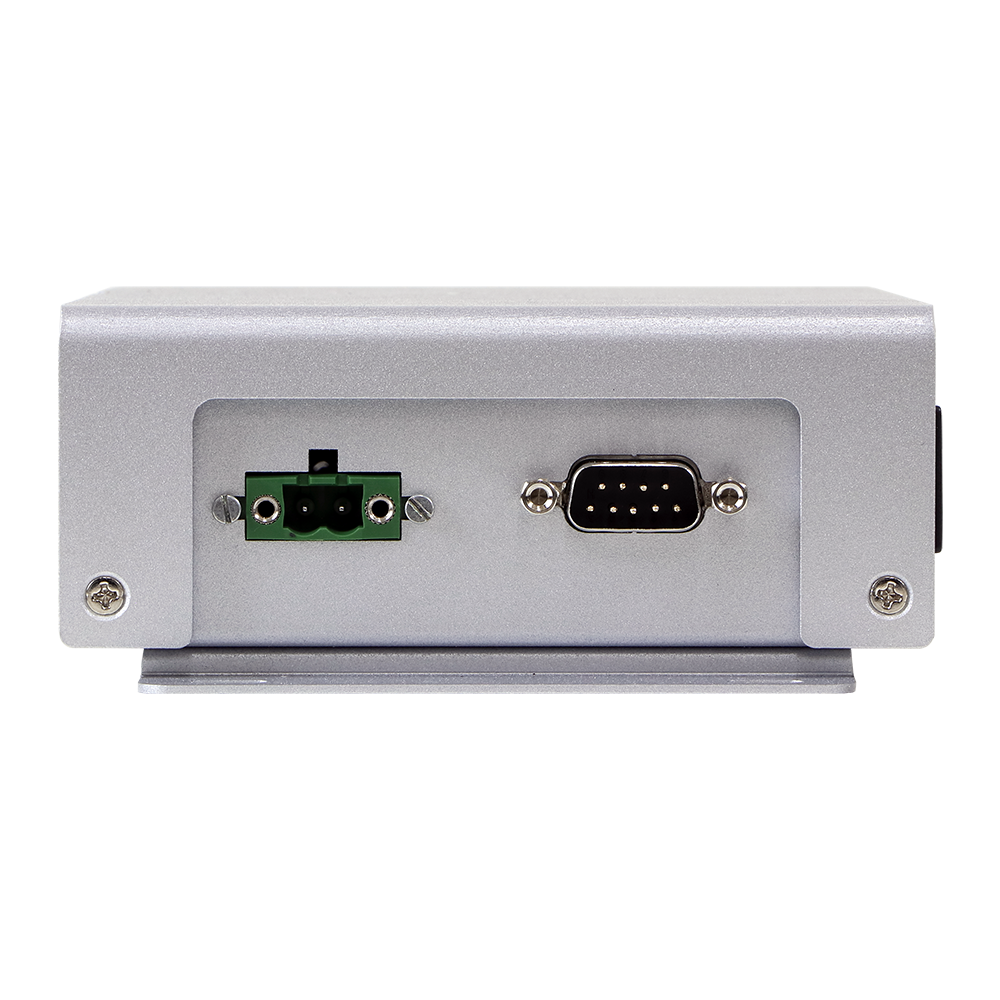

Power Supply Voltage 9-36 V DC input (Phoenix Connector), 6.7-1.7 A
Power Consumption (Typical) 0.69A @ 12 V (8.3 W) 0.69A @ 12 V (8.3 W)
Power Consumption (Max.)
3.18A @ 12 V (38.2W) 3.18 A @ 12 V (38.2W)
Battery CR2032; 3.3V

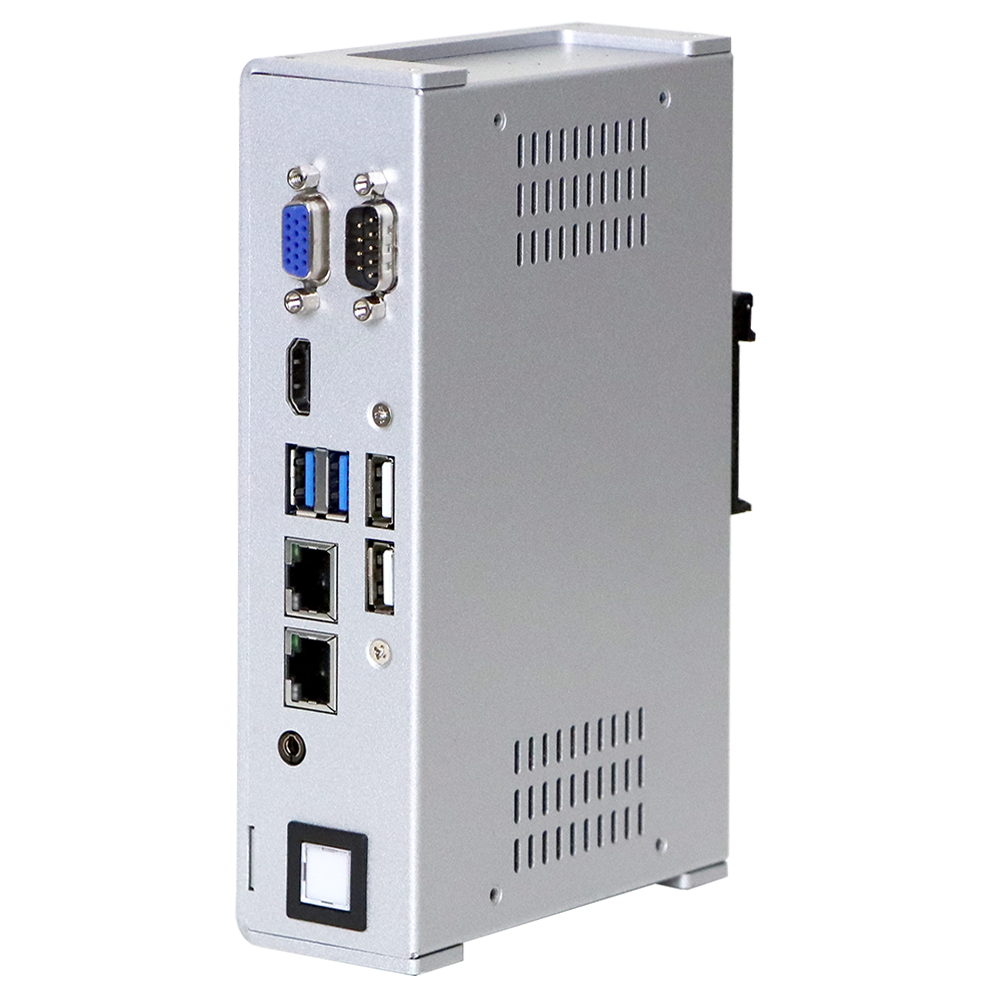

Mounting Type Wall Mount, DIN Rail
Environment
 Operating Temperature -20~60° C (-4~140° F) (Humidity: 60° C @ 80% RH Non-condensing) w/ Extended Temp. RAM & M.2 SSD
Storage Temperature -40~85° C (-40~185° F) (Humidity: 60° C @ 95% RH Non-condensing)
Humidity 5~95% @ 40° C, non-condensing
Vibration
 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
 20 G, IEC 60068-2-27, half sine, 11 ms duration
General Certification TBD
Thermal Dissipation Fanless System
Ingress Protection
 IP40 Proctection
Dimensions (W x H x D)
 180 x 50 x 115 mm (7.09” x 1.97” x 4.53”)
Net Weight 0.77kg ( 1.7Ib)
Operating System Windows 10 IoT 64Bit, Linux kernal 4.0.x or above


Packing List

Description
1 x BPC-3025
1 x Power Adaptor
1 x Power Cord
1 x DIN Rail Kits






Ordering Information

Part No. Description
BPC-3025-1A1 Intel® Pentium® N4200 2.5GHz Quad Core CPU, 2 x DDR3L memory, 2 USB3.0, 2 USB2.0, 1 RS-232/422/485 , 1 RS-232, 2 x GbE, 1 VGA, 1 HDMI, DC 9~36V, Phoenix Connector, DIN Rail
BPC-3025-2A1 Intel® Celeron® N3350 2.4GHz Dual core CPU, 2 DDR3L memory, 2 USB3.0, 2 USB2.0, 1 RS-232/422/485 , 1 RS-232, 2 x GbE, 1 VGA, 1 HDMI, DC 9~36V, Phoenix Connector, DIN Rail

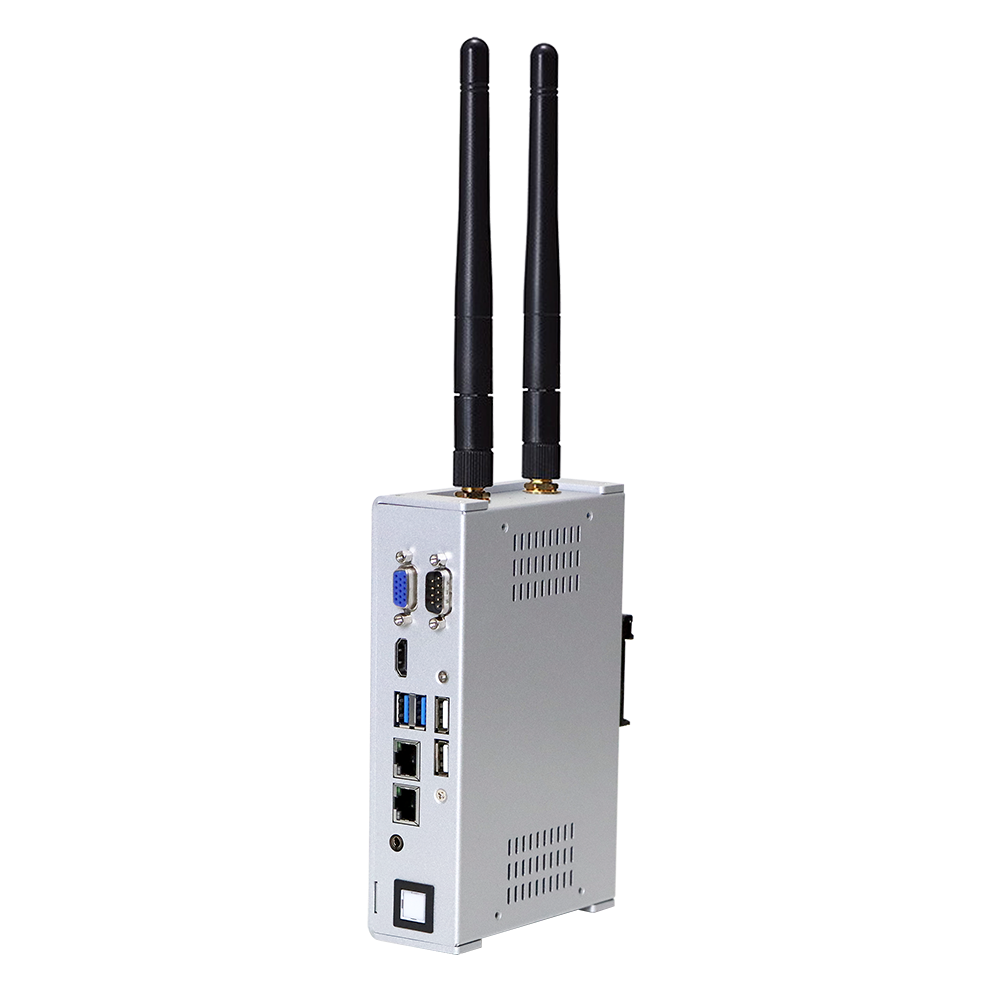

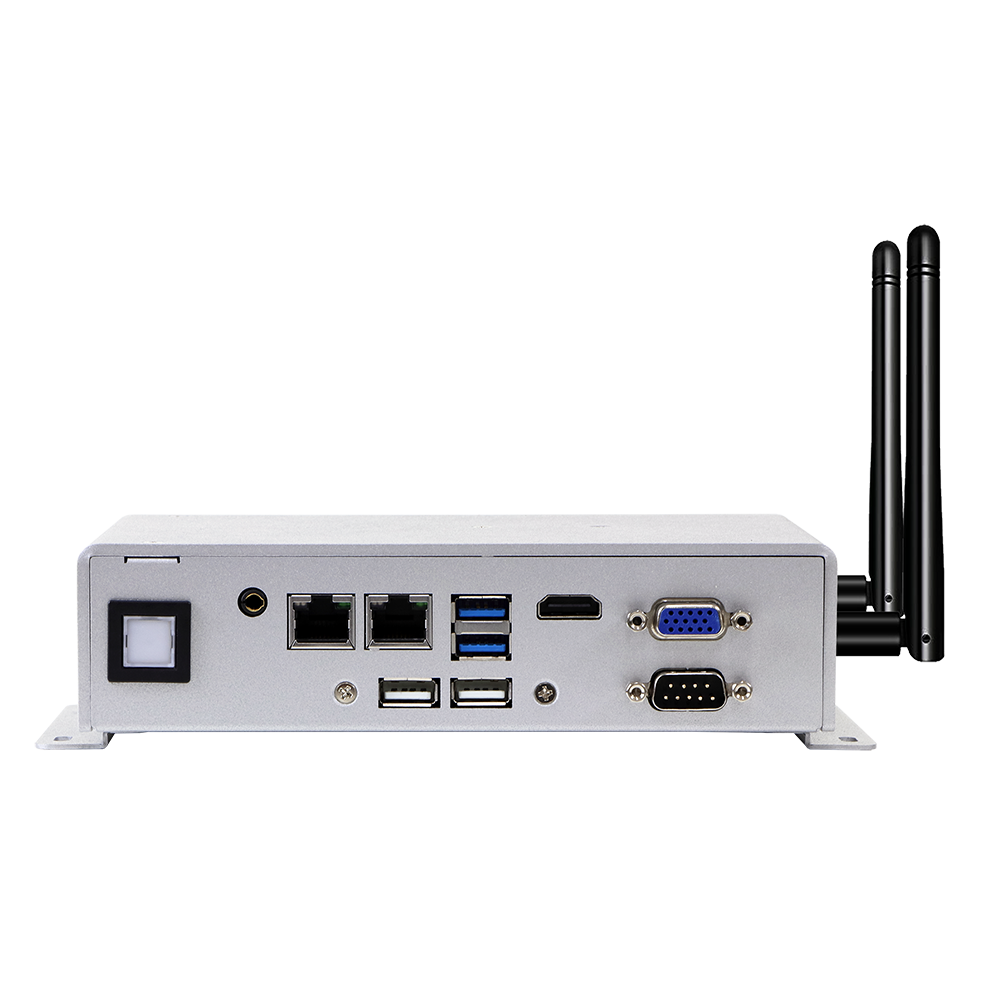

Optional Items

Part No.
 Description
AWD-WF001
 wifi 802.11 b/g/n (1T1R) + 1 antenna , Half size
AWD-WF003
 wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), Half size
AWD-3G002
 3G UC20-G(HSPA+)+ 1 antenna, Full size with SIM socket
AWD-4G001
 4G(LTE) EC20-E+ 2 antenna, Full size with SIM socket
