PPC-N153

Product Comparison

PPC Series

PPC-N153

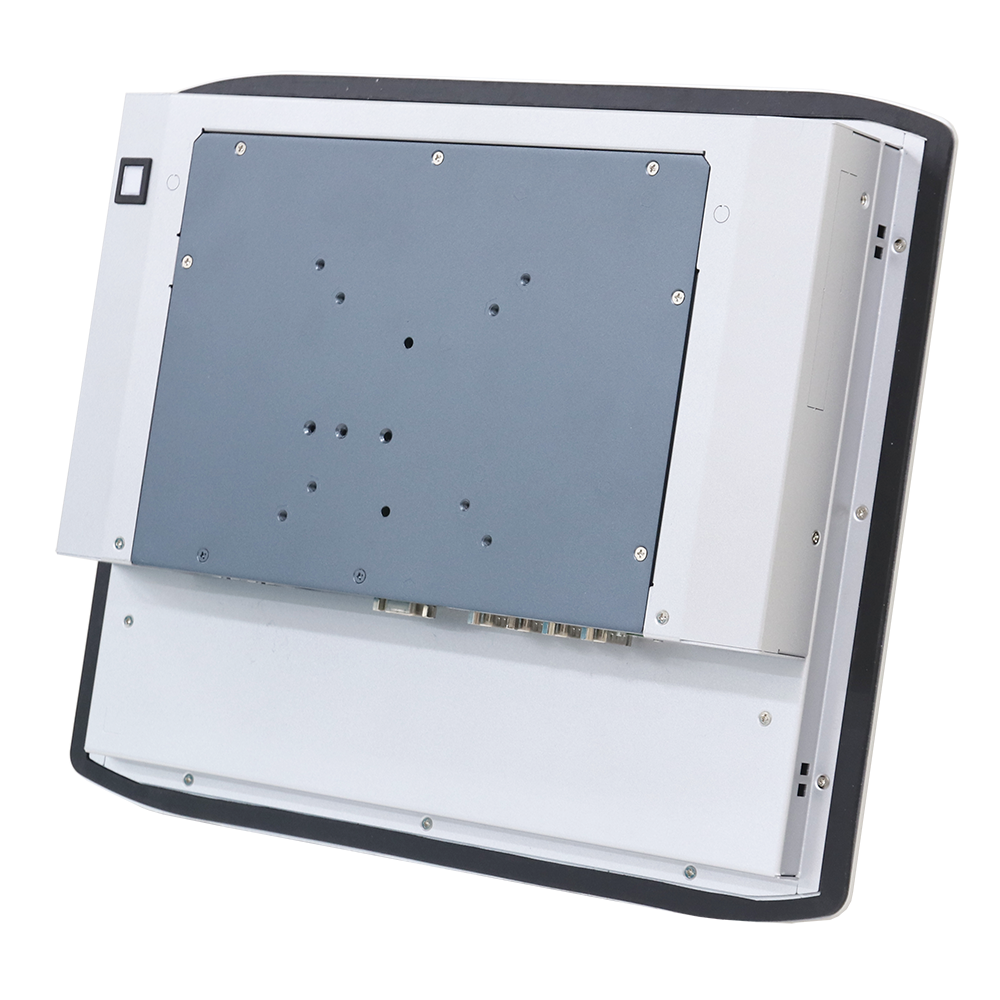

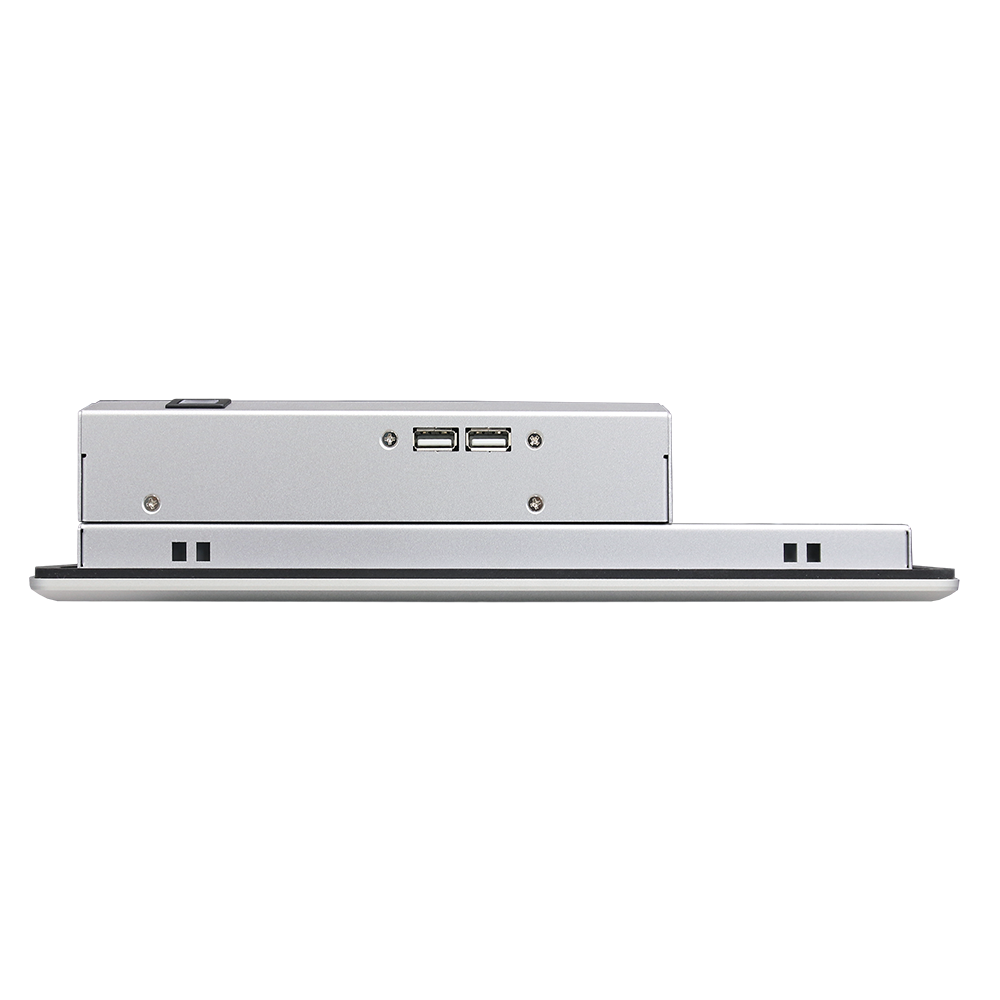

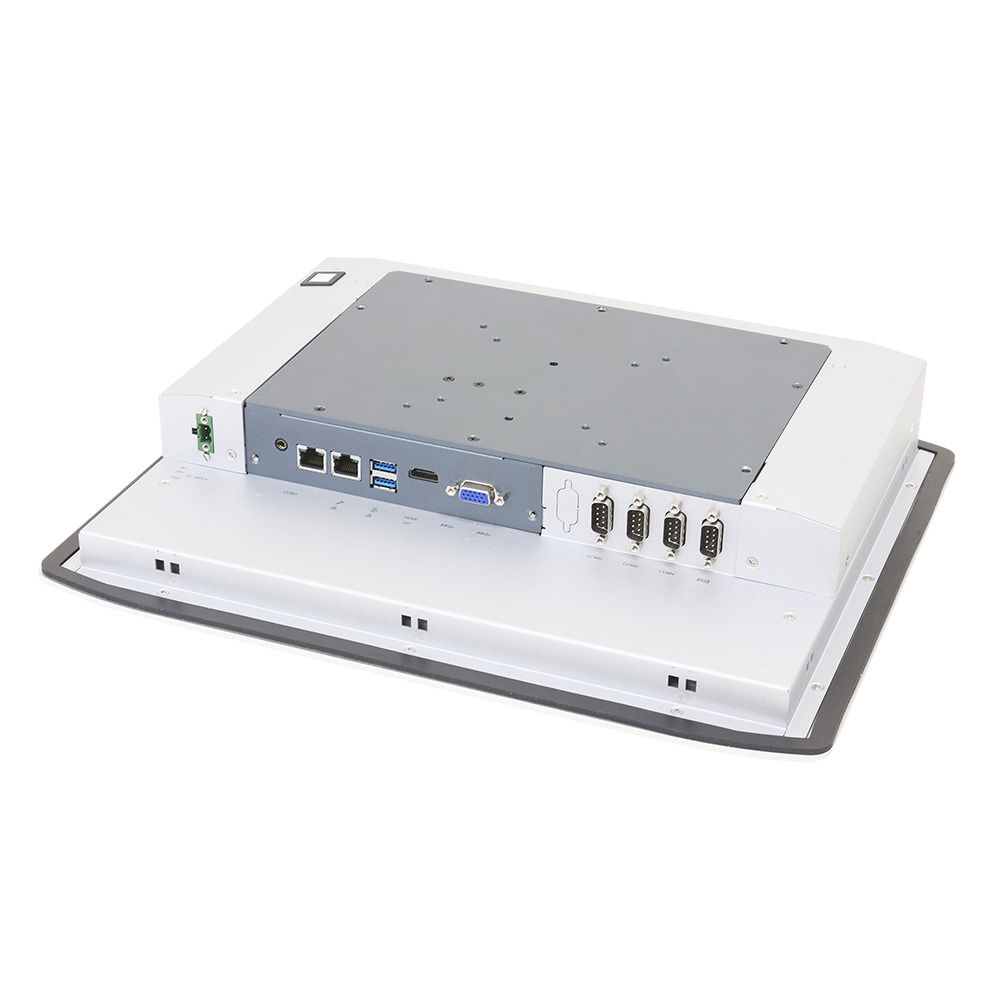

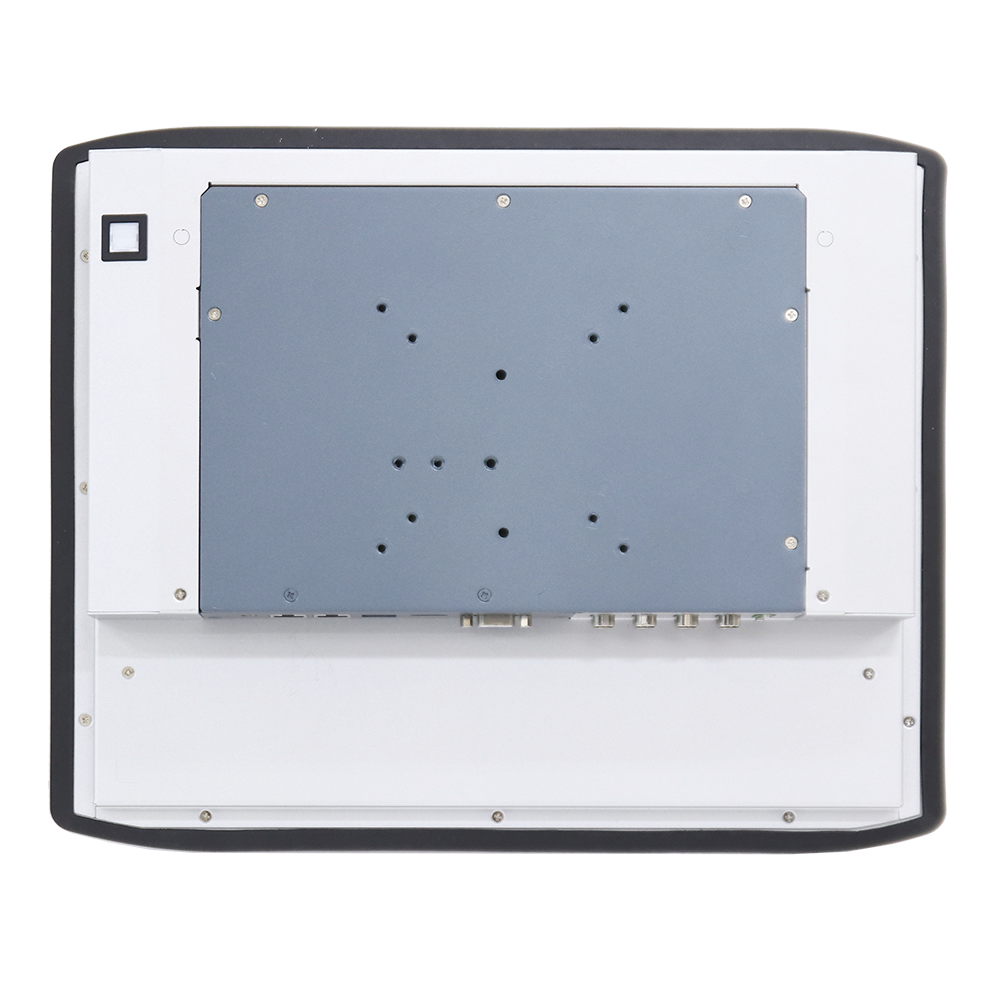

15” Fanless Aluminum IP66 Protection Touch Panel PC with Intel ® Pentium®N4200/ Celeron® N3350 Processor

Quote
Datasheet

Driver

Features

15” TFT XGA LED Panel with Projected Capacitive/Resistive Touch Display

Embedded Intel® Pentium® N4200/ Celeron® N3350

System Memory up to 8 GB DDR3L 1866 SDRAM

Supports Aluminum Front Cover IP66 Protection

Internal SATA 2.5” HDD and M.2 Socket

Panel and VESA Mount

Applications

Human Machine Interface (HMI)

Factory / Manufacturing Automation

ATM / Self-service / Kiosk Applications

Vending Machine / Ticketing Machine

Specifications
Ordering Information

Model		PPC-N153P-1A1	PPC-N153P-2A1	PPC-N153R-1A1	PPC-N153R-2A1
Processor System	CPU	Intel® Pentium® N4200	Intel® Celeron® N3350	Intel® Pentium® N4200	Intel® Celeron® N3350
	Frequency	Quad-core up to 2.5GHz	Dual-core up to 2.4GHz	Quad-core up to 2.5GHz	Dual-core up to 2.4GHz
	System Chipset	N/A
	Cache	2 MB
	BIOS	UEFI
Memory	Technology	DDR3L 1866 MHz SDRAM
	Max. Capacity	8 GB
	Type	2x 204-pin SO-DIMM
Panel	Panel Size	15"
	Panel Type	LCD Panel
	Aspect Ratio	4:3
	Resolution	XGA, 1024 x 768
	Viewing Angle	80 x 80 (H) x 80 x 80 (V)
	Brightness	300 cd/m2
	Contrast Ratio	600:1
	Response Time	8 msec
Touchscreen	Touchscreen Type	Projected Capacitive		5-wire Resistive
	Surface Hardness	7 Mohs		3 Mohs
	Durability	N/A		36 Millions Times
	Transparency	90% (±3%)		80% (±3%)
Display	HDMI	1x HDMI 1.4b, up to1920 x 1200 @ 60Hz
	DP	N/A
	VGA	1x VGA, up to 1920 x 1200 @ 60Hz
	DVI	N/A
I/O Interface	USB	2x USB 3.0 and 2x USB 2.0
	Serial Port	3x RS-232 and 1x RS-232/422/485
	Ethernet	2x GbE, 10/100/1000 Mbps (Intel i211AT)
	Audio	Line Out
	GPIO / DIO	8-pin Digital I/O (DB-15 connector)
	Antenna Hole	N/A
	Others	N/A
Storage	2.5" HDD / SSD	1x Internal 2.5” HDD/SSD
	M.2	1x M.2 B/M Key 2242
	mSATA	N/A
	RAID	N/A
Expansion	Mini PCIe	1x Full Size
	M.2	N/A
	PCI / PCIe	N/A
	SIM Holder	1
Power	Power Mode	AT / ATX
	Power Supply Voltage	9-36V DC Input
	Connector Type	2-pin Terminal Block
	Power Consumption (Typical)	1.2A @ 12V (13.44 W)
Mounting	Type	VESA Mount / Panel Mount
Environment	Operating Temperature	-20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & 2.5” SSD
	Storage Temperature	-40~85°C (-40~185° F)
	Humidity	5~95% @ 40° C, Non-condensing
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 Hour per Axis
	Shock	20 G, IEC 60068-2-27, Half Sine, 11 ms Duration
General	Certification	CE / FCC Class A
	Thermal Dissipation	Fanless
	Ingress Protection	Front IP66
	Material	Aluminum Front Cover
	Dimensions (W x H x D)	386 x 316 x 69 mm (15.19" x 12.44" x 2.71")
	Net Weight	4.2 kg (9.25lb)
	Operating System	Windows 10 IoT

Ordering Information

Part No.	Description
PPC-N153P-1A1	15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Pentium® N4200 CPU, Projected Capacitive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, 8-bit GPIO, Line Out, DC 9~36 V, Phoenix Connector
PPC-N153P-2A1	15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Celeron® N3350 CPU, Projected Capacitive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, 8-bit GPIO, Line Out, DC 9~36 V, Phoenix Connector
PPC-N153R-1A1	15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Pentium® N4200 CPU, 5-wire Resistive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, 8-bit GPIO, Line Out, DC 9~36 V, Phoenix Connector
PPC-N153R-2A1	15" 4:3 (1024 x 768), 300 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Celeron® N3350 CPU, 5-wire Resistive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, 8-bit GPIO, Line Out, DC 9~36 V, Phoenix Connector

Packing List

Description
1 x PPC-N153

Optional Items

Part No.	Description
AWD-3G002	Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-4G001	4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001	Wi-Fi 802.11 bgn (1T1R) + 1 Antenna (Single band), Half-size
AWD-WF003	Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-WF004	Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type
AWD-WF005	Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type
