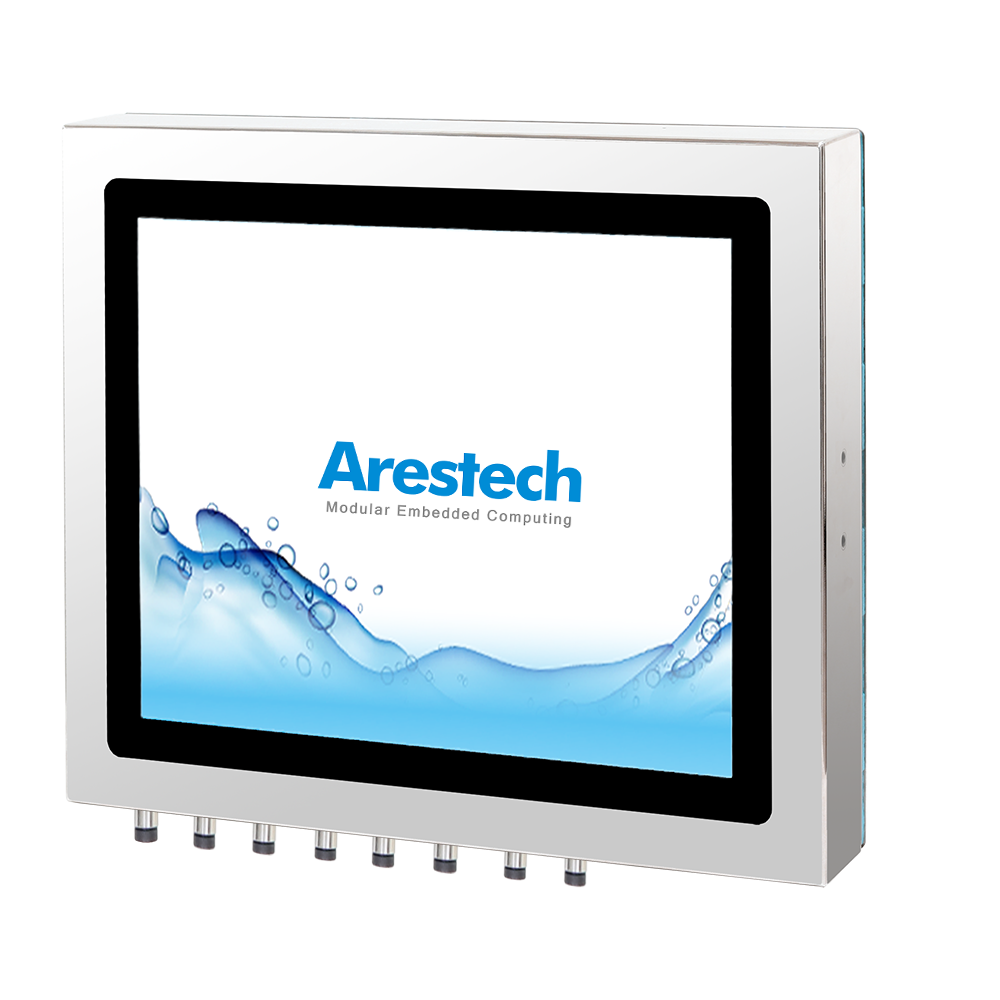

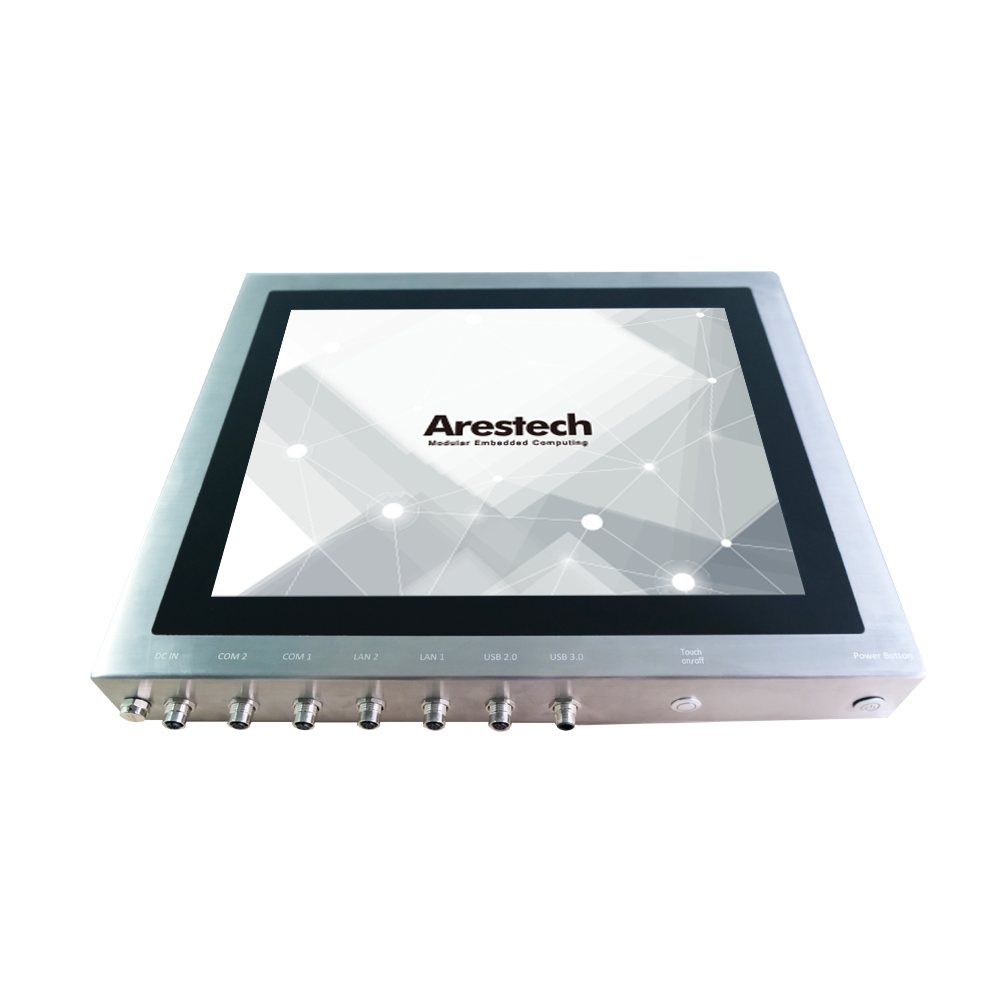

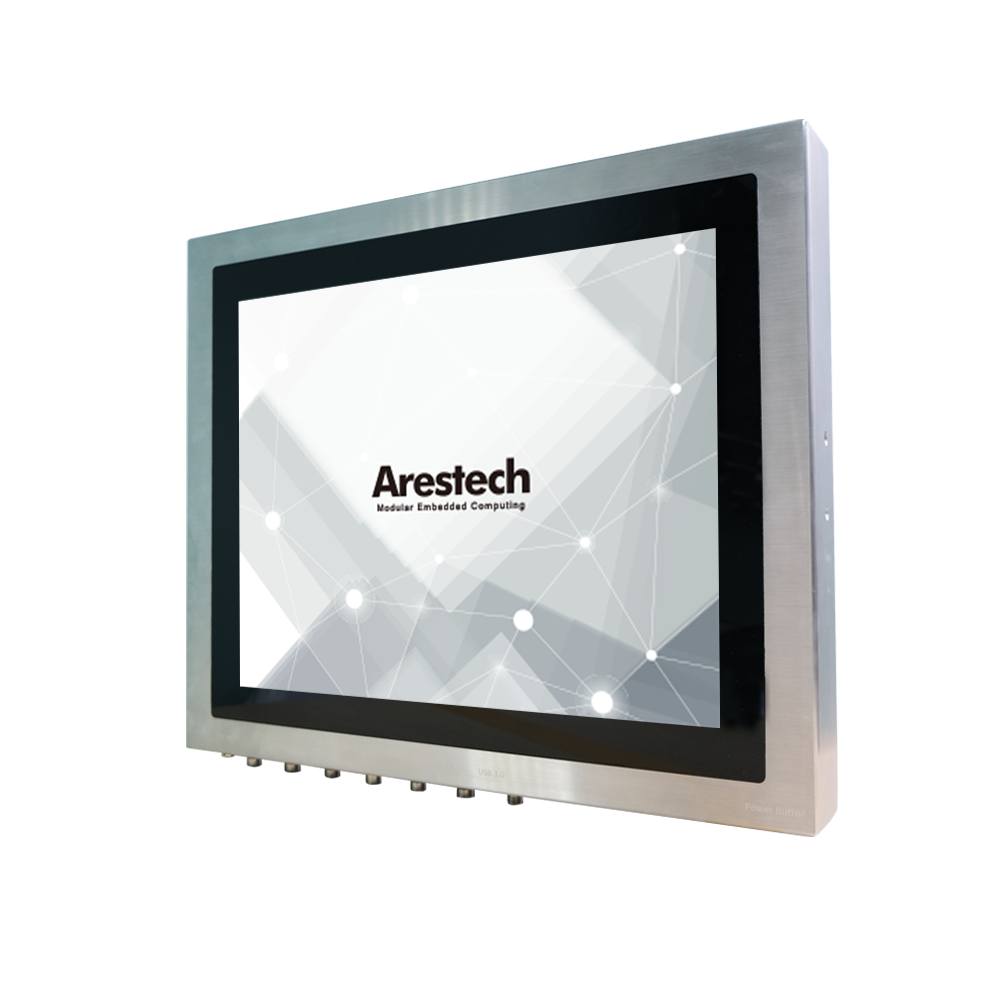

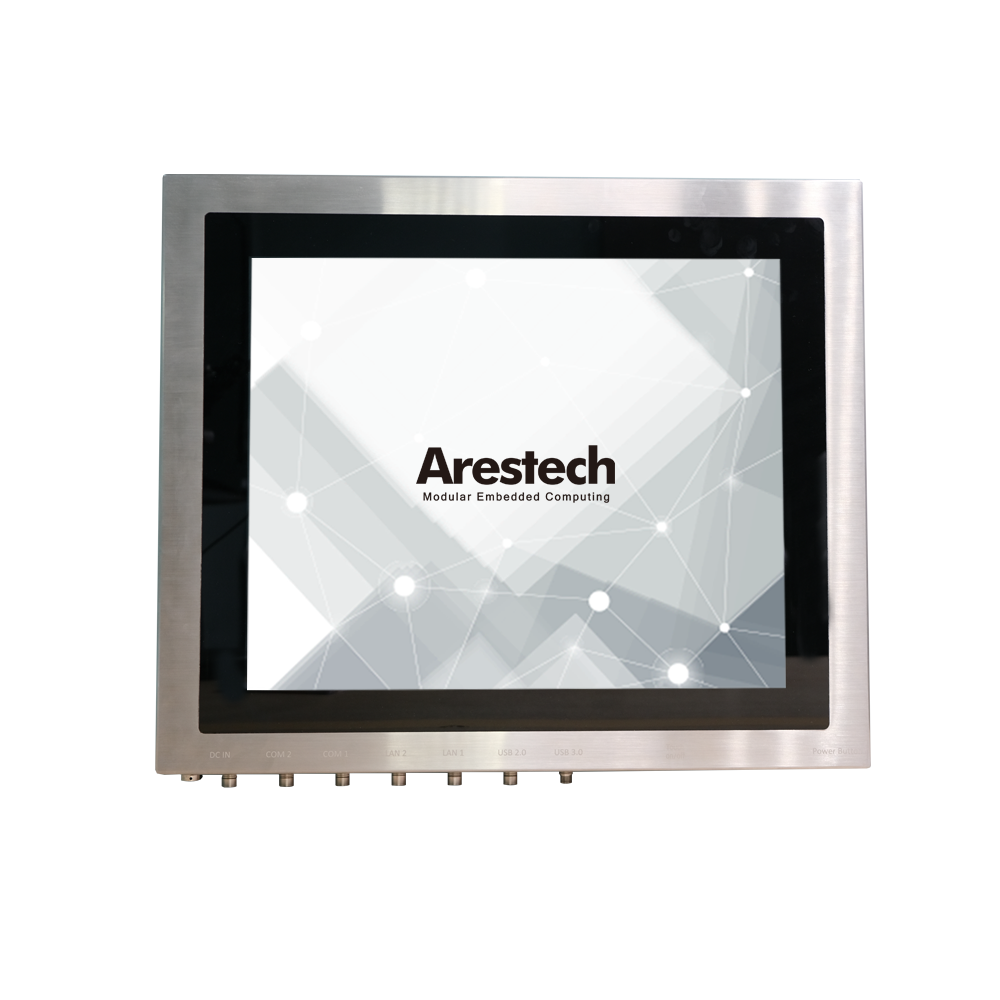

PPC-Z1964

Model

PPC-Z1964P

PPC-Z1964R

Processor System

CPU

Intel® Celeron® J6412 Processor

Frequency

up to 2.60GHz

BIOS

UEFI

TPM

fTPM

Memory

Technology

Dual Channel DDR4 3200MHz (un-buffered and non-ECC)

Max. Capacity

Support up to 32GB

Type

2 x 260-pin SO-DIMM

Panel

Panel Type

19" SXGA LCD

Aspect Ratio

4:3

Resolution

1280 x 1024

Brightness

350cd/m²

Color

16.7M

Contrast Ratio

1000:1

Viewing Angle

170 (H) x 160 (V)

Backlight MTBF (typ.)

70,000Hrs

Touchscreen

Touchscreen Type

Projected Capacitive (P-CAP)

5-wire Resistive

Surface Hardness

7Mohs

3Mohs

Transparency

90% (±3%)

80% (±3%)

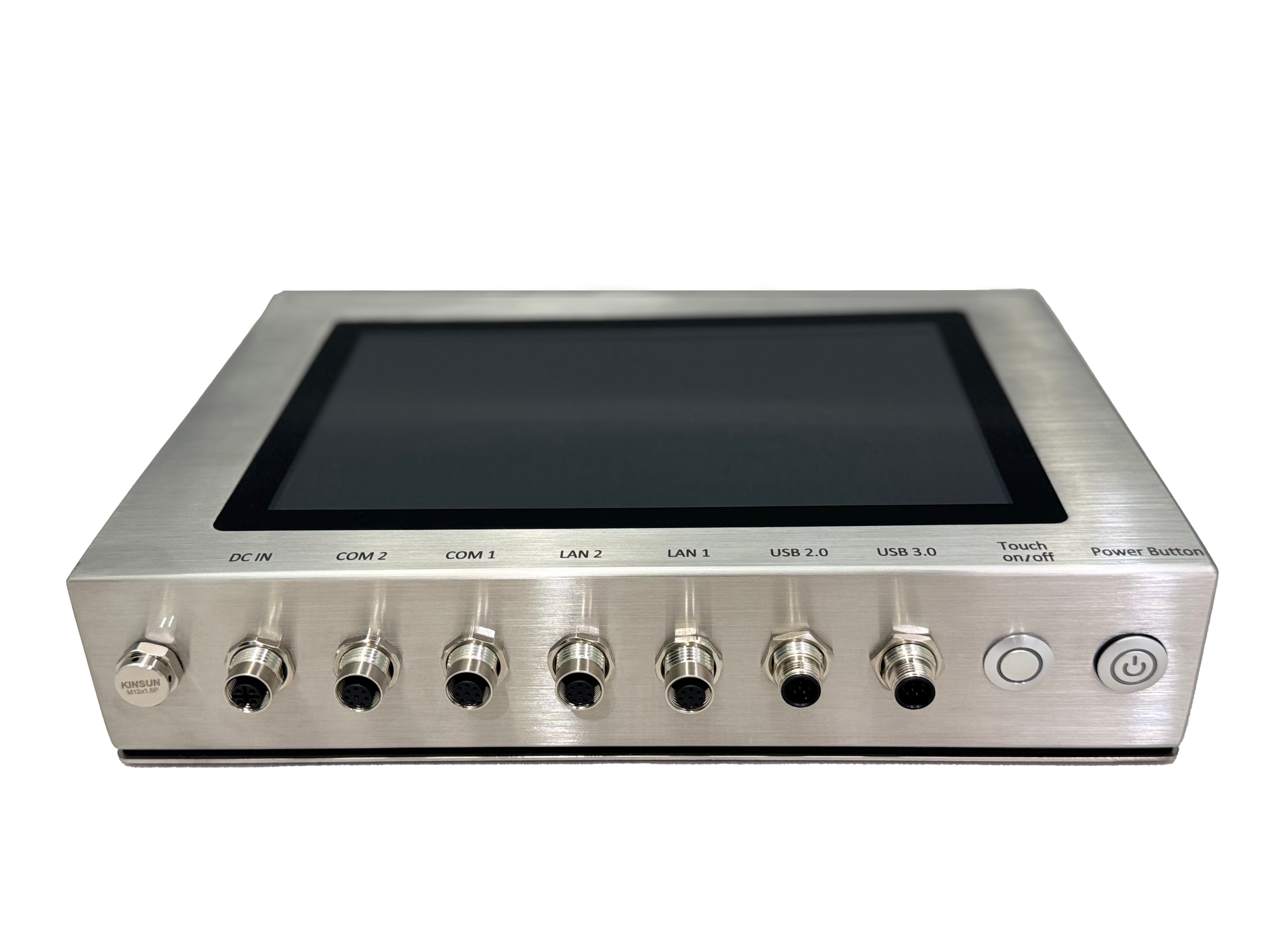

I/O Interface

Ethernet

2 x GbE (Intel® I210-AT) (M12 Connector)

Serial Port

2 x RS-232/422/485 (M12 Connector)

USB

2 x USB2.0 (from 1 x M12 Connector)

1 x USB3.2 Gen1 (M12 Connector)

Audio

N/A

Other

N/A

Storage

2.5" SSD/HDD

Internal 1 x 2.5” SSD/HDD

M.2

Internal 1 x M.2 2280 M-Key (PCIe x2, SATA)

Expansion

Mini-PCIe

1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM)

M.2

1 x M.2 2280 M-Key (PCIe x2, SATA)

Power

Power Mode

AT/ATX

Power Supply Voltage

12~36V DC Input

Power Connector Type

M12 Connector

Environment

Operating Temperature

-10°C ~ +60°C

Storage Temperature

-30°C ~ +70°C

Humidity

10% ~ 95%, Non-condensing

Vibration

2.16Grms, 5 - 500Hz, 0.5hr/axis

Shock

20G, half sine, 11ms

General

Certification

CE/FCC Class A

Ingress Protection

Full System IP66/69K

Material

Full SUS304 Stainless Steel (Optional SUS316)

Mounting

VESA (100 x 100mm) / Yoke / Wall

Dimensions (W x H x D)

499 x 420 x 66.5mm

Net Weight

10.0kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
