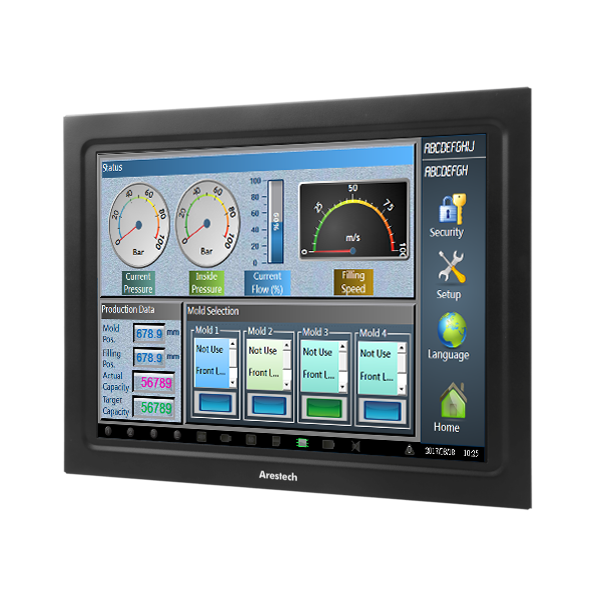

15” XGA LCD Panel up to 1024 x 768 Resolution5-wire Resistive / Projected Capacitive Touch Technology12-24 V DC Power Input with Terminal BlockCombined with RS-232 and USB Touch Interfaces-20~60° C Operating TemperaturePanel and VESA MountingFeatures
15” XGA LCD Panel up to 1024 x 768 Resolution5-wire Resistive / Projected Capacitive Touch Technology12-24 V DC Power Input with Terminal BlockCombined with RS-232 and USB Touch Interfaces-20~60° C Operating TemperaturePanel and VESA MountingApplications
Embedded HMI Display SystemFactory / Manufacturing AutomationATM / Self-service / Kiosk ApplicationsVending / Ticketing Machines| Model | TPM-3215P | TPM-3215R | |||
| Display | Panel Size | 15” LCD Panel | |||
| Resolution | 1024 x 768 (XGA) | ||||
| Viewing Angle | 80 x 80 (H) x 80 x 80 (V) | ||||
| Brightness | 300 (cd/m2) | ||||
| Color Support | 16.7 M | ||||
| Contrast Ratio | 600:1 | ||||
| Response Time | 8 (msec) | ||||
| Touchscreen | Touchscreen Type | Projected Capacitive | 5-Wire Resistive | ||
| Surface Hardness | 7 Mohs | 3 Mohs | |||
| Durability | - | 10 million touches | |||
| Transparency | 90% (±3%) | 80% (±3%) | |||
| I/O Interface | Video Interface | 1x VGA | |||
| Touch Interface | Projected Capacitive (for USB only) / 5-Wire Resistive (for USB and RS-232) | ||||
| OSD Control | Function Key |
5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language |
|||
| Power | Power Connector | Pheonix Terminal Block, 2 pins | |||
| Power Input | 12-24 V DC power input, single power source (Typical) | ||||
| Power Consumption | 10.1 W | ||||
| Environment | Operating Temperature | 0~50° C (32~122° F) | |||
| Storage Temperature | -30~70° C (-22~158° F) | ||||
| Humidity | 5~95% @ 40° C, Non-condensing | ||||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||||
| General | Ingress Protection | IP54 | |||
| Dimensions (W x H x D) | 364.60 x 290.60 x 39.80 mm (14.35” x 11.44” x 1.56”) | ||||
| Weight | 3.7kg (8.14 lb) | ||||
| Operating System | Windows CE/XP/7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu | ||||
Ordering Information
| Part No. | Description |
| TPM-3215P-A2 | 15" 4:3 (1024 x 768), 300 nits, SECC IP54 Front Panel, Projected Capacitive Touch, USB Interface, 1x VGA, DC 12~24V, Phoenix Connector |
| TPM-3215R-A2 | 15" 4:3 (1024 x768), 300 nits, SECC IP54 Front Panel, 5-wire Resistive Touch, USB & RS-232 Interfaces, 1x VGA, DC 12~24V, Phoenix Connector |
Packing List
| Description | |
| 1 x TPM-3215 | |
| 1 x USB Cable | |
| 1 x VGA Cable | |
| 1 x Power Adaptor (AC-to-DC, 12 V @ 5A, 60W) | |
| 6 x Panel Mounting Screws | |
Optional Items
| Part No. | Description |
| ACS-PS-US | Power Cable 3-pin, 180 cm, USA Type |
| ACS-PS-EU | Power Cable 3-pin, 180 cm, Euro Type |
| ACS-PS-CN | Power Cable 3-pin, 180 cm, China Type |
| ACS-100-STD | LCD VESA Table Stand |
