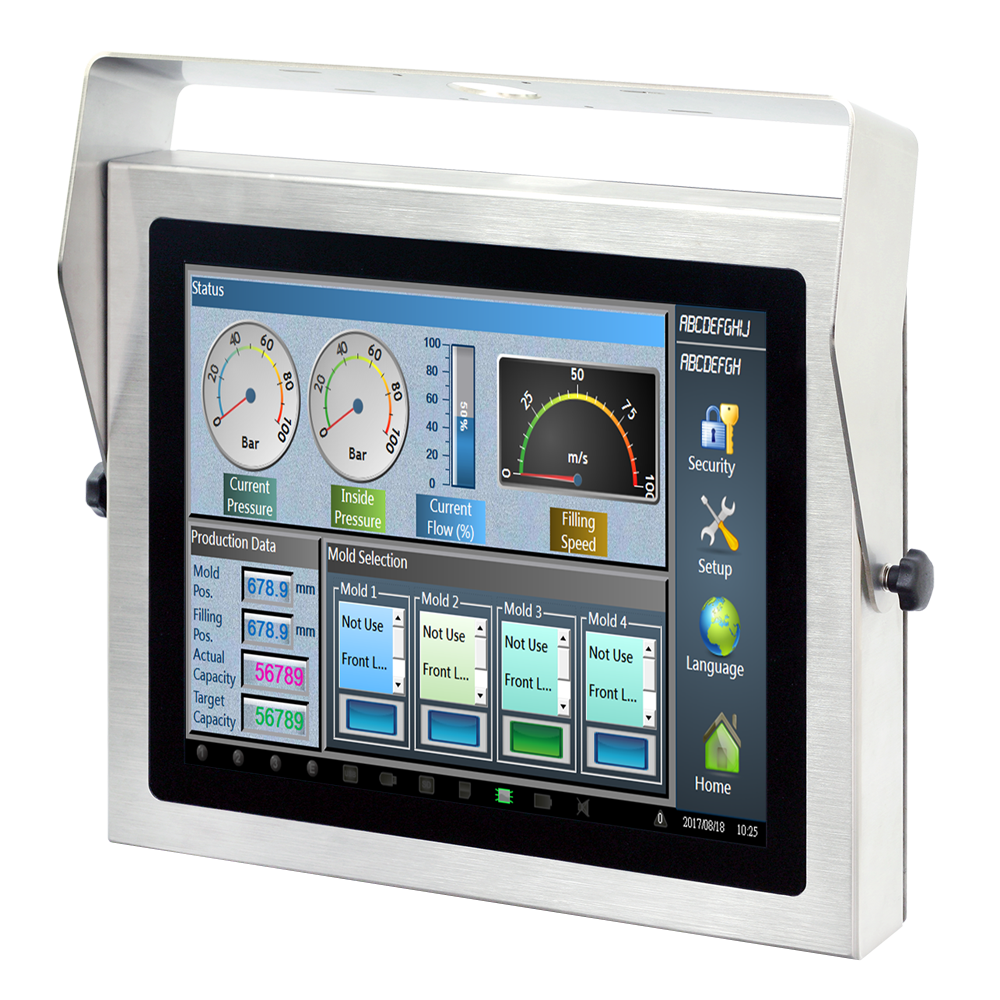

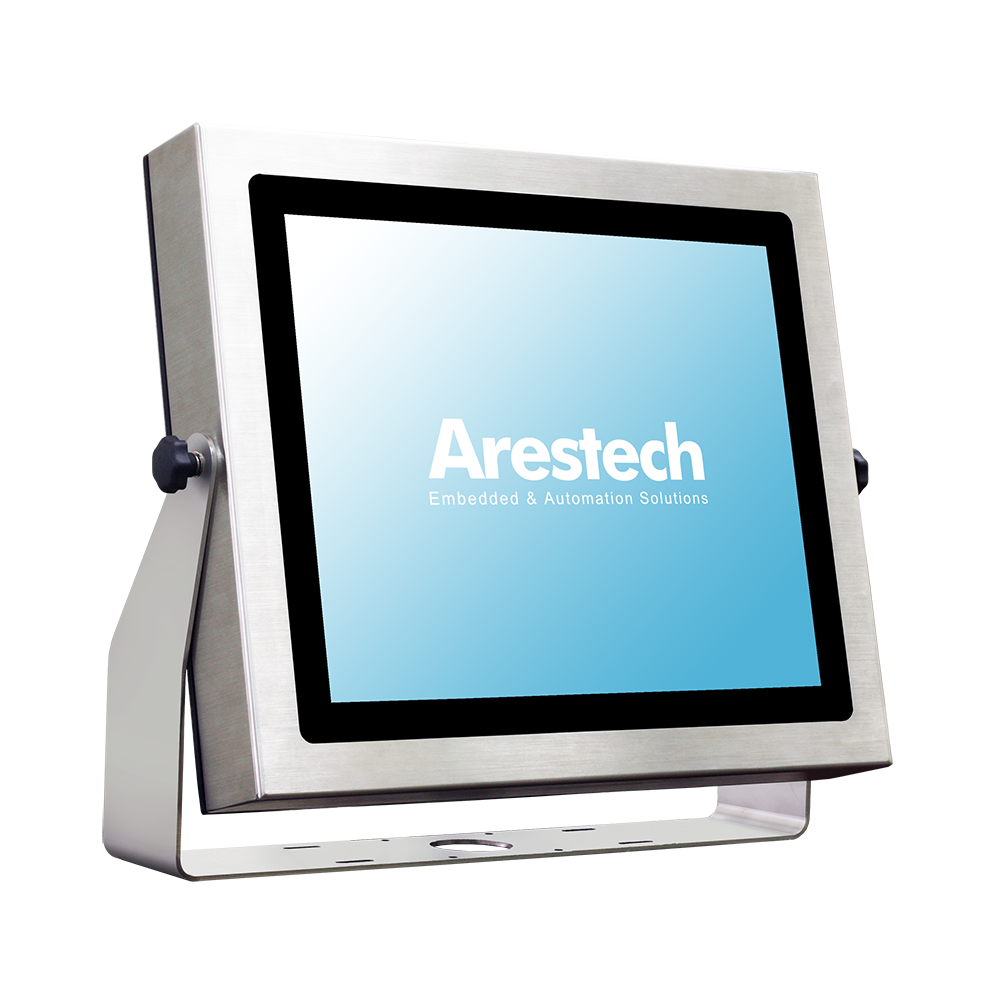

IP66/69K Protected Stainless Steel 316 Flat Panel Design17" LCD, P-CAP or 5-Wire Resistive, Resolution 1280 x 1024 (SXGA)12 ~ 24 V DC power input (M12 Connector)VGA and USB (M12 Connetor), HDMI portVESA and Yoke mountingFeatures
IP66/69K Protected Stainless Steel 316 Flat Panel Design17" LCD, P-CAP or 5-Wire Resistive, Resolution 1280 x 1024 (SXGA)12 ~ 24 V DC power input (M12 Connector)VGA and USB (M12 Connetor), HDMI portVESA and Yoke mountingApplications
Food & Beverage Processing IndustryPharmaceutical and Biopharmaceutical EquipmentEmbedded HMI Display SystemFactory Manufacturing AutomationChemical, Gas & Oil Critical Environment| Model | TPM-3617P-B6A2 | TPM-3617R-B6A1 | |
| Display | Panel Size | 17” | |
| Aspect Ratio |
4:3 |
||
| Resolution |
1280 x 1024 (SXGA) |
||
|
Viewing Angle |
85 x 85 (H) x 80 x 80 (V) |
||
|
Brightness |
350 (cd/m2) | ||
|
Contrast Ratio |
1000:1 |
||
|
Life Time |
50,000 hrs |
||
| Touchscreen |
Type |
Projected Capacitive Touch |
5-Wire Resistive |
|
Surface Hardness |
7 Mohs |
3 Mohs |
|
|
Transparency |
N/A |
80% (±3%) |
|
|
On/Off Button |
Yes |
N/A |
|

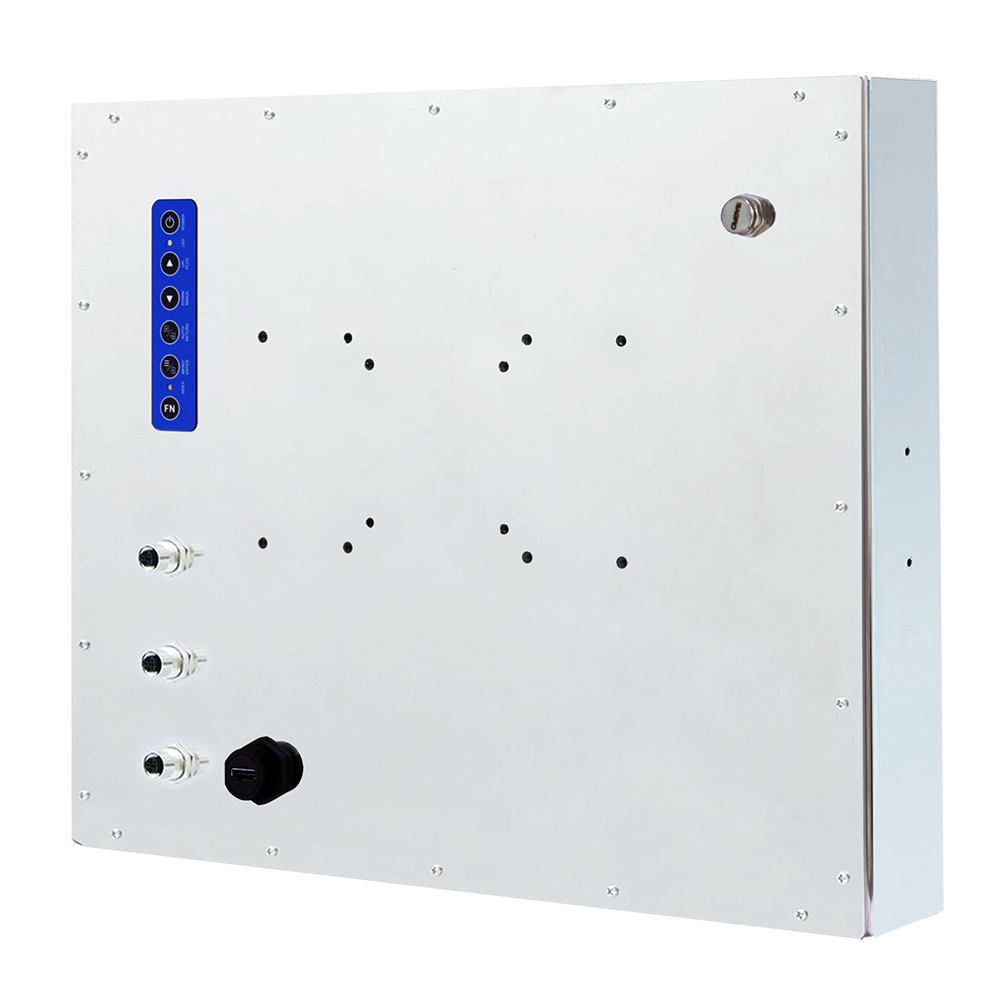

| I/O Interface |
Video Interface |
1 VGA (M12 Connector), 1 HDMI (IP67 Waterproof Connector) |
|
| Touch Interface |
1 USB (M12 Connector) |
||
|
Audio |
N/A |
||
|
Speaker |
N/A |
||
|
Others |
N/A |
||
| OSD Control |
Function Key |
1 RS-232, M12 Connector Remote OSD control (Option) 5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off |
6 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off, Funtion Key |
| Power | Power Input |
12-24 V DC power input |
|
| Power Connector |
M12 connector |
||
| Power Consumption |
22 W |
||
|
Mounting |
VESA Mount |
75mmx 75mm; 100mm x 100mm; 200mm x 100mm |
|
|
Panel Mount |
N/A |
||
|
Others |
Yoke mount |
||
| Environment | Operating Temperature |
-20~60° C (-4~140° F) |
|
| Storage Temperature |
-20~60° C (-4~140° F) |
||
| Humidity |
5~95% @ 40° C, non-condensing |
||
| Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
||
|
Shock |
Full System IP66 Protection , Stainless Steel 316 (IP69K Protection by Option) |
||
| General | Certification |
TBD |
|
|
Material, Surface Finish |
Stainless Steel 316, Brush Finished |
||
|
True Flat |
Yes |
||
| Ingress Proctetion |
Full System IP66 Protection |
||
|
Dimensions (W x H x D) |
439 X 373 X 66.9 (17.28” x 14.69” x 2.63”) |
||
|
Net Weight |
7.71 kg (17.0 lb) |
||
|
Operating System |
Windows 7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu |
||
Packing List
|
Description |
|
1 xTPM-3617 |
Ordering Information
|
Part No. |
Description |
|
TPM-3617P-B6A2 |
17" 4:3 (1280 x 1024), 350 nits, Stainless Steel 316 Full IP66/69K Protection, with Projected capacitive touch screen, USB interface,1 VGA, DC 12~24V, M12 connector, 1 HDMI IP67 Connector |
|
TPM-3617R-B6A1 |
17" 4:3 (1280 x 1024), 350 nits, Stainless Steel 316 Full IP66/69K Protection, with 5-wire Resistive touch screen, M12 connctor, USB interface,1 VGA, DC 12~24V, M12 connector, 1 HDMI IP67 Connector |
Optional Items
|
Part No. |
Description |
| APW-60M12V-01 |
12V, 60W, 5A, 5-pin M12 Connector (US) |
|
APW-60M12V-02 |
12V, 60W, 5A, 5-pin M12 Connector (EU) |
|
AKT-TOU2M12 |
M12 Connector to Touch Cable, 2m |
|
AKT-VGA2M12-M |
M12 Connector to DB15 Male Cable, 2m |
| AKT-HDMI2IP67 | IP67 Connector to HDMI Cable, 2m |
