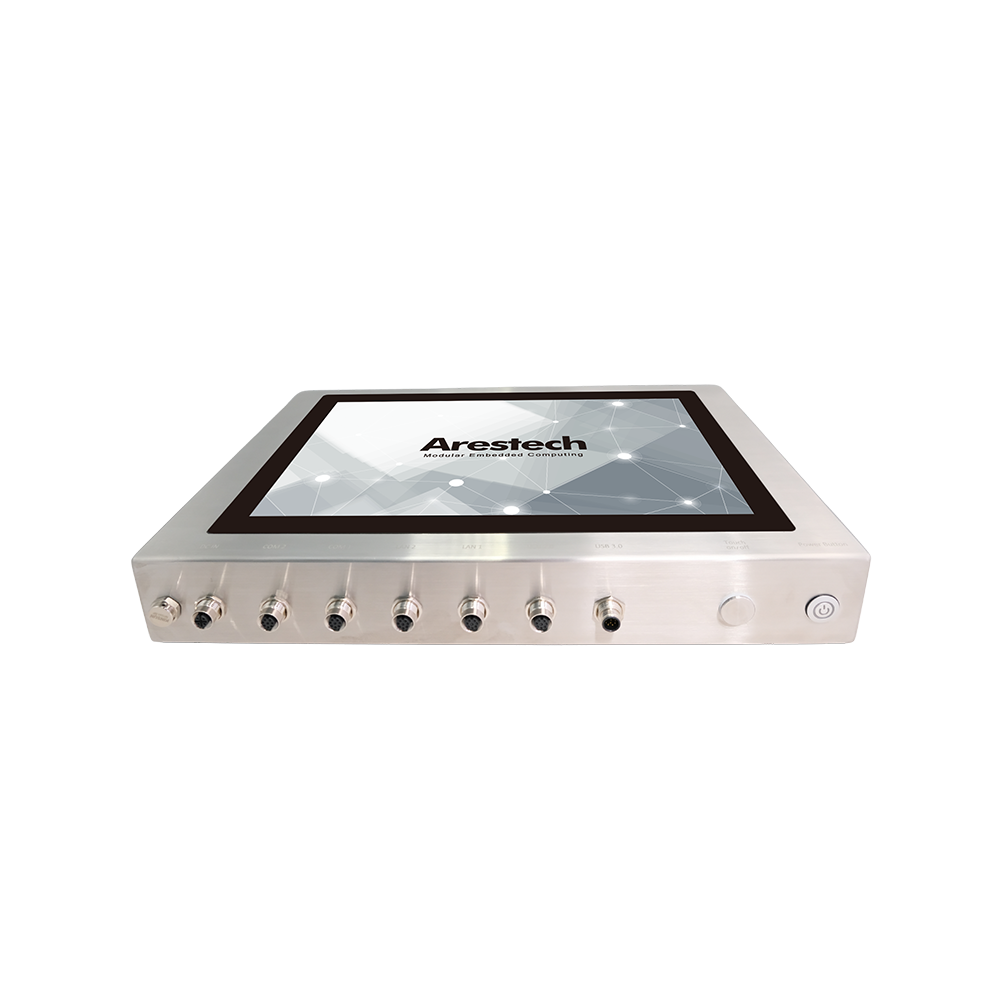

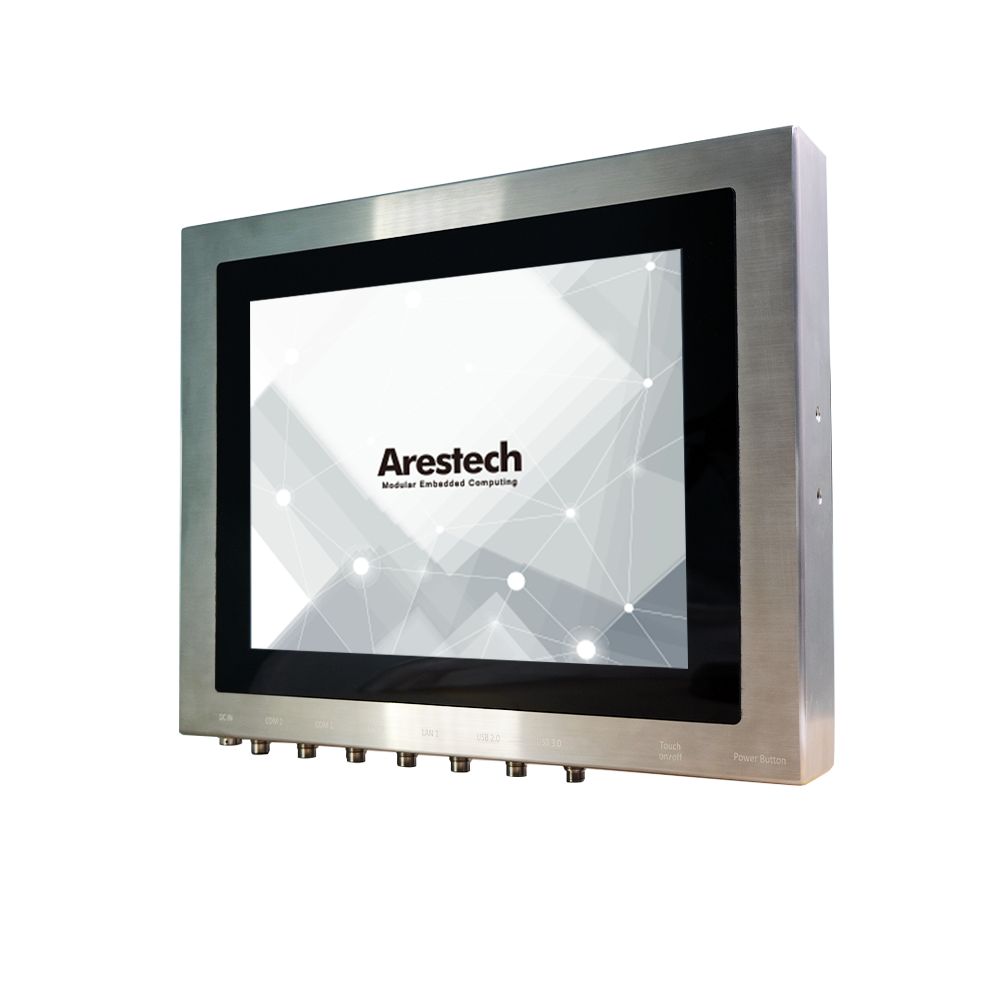

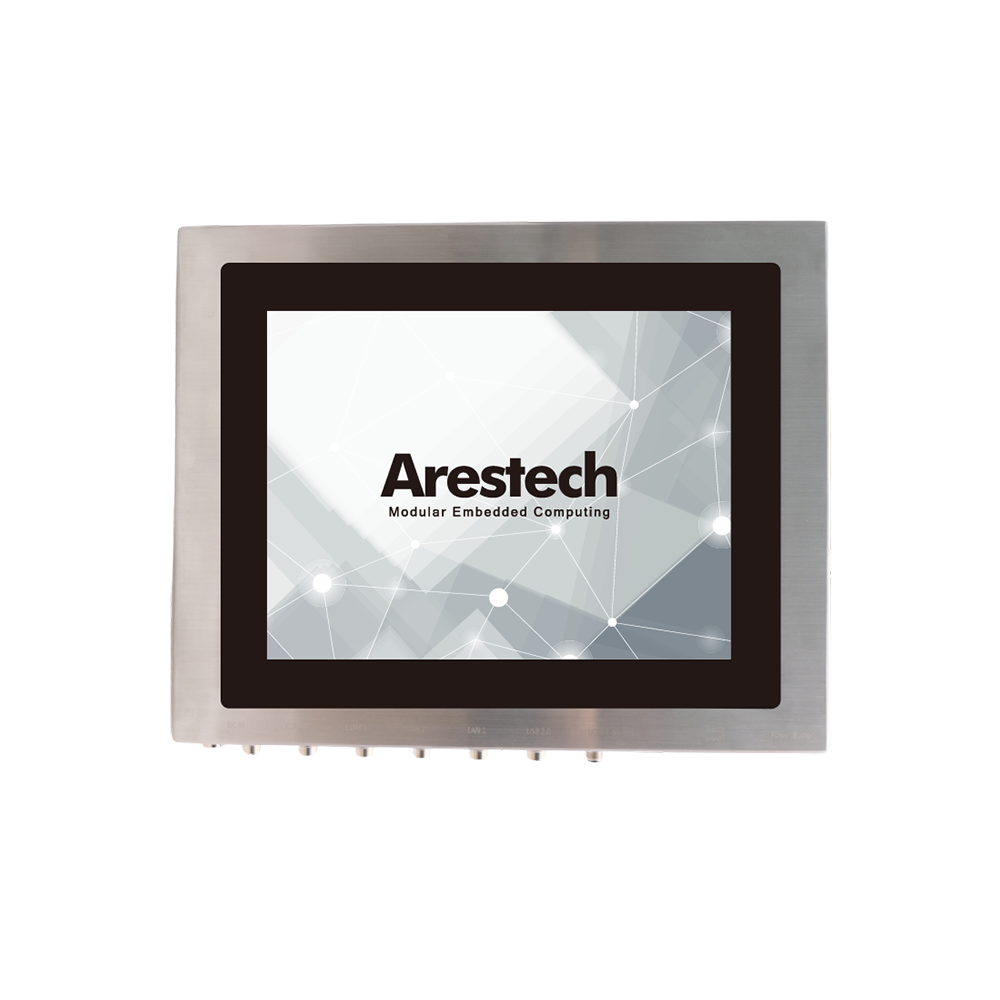

15” 1024 x 768 Resolution, 350nits Panel
Intel® Core™ i5-1235U onboard Processor
True Flat, Easy-to-clean Front Panel Design
Grade 304 Stainless Steel Enclosure (Grade 316 for option)

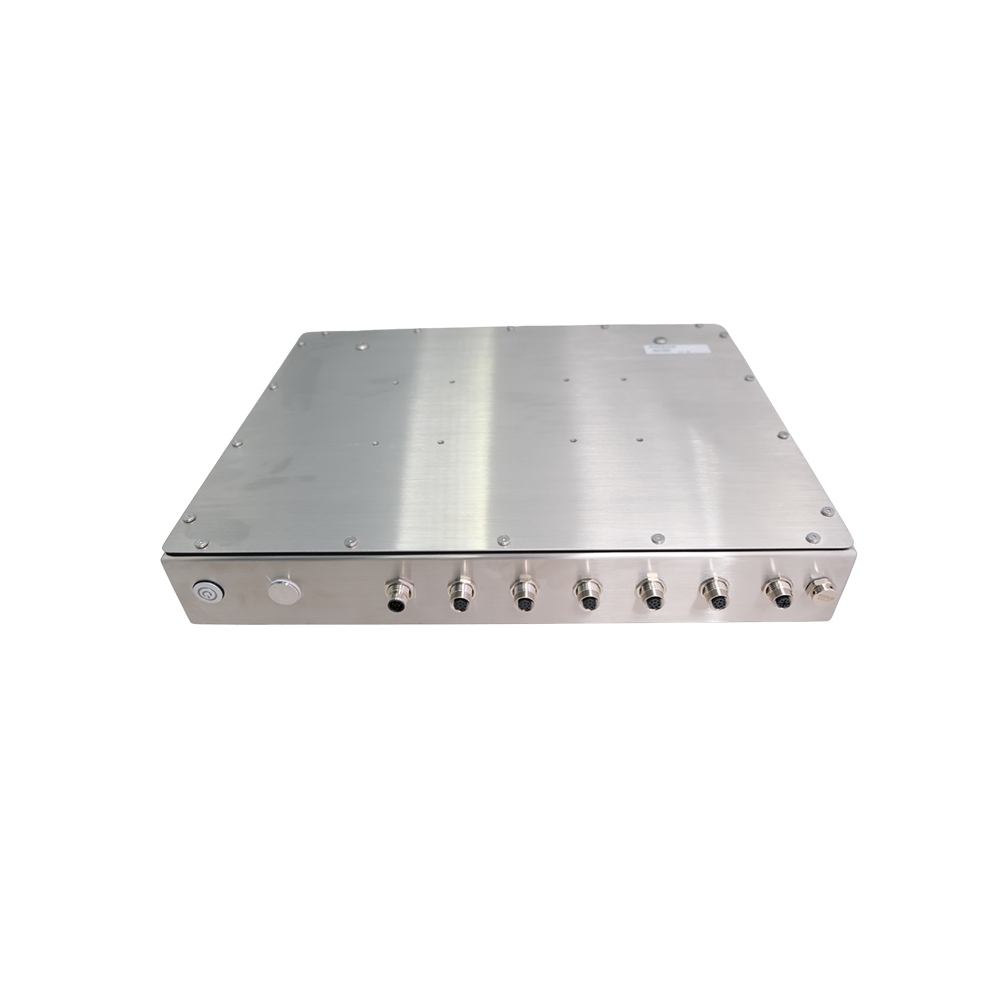

IP66/69K Rated with M12 Connectors
Support Projected Capacitive and Resistive Touchscreen
Support VESA, Yoke, and Wall Mounting
Food & Beverage Processing
Hospitality & Catering Service
Pharmaceutical Equipment
Animal Feed Production
Chemical Critical Environment
|
Model |
PPC-Z1512P |
PPC-Z1512R |
|
|
Processor System |
CPU |
Intel® Core™ i5-1235U Processor (Optional for Core™ i3-1215UE Processor) |
|
|
Frequency |
up to 4.40GHz |
||
|
BIOS |
UEFI |
||
|
TPM |
fTPM (Optional for dTPM) |
||
|
Memory |
Technology |
Dual Channel DDR4 3200MHz (un-buffered and non-ECC) |
|
|
Max. Capacity |
Support up to 64GB |
||
|
Type |
2 x 260-pin SO-DIMM |
||
|
Panel |
Panel Type |
15" XGA LCD |
|
|
Aspect Ratio |
4:3 |
||
|
Resolution |
1024 x 768 |
||
|
Brightness |
350cd/m² |
||
|
Color |
16.2M |
||
|
Contrast Ratio |
2500:1 |
||
|
Viewing Angle |
176 (H) x 176 (V) |
||
|
Backlight MTBF (typ.) |
70,000Hrs |
||
|
Touchscreen |
Touchscreen Type |
Projected Capacitive (P-CAP) |
Touchscreen |
|
Surface Hardness |
7Mohs |
3Mohs |
|
|
Transparency |
90% (±3%) |
80% (±3%) |
|
|
I/O Interface |
Ethernet |
2 x 2.5GbE (Intel® I226-V) (M12 Connector) |
|
|
Serial Port |
2 x RS232/422/485 (M12 Connector) |
||
|
USB |
2 x USB2.0 (from 1 x M12 Connector) 1 x USB3.2 Gen2 (M12 Connector) |
||
|
Audio |
N/A |
||
|
Storage |
2.5" SSD/HDD |
Internal 1 x 2.5” SSD/HDD (SATA RAID 0/1) |
|
|
M.2 |
Internal 1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA) |
||
|
Expansion |
Mini-PCIe |
1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM) |
|
|
M.2 |
1 x M.2 2280 M-Key (PCIe Gen 4x4, SATA) 1 x M.2 2230 E-Key |
||
|
Power |
Power Mode |
AT/ATX |
|
|
Power Supply Voltage |
9~36V DC Input |
||
|
Power Connector Type |
M12 Connector |
||
|
Environment |
Operating Temperature |
-10C ~ +60°C |
|
|
Storage Temperature |
-30C ~ +70°C |
||
|
Humidity |
10% ~ 95%, Non-condensing |
||
|
Vibration |
2.16Grms, 5 - 500Hz, 0.5hr/axis |
||
|
Shock |
20G, half sine, 11ms |
||
|
General |
Certification |
CE/FCC Class A |
|
|
Ingress Protection |
Full System IP66/69K |
||
|
Material |
Full SUS304 Stainless Steel (Optional SUS316) |
||
|
Mounting |
VESA (100 x 100mm) / Yoke / Wall |
||
|
Dimensions (W x H x D) |
435 x 350 x 66.5mm |
||
|
Net Weight |
7.45kg |
||
|
Operating System |
Windows 10 IoT, Windows 11 (IoT/Professional), Linux |
||
Ordering Information
Part No.
Description
PPC-Z1512P
15" 4:3 (1024 x 768) XGA, 350nits, P-CAP Touch, Full Stainless Steel 304, Intel® Core™ i5-1235U, M12 Connectors (2 x 2.5GbE, 2 x RS232/422/485, 1 x USB3.2, 1 x USB2.0 (x2), 9~36VDC)
PPC-Z1512R
15" 4:3 (1024 x 768) XGA, 350nits, 5-wire Resistive Touch, Full Stainless Steel 304, Intel® Core™ i5-1235U, M12 Connectors (2 x 2.5GbE, 2 x RS232/422/485, 1 x USB3.2, 1 x USB2.0 (x2), 9~36VDC)
Packing List
Description
1 x PPC-Z1512P/R
Optional Items
Part No.
Description
APW-120M24V-01
Adapter AC/DC 24V 5A 120W with M12 Connector (US)
APW-120M24V-02
Adapter AC/DC 24V 5A 120W with M12 Connector (EU)
AKT-USB2M12
M12 Connector to 2-port USB2.0 Cable, 2m
AKT-USB31M12
M12 Connector to USB3.0 Cable, 1.8m
AKT-COM2M12
M12 Connector to DB9 Cable, 2m
AKT-LAN2M12
M12 Connector to LAN Cable, 2m
AWD-TPM20
TPM 2.0 Module
AWD-WF006
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 IP66 Antennas (Dual Band), Half Size
AWD-WF007
Wi-Fi 802.11 b/g/n/BT4.0 (1T1R) + 1 IP66 Antenna (Dual Band), Half Size
ACS-Z150-SWM
Stainless Steel 304 Wall Mount Kits, Thickness 3m for PPC-Z15XX
ACS-Z150-SYK
Stainless Steel 304 Yoke Mount Kits, Thickness 3mm for PPC-Z15XX
