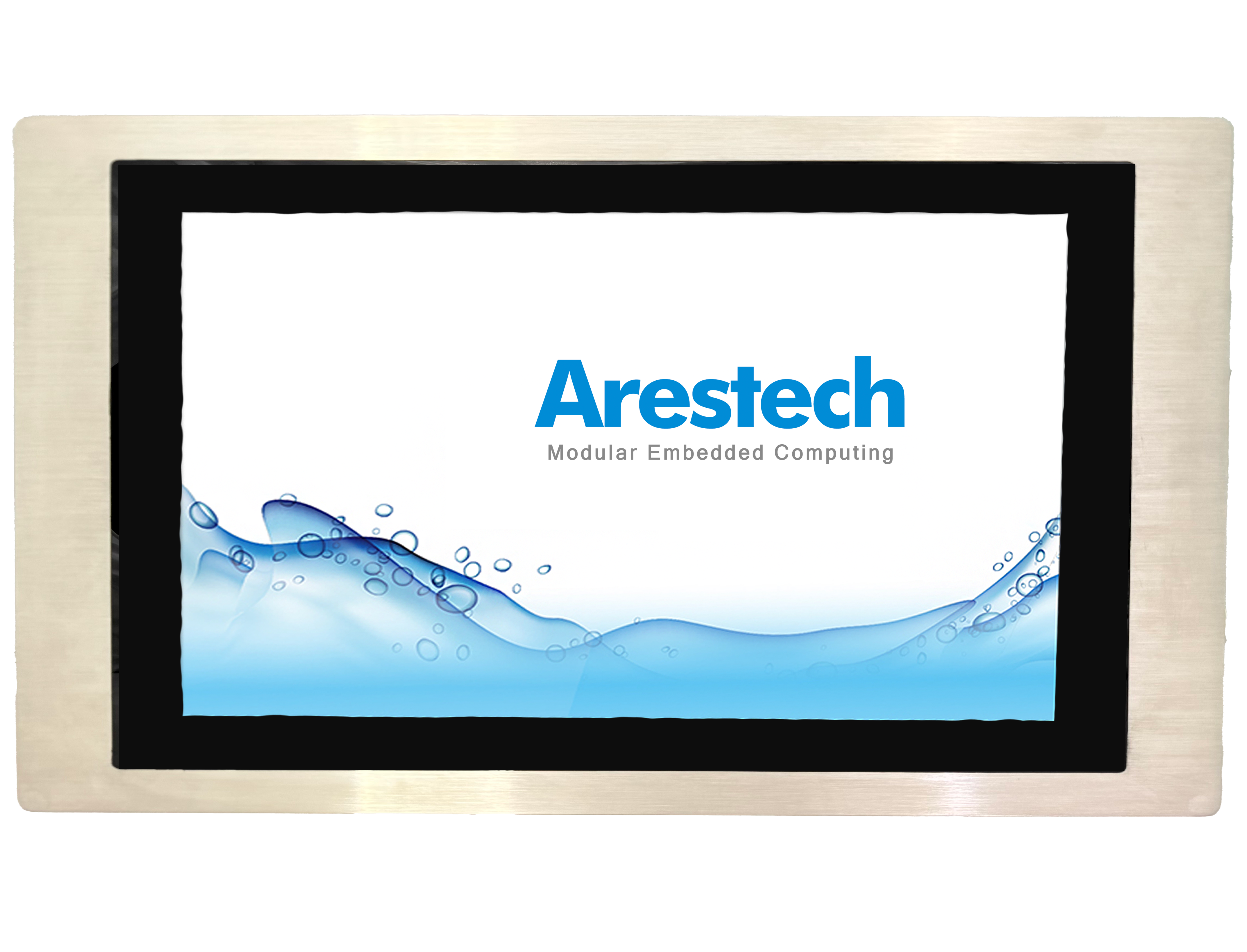

PPC-S2164

Model

PPC-S2164PW

PPC-S2164RW

Processor System

CPU

Intel® Celeron® J6412 Processor

Frequency

up to 2.60GHz

BIOS

UEFI

TPM

 fTPM

Memory

Technology

Dual Channel DDR4 3200MHz (un-buffered and non-ECC)

Max. Capacity

Support up to 32GB

Type

2 x 260-pin SO-DIMM

Panel

Panel Type

21.5" FHD LCD

Aspect Ratio

16:9

Resolution

1920 x 1080

Brightness

250cd/m²

Color

16.7M

Contrast Ratio

5000:1

Viewing Angle

178 (H) x 178 (V)

Backlight MTBF (typ.)

30,000Hrs

Touchscreen

Touchscreen Type

Projected Capacitive (P-CAP)

5-wire Resistive

Surface Hardness

7Mohs

3Mohs

Transparency

90% (±3%)

80% (±3%)

I/O Interface

 Ethernet

2 x GbE LAN Ports (Intel® I211-AT)

HDMI

2 x HDMI 2.0, Max Resolution 4096 x 2160

Serial Port

Optional for 2 x RS232/422/485

USB

4 x USB3.2 Gen1

Audio

1 x Line-out

Storage

2.5" SSD/HDD

Internal 1 x 2.5” SSD/HDD

 M.2

 Internal 1 x M.2 2280 M-Key (PCIe x2, SATA)

Expansion

Mini-PCIe

1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM)

M.2

1 x M.2 2280 M-Key (PCIe x2, SATA)

Power

Power Mode

AT/ATX

Power Supply Voltage

12~36V DC Input

Power Connector Type

1 x DC Power Connector, 1 x 2-pin Terminal Block

Environment

Operating Temperature

-20C ~ +60°C

Storage Temperature

-30C ~ +70°C

Humidity

10% ~ 95%, Non-condensing

Vibration

2.16Grms, 5 - 500Hz, 0.5hr/axis

Shock

20G, half sine, 11ms

General

Certification

CE/FCC Class A

Ingress Protection

Front Panel IP66

Material

304 Stainless Steel Front Panel (316 for option) + SECC Back Cover

Mounting

VESA (100 x 100mm) / Panel

Dimensions (W x H x D)

568 x 364 x 58.5mm

Net Weight

10kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
