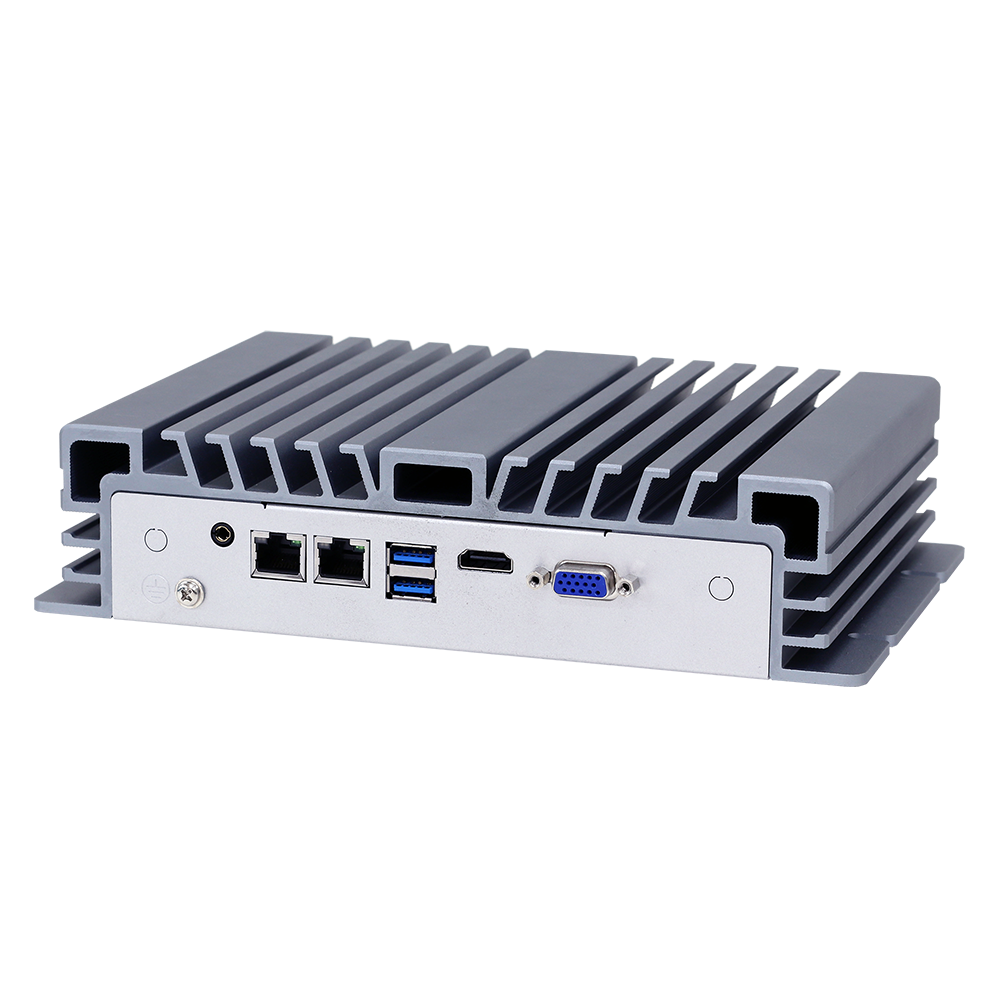

BPC-3040
Fanless Embedded Box PC with Intel® Apollo Lake Pentium® N4200 Processor, Support -20~ 70°C Operation Temperature
Embedded Box PC
BPC-3040
Features
Intel® Pentium® N4200 Processor
Support 4 COM, 6 USB or 3 COM, 4 USB and 32bit Programmable Digital I/O
Support Wide Range 9~36V DC input
Support -20~ 70°C Extended Operation Temperature
1 Mini PCIe and 1 M.2 (for LTE/3G and WLAN Module)
Applications
Embedded Control SystemsFactory Automation ApplicationsIntelligent Transportation System Machine Automation | Model | BPC-3040-1A1 | BPC-3040-2A1 |
BPC-3040-3A1 |
||||
| Processor System | CPU | Intel® Pentium® N4200 Processor | Intel® Celeron N3350 Processor | ||||
| Frequency | Quad Core, 1.1GHz, up to 2.5GHz | Dual Core 1.1GHz up to 2.4GHz | |||||
| Cache | 2 MB | ||||||
| System Chipset | N/A | ||||||
| BIOS | UEFI | ||||||
| Memory | Technology | Dual channel DDR3L 1866 MHz SDRAM | |||||
| Max. Capacity | 8 GB | ||||||
| Socket | 2 x 204-pin SO-DIMM | ||||||
| Display | Graphics Engine | Intel® HD Graphics 500 | |||||
| VGA | 1 VGA up to 1920 x 1200@60Hz; 1 HDMI up to 4096 x 2160@24Hz | ||||||
| HDMI |
HDMI 1.4b, Max Resolution Up to 3840 x 2160 @30Hz |
||||||
| Dual Display |
VGA + HDMI |
||||||
| I/O Interface | USB | 2 USB 3.0, 4 USB2.0 | 2 USB 3.0 2 USB 2.0 | 2 USB 3.0, 4 USB 2.0 | |||
| Serial Port |
3 RS-232, 1 RS-232/422/485 |
2 RS-232, 1 RS-232/422/485 | 3 RS-232, 1 RS-232/422/485 | ||||
| GPIO | 8bit GPIO (Option) |
32bit Programmable Digital Input / Output |
8bit GPIO (Option) | ||||
| Ethernet | Controller | Dual GbE, 10/100/1000 Mbps (Intel i211AT) | |||||
| Audio | Chipset | Realtek High Definition Audio (HD) | |||||
| Connectors | Line out, Mic in | ||||||
| Expansion | Mini PCIe | 1 full-size | N/A | 1 full-size | |||
| Storage | SATAII | 1 (2.5” HDD/SSD) | |||||
| M.2 | 1 M.2 2242 | ||||||
| Power | Power Type | AT / ATX | |||||
| Power Supply Voltage | 9-36 V DC input (Phoenix Connector), 6.7-1.7 A | ||||||
| Power Consumption (Typical) | |||||||
| 0.77 A @ 12 V (9.2 W) | 0.783 A @ 12 V (9.4 W) | 0.77 A @ 12 V (9.2 W) | |||||
| Power Consumption (Max) | 1.67 A @ 12 V (14 W) | 1.25 A @ 12 V (15 W) | 1.67 A @ 12 V (14 W) | ||||
| Environment | Operational | -20~70° C (-4~158° F) (Humidity: 60° C @ 80% RH Non-condensing) w/ Extended Temp. RAM & 2.5” SSD | |||||
| Non-Operational | -40~85° C (-40~ 185° F) (Humidity: 60° C @ 95% RH Non-condensing) | ||||||
| Vibration |
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” SSD) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD) |
||||||
| Shock |
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD) |
||||||
| Certificate | Certification | CE, FCC Class A | |||||
| General | Dimensions (W x H x D) | 238 x 55 x 165 mm (9.37” x 2.16” x 6.5”) | |||||
| Weight | 1.78 kg (3.921 Ib) | 1.8 kg (3.96 lb) | 1.78 kg (3.921 Ib) | ||||
| Operating System |
Windows 10 IoT, Linux |
||||||
Packing List
Description
1 x BPC-3040
1 x Power Adapter
1 x Power Cord
Ordering Information
Part No.
Description

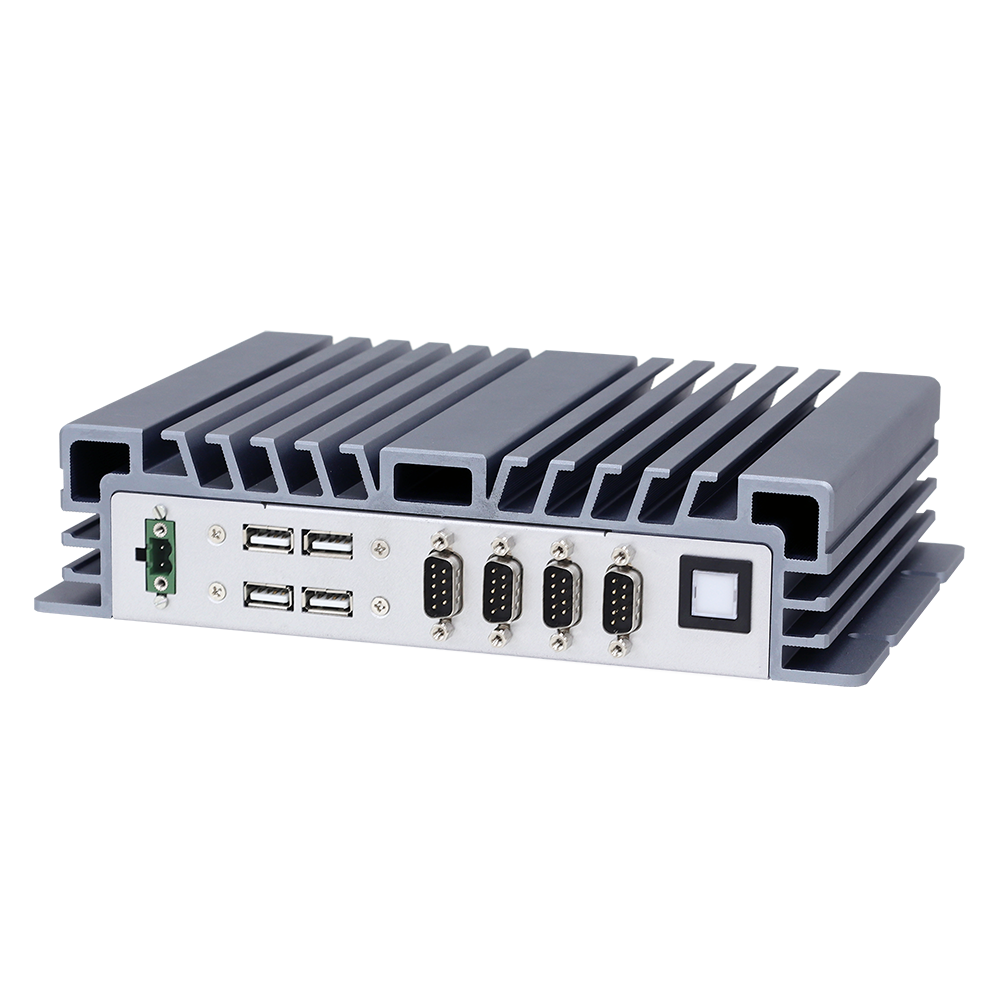

BPC-3040-1A1
Intel® Pentium N4200 2.5GHz Quad Core CPU, 2 x DDR3L memory, 2 x USB3.0, 4 x USB 2.0, 3 x RS-232, 1 x RS-232/422/485, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V

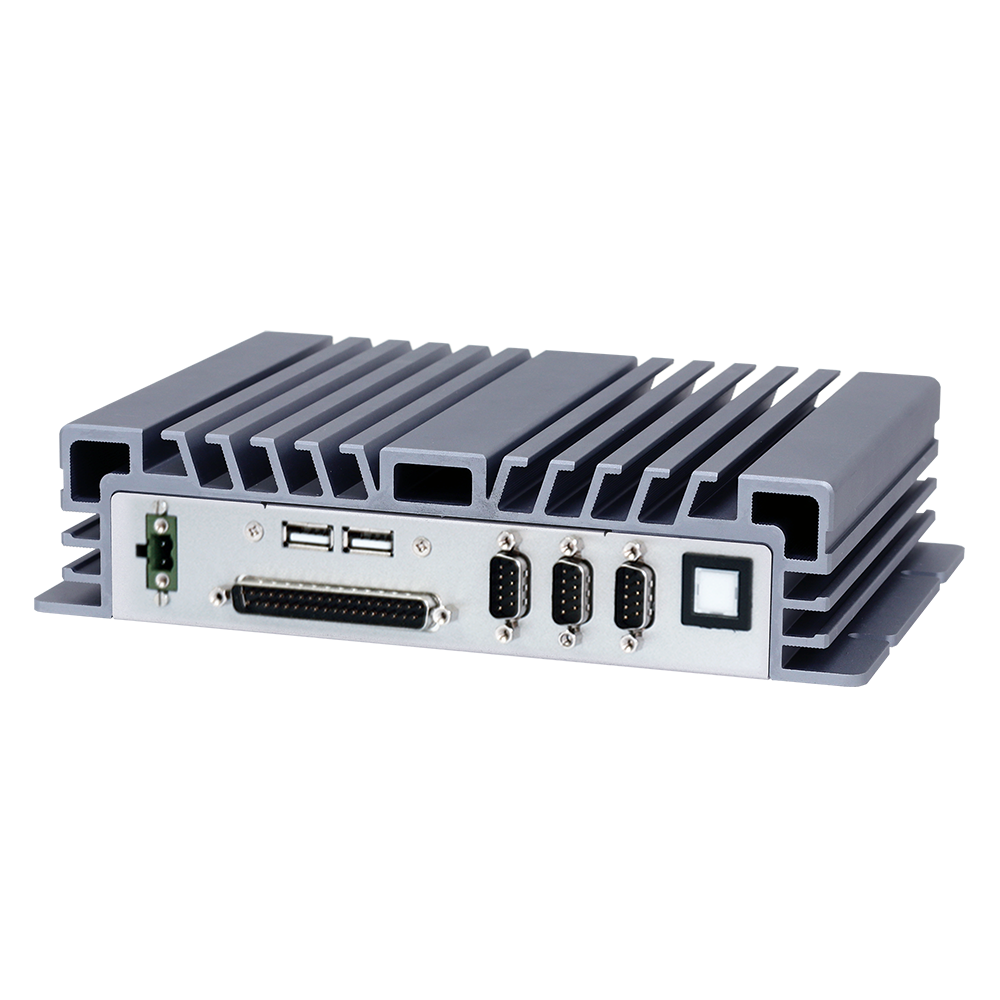

BPC-3040-2A1
Intel® Pentium N4200 2.5GHz Quad Core CPU, 2 x DDR3L memory, 2 x USB3.0, 2 x USB2.0, 2 x RS-232, 1 x RS-232/422/485, 32bit DIO, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V
BPC-3040-3A1
Intel® Celeron N3350 2.4 GHz Dual Core CPU, 2 x DDR3L memory, 2 x USB3.0, 4 x USB 2.0, 3 x RS-232, 1 x RS-232/422/485, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V
Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna, Half-size
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type
AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type
Packing List
Description
1 x BPC-3040
1 x Power Adapter
1 x Power Cord
Ordering Information
Part No.
Description
BPC-3040-1A1
Intel® Pentium N4200 2.5GHz Quad Core CPU, 2 x DDR3L memory, 2 x USB3.0, 4 x USB 2.0, 3 x RS-232, 1 x RS-232/422/485, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V
BPC-3040-2A1
Intel® Pentium N4200 2.5GHz Quad Core CPU, 2 x DDR3L memory, 2 x USB3.0, 2 x USB2.0, 2 x RS-232, 1 x RS-232/422/485, 32bit DIO, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V
BPC-3040-3A1
Intel® Celeron N3350 2.4 GHz Dual Core CPU, 2 x DDR3L memory, 2 x USB3.0, 4 x USB 2.0, 3 x RS-232, 1 x RS-232/422/485, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V
Optional Items
Part No.
Description
AWD-3G002
3G (HSPA+) Module + 1 Antenna, Full-size
AWD-4G001
4G (LTE) Module + 2 Antennas, Full-size
AWD-WF001
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna, Half-size
AWD-WF003
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size
AWD-WF004
Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type
AWD-WF005
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type
| Description |
| 1 x BPC-3040 |
| 1 x Power Adapter |
|
1 x Power Cord |
| Part No. | Description |
| BPC-3040-1A1 | Intel® Pentium N4200 2.5GHz Quad Core CPU, 2 x DDR3L memory, 2 x USB3.0, 4 x USB 2.0, 3 x RS-232, 1 x RS-232/422/485, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V |
| BPC-3040-2A1 | Intel® Pentium N4200 2.5GHz Quad Core CPU, 2 x DDR3L memory, 2 x USB3.0, 2 x USB2.0, 2 x RS-232, 1 x RS-232/422/485, 32bit DIO, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V |
| BPC-3040-3A1 | Intel® Celeron N3350 2.4 GHz Dual Core CPU, 2 x DDR3L memory, 2 x USB3.0, 4 x USB 2.0, 3 x RS-232, 1 x RS-232/422/485, 2 x GbE, line out, mic in, 1 x VGA, 1 x HDMI, DC 9~36V |
|
Part No. |
Description |
|
AWD-3G002 |
3G (HSPA+) Module + 1 Antenna, Full-size |
|
AWD-4G001 |
4G (LTE) Module + 2 Antennas, Full-size |
|
AWD-WF001 |
Wi-Fi 802.11 bgn (1T1R) + 1 Antenna, Half-size |
|
AWD-WF003 |
Wi-Fi 802.11 abgn/ac/BT4.0 (2T2R) Module + 2 Antennas (Dual band), Half-size |
|
AWD-WF004 |
Wi-Fi 802.11 b/g/n + BT4.0(1T1R) + 2 Antenna(dual band), M.2 2230 type |
|
AWD-WF005 |
Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antenna(dual band), M.2 2230 type |
