BPC-5070, Fanless Embedded Computer with 7th/6th Generation Intel® Core™ i7/i5/i3/Celeron Processor
View The Online Version
Arestech logo
BPC-5070
Fanless Embedded Computer with 7th/6th Gen. Intel® Core™ i7/i5/i3/Celeron Processor
product key features
● LGA 1151 Socket for Intel® Core™ i7/i5/i3 & Celeron Processor
● Supports up to Triple Independent Displays with 4K Resolution
● BPC-5070-1A1 Supports RAID 0/1
● Up to 2 x HDD Bays with SATA 6Gb/s Interface
● Up to 2 x Mini PCIe for Optional Wi-Fi/3G/4G/Bluetooth or I/O Expansion
● Supports 12/19-24V DC Wide-Range Power Input
● Wide Operating Temperature Range from -20°C to 60°C

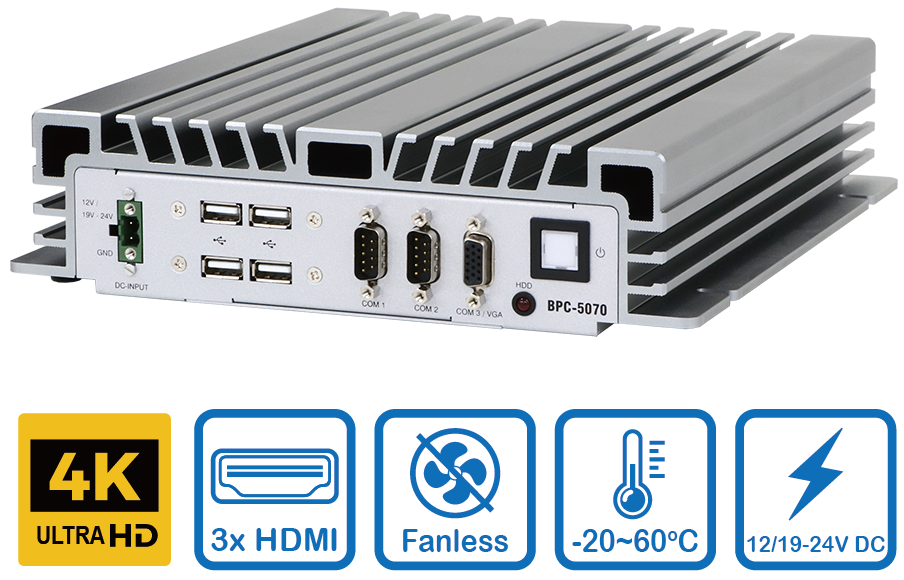

BPC-5070 product image
product io interfaces
Model: BPC-5070-1A1
BPC-5070 io interfaces
product highlights

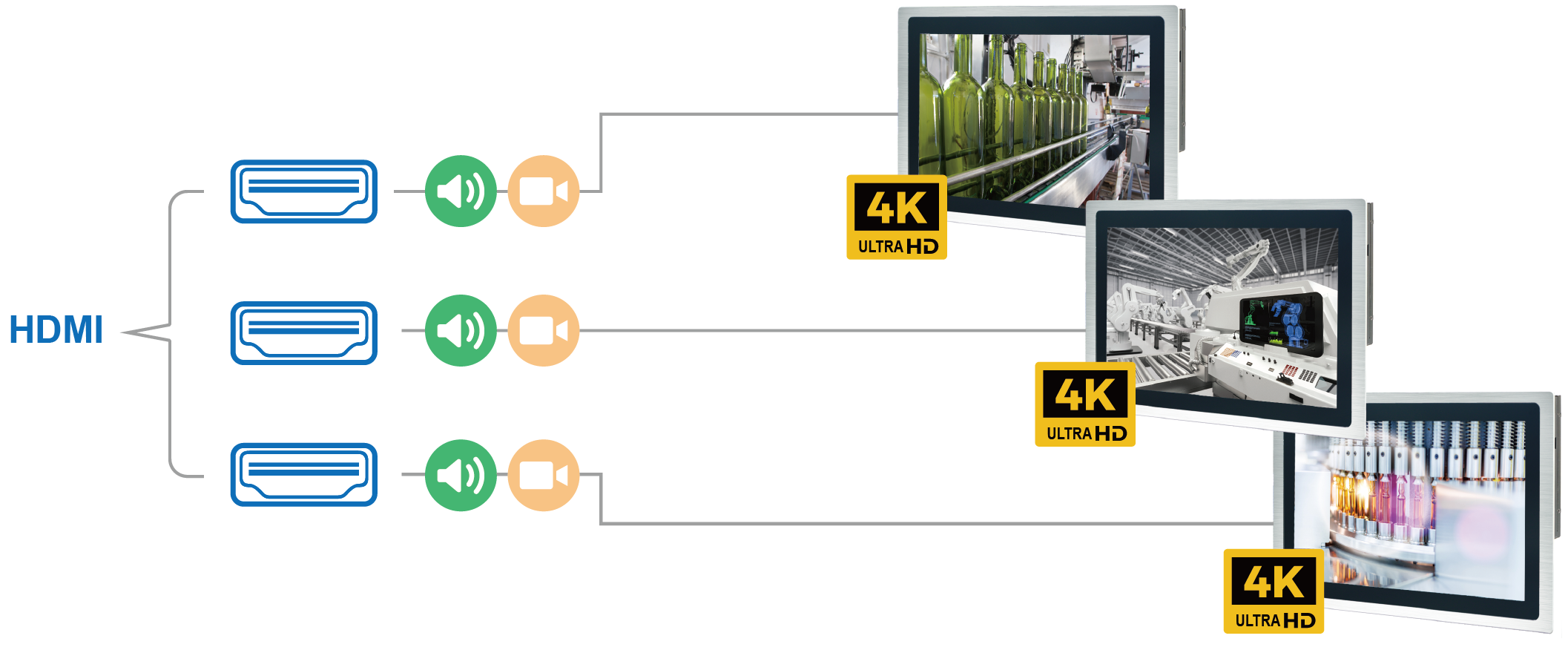

BPC-5070-1A1 can support triple independent displays simultaneously via 3x HDMI ports or 2x HDMI plus 1x VGA ports. With 3x HDMI ports, you will not only get 4K high-definition signals but also need less cabling.
BPC-5070 product highlights
Models
Model Chipset USB COM HDMI VGA mPCIe RAID 0/1
BPC-5070-1A1 Intel® Q170 x 8
4x USB 3.0
4x USB 2.0
x 2
RS 232/422/485

x 3
HDMI 1.4
Up to 4096 x 2160
  x 1
Up to 1920 x 1200

x 2
1x Full Size
1x Half Size

Supported
BPC-5070-2A1 Intel® H110 x 2
HDMI 1.4
Up to 4096 x 2160
x 1
Half Size
N/A
