MERA-3100 Series, Modular Embedded Rugged Computers with Intel® 9th / 8th LGA1151 Processor
View The Online Version
Arestech logo
MERA-3100 Series
Modular Embedded Rugged Computers with Intel® 9th / 8th LGA1151 Processor
product key features
● Abundant GbE and PoE+ Ports with RJ45 or M12 Connectors of Your         Choice. GbE Ports Support Wake-on-LAN and PXE. IEEE 802.3at PoE+       Ports Can Offer up to 25.5W DC Power to Device
● Cable-free and Jumper-less Design to Enhance Reliability
● Supports RAID 0 / 1 / 5 / 10 to Increase Performance or Provide Data           Safety (MERA-3100-3L only supports RAID 0/1)
● Supports VGA, DVI, and DP
● Multiple Storage Capability (SATA HDD, mSATA / CFast)
● 4x Full-size Mini-PCIe Sockets and 4x SIM Card Sockets
● Built-in Power Protection (OVP/OCP/RVP)
● 9 – 48V DC Wide-range Power Inputs with Power Ignition Function
● Wide Operating Temperature Range from -40°C to 70°C
MERA-3100 product image

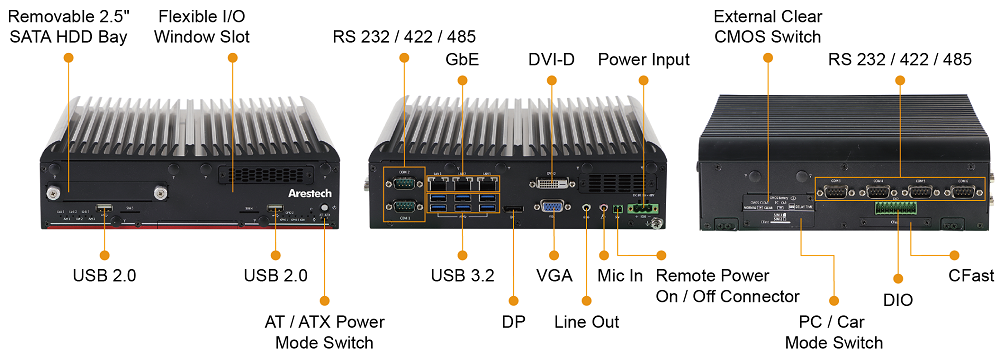

product io interfaces
Model: MERA-3100-3L
MERA-3100 io interfaces

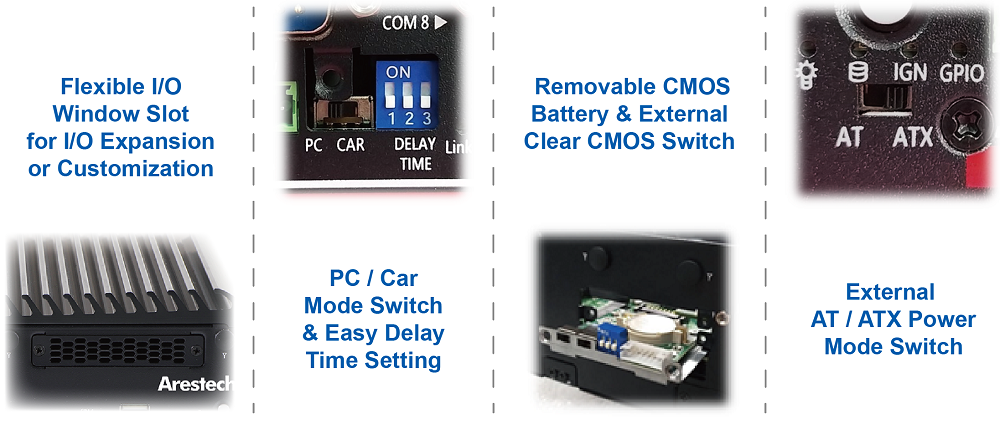

product highlights
MERA-3100 product highlights
Models
Model Processor USB COM GbE PoE+ HDD
MERA-3100-3L Intel®
9th/8th
LGA 1151
x 8
6x USB 3.2
2x USB 2.0

x 6
RS232/422/485


x 3
1x Intel® i219-LM
2x Intel® i210-AT
 N/A x 2
1x Removable
1x Internal
MERA-3110-3L x 4
Removable
MERA-3110-7L

x 7
1x Intel® i219-LM
2x Intel® i210-AT
4 x Intel® i350-AM4

MERA-3110-3L-4ML     x 3 w/RJ45
+ x 4 w/M12

1x Intel® i219-LM
2x Intel® i210-AT
4 x Intel® i350-AM4
MERA-3110-3L-4P x 3
1x Intel® i219-LM
2x Intel® i210-AT
x 4 w/RJ45
IEEE 802.3at (25.5W)
MERA-3110-3L-4MP x 4 w/M12
IEEE 802.3at (25.5W)
MERA-3110-11L x 11
1x Intel® i219-LM
2x Intel® i210-AT
8 x Intel® i350-AM4
N/A
MERA-3110-3L-8ML     x 3 w/RJ45
+ x 8 w/M12

1x Intel® i219-LM
2x Intel® i210-AT
8 x Intel® i350-AM4
MERA-3110-3L-8P x 3
1x Intel® i219-LM
2x Intel® i210-AT
x 8 w/RJ45
IEEE 802.3at (25.5W)
MERA-3110-3L-8MP x 8 w/M12
IEEE 802.3at (25.5W)
